Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG2096 |

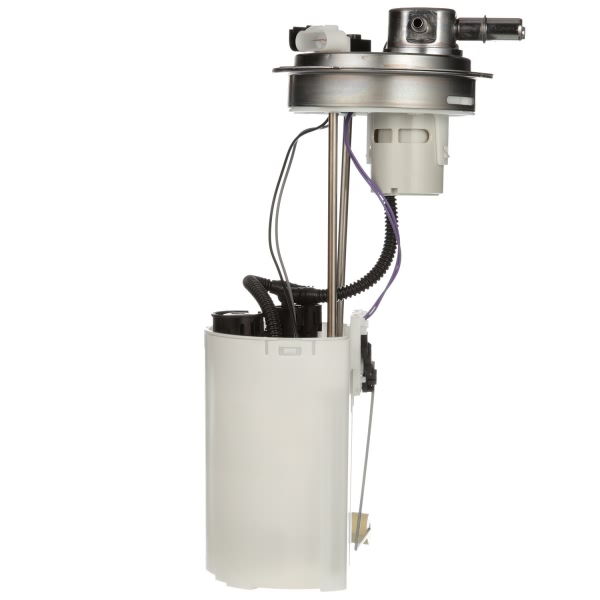

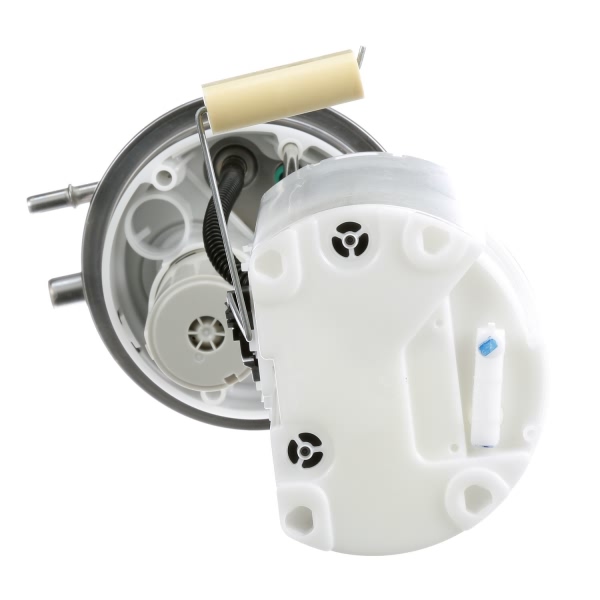

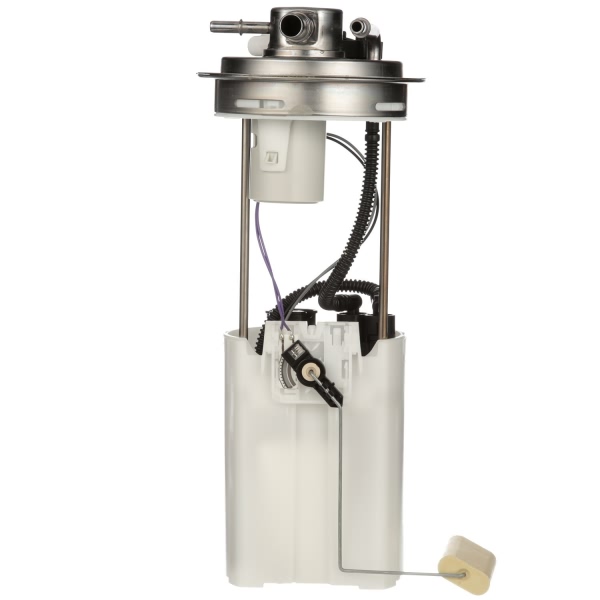

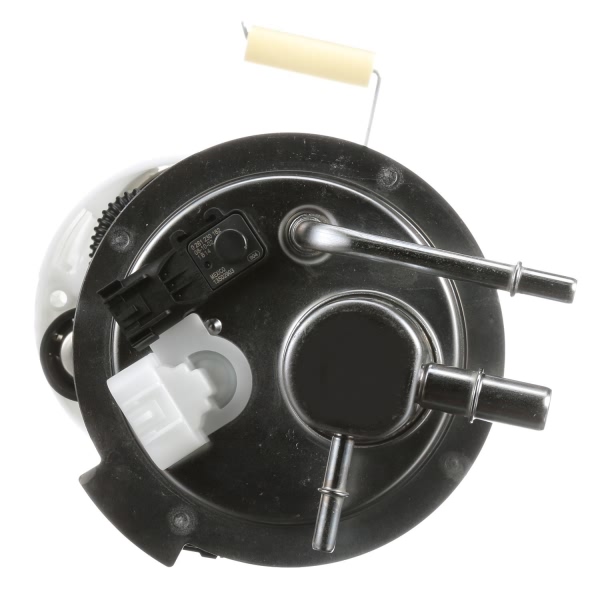

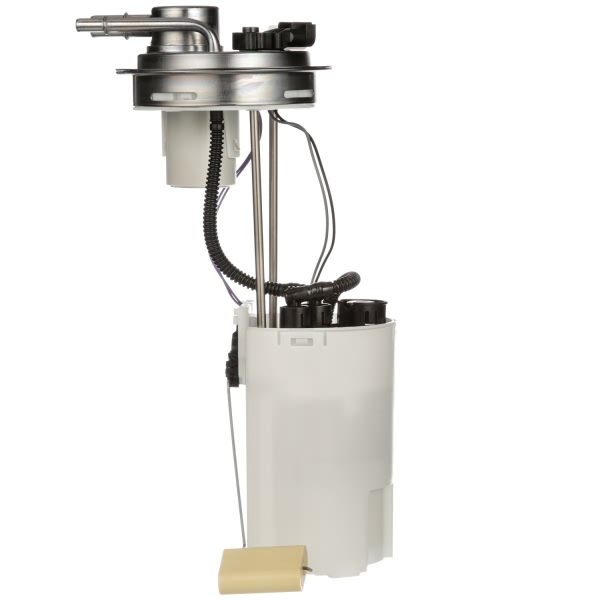

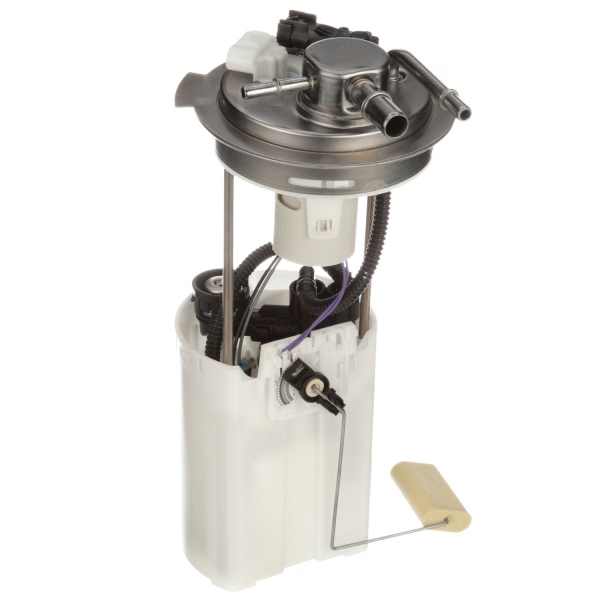

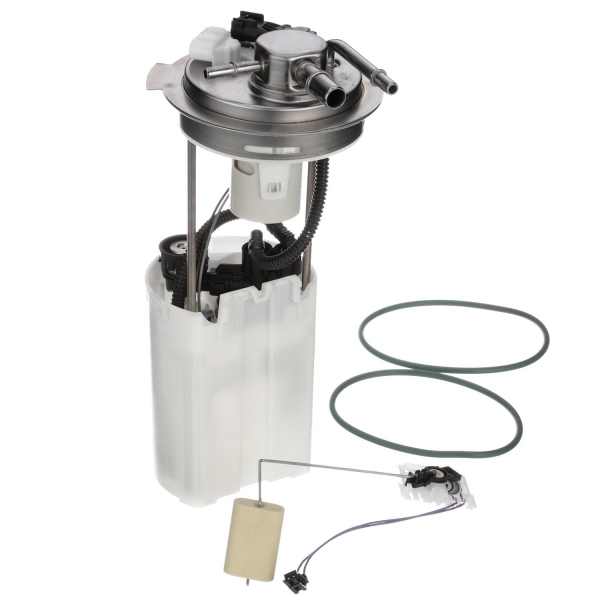

Part Description | Fuel Pump Module Assembly |
Current Draw | 11 |
Flow Rating | 37 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | Yes |
Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Maximum Pressure | 120.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 3 |
Outlet Type | Quick Connect |
Package Contents | Fuel Pump Module Assembly withFloat Arm, Seals, Instruction Sheet |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 250.0 |
Resistance Ohms Full | 40.0 |
Strainer Included | Yes |
System Pressure | 54 psi |
Terminal Gender | Male |

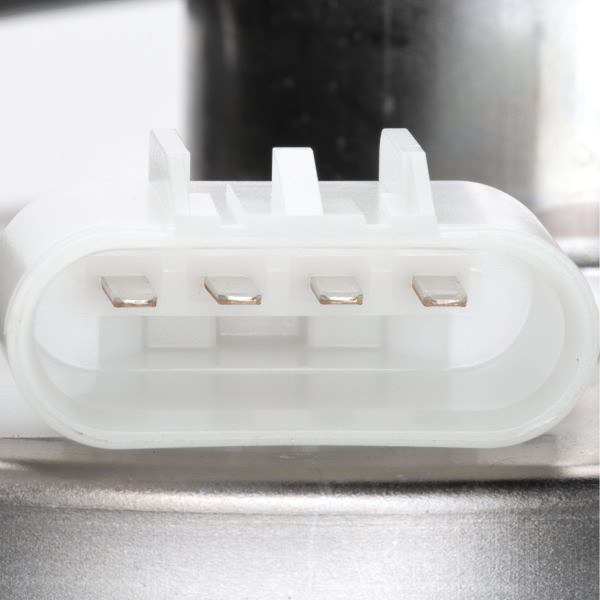

Terminal Quantity | 4 |
Terminal Type | Blade |
UPC | 689604285152 |
Vapor Pressure Sensor | Yes |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2009 Chevrolet Express 1500 | All Trims | 6 Cyl 4.3L |
2009 Chevrolet Express 2500 | All Trims | 8 Cyl 4.8L |
2009 Chevrolet Express 2500 | All Trims | 8 Cyl 6.0L |
2009 Chevrolet Express 3500 | All Trims | 8 Cyl 4.8L |
2009 Chevrolet Express 3500 | Base | 8 Cyl 6.0L |
2009 Chevrolet Express 3500 | LS | 8 Cyl 6.0L |
2009 Chevrolet Express 3500 | LT | 8 Cyl 6.0L |
2009 GMC Savana 1500 | All Trims | 6 Cyl 4.3L |
2009 GMC Savana 2500 | All Trims | 8 Cyl 4.8L |
2009 GMC Savana 2500 | All Trims | 8 Cyl 6.0L |
