OEM (Genuine) 2009 Ford Escape Fuel Pump
PartNumber: 9L8Z-9H307-C
Product Specifications- Notes: 2009; Escape, Mariner; W/Onboard Vapor Recovery
- Other Names: Fuel Pump, Fuel Pump Assembly
- Item Dimensions: 8.0 x 12.2 x 17.1 inches
- Item Weight: 3.60 Pounds
- Fitment Type: Direct Replacement
- Replaces: 9L8Z-9H307-B, 9L8Z-9H307-A
- Part Description: 2009 Ford Escape Fuel Pump
Vehicle Fitment- 2009 Ford Escape | Limited, XLS, XLT | 4 Cyl 2.5 L GAS, 6 Cyl 3.0 L GAS
$234.34 MSRP:$390.91You Save: $156.57 (41%)
Delphi® Fuel Pump Module Assembly for 2009 Ford Escape
PartNumber: FG1318Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 11
- Flow Rating: 20 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Flex
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Maximum Pressure: 78.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 2
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: No
- Resistance Ohms Empty: 180.0
- Resistance Ohms Full: 10.0
- Strainer Included: Yes
- System Pressure: 58 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604232842
- Vapor Pressure Sensor: No
- Voltage: 12.0 VDC
- Part Description: 2009 Ford Escape Fuel Pump Module Assembly
Vehicle Fitment- 2009 Ford Escape | All Trims | 4 Cyl 2.5L
- 2009 Ford Escape | All Trims | 6 Cyl 3.0L
$189.19
Autobest® Fuel Pump Module Assembly for 2009 Ford Escape
PartNumber: F1530AProduct Specifications- Notes: Includes Fuel Pump, Fuel Pressure Regulator, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal,XLT,GAS;Includes Fuel Pump, Fuel Pressure Regulator, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal,XLS,GAS;Includes Fuel Pump, Fuel Pressure Regulator, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal,Limited,GAS;Includes Fuel Pump, Fuel Pressure Regulator, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal,GAS
- Average Current Draw(A): 11
- Average Flow Rating(GPH): 47
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Rectangle
- Country of Orign: China
- Fuel Filter Included: Yes
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: No
- Gasket or Seal Included: Yes
- Gasket Or Seal Material: NBR
- Grade Type: Performance
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Size: 0.314
- Inlet Type: Strainer
- Installation Warnings: No
- Internal Or External Strainer: Internal
- Lock Ring Included: No
- Maximum Pump Pressure (PSI): 60
- Minimum Pump Pressure (PSI): 60
- Negative Ground: Yes
- Outlet Quantity: 1
- Outlet Size: 3/8
- Outlet Type: Quick Connect
- Product Height (in): 6.65
- Product Length (in): 12.99
- Product Width (in): 8.58
- Pump Type: Turbine
- Regulator Included: Yes
- Resistance Ohms Empty: 10.5
- Resistance Ohms Full: 181
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: PIN
- UPC: 00072845115300
- Voltage: 12V
- Weight (lbs): 2.73
- Wire Harness Included: No
- Part Description: 2009 Ford Escape Fuel Pump Module Assembly
Vehicle Fitment- 2009 Ford Escape | Limited | 4 Cyl 2.5L
- 2009 Ford Escape | XLS | 4 Cyl 2.5L
- 2009 Ford Escape | XLT | 4 Cyl 2.5L
- 2009 Ford Escape | All Trims | 6 Cyl 3.0L
$104.95
OEM (Genuine) 2009 Ford Escape Fuel Pump
PartNumber: 9M6Z-9H307-C
Product Specifications- Notes: Escape, Mariner; 2009, From 8/14/08;2009, To 8/13/08
- Other Names: Fuel Pump, Fuel Pump Assembly
- Item Dimensions: 9.4 x 14.3 x 17.4 inches
- Item Weight: 3.80 Pounds
- Fitment Type: Direct Replacement
- Replaces: 9M6Z-9H307-B, 9M6Z-9H307-A, PFS-477
- Part Description: 2009 Ford Escape Fuel Pump
Vehicle Fitment- 2009 Ford Escape | Hybrid, Limited Hybrid | 4 Cyl 2.5 L ELECTRIC/GAS
$255.35 MSRP:$414.55You Save: $159.20 (39%)
Delphi® Fuel Pump Module Assembly for 2009 Ford Escape
PartNumber: FG1317Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 11
- Flow Rating: 20 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Maximum Pressure: 78.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 2
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: No
- Resistance Ohms Empty: 180.0
- Resistance Ohms Full: 10.0
- Strainer Included: Yes
- System Pressure: 51 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604232835
- Vapor Pressure Sensor: No
- Voltage: 12.0 VDC
- Part Description: 2009 Ford Escape Fuel Pump Module Assembly
Vehicle Fitment- 2009 Ford Escape | All Trims | 4 Cyl 2.5L
$167.65

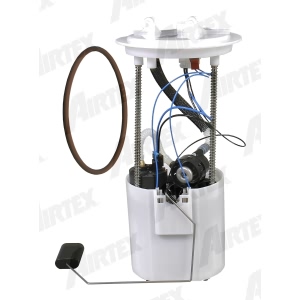

Airtex® Fuel Pump Module Assembly for 2009 Ford Escape
PartNumber: E2524MProduct Specifications- Gasket or Seal Included: Yes
- Inlet Count: 1
- Inlet Type: STRAINER
- Internal or External: Internal
- Item Grade: STANDARD REPLACEMENT
- Maximum Free Flow Rate (gph): 70
- Maximum Pressure (psi): 65
- Minimum Free Flow Rate (gph): 60
- Minimum Pressure (psi): 55
- Outlet Count: 1
- Outlet Size: 3/8"
- Outlet Type: QUICK CONNECT
- Package Contents: PUMP & KIT
- Package Quantity: 1
- Pump Type: Electrical
- UPC: 080044055617
- Wiring Harness Included: No
- Part Description: 2009 Ford Escape Fuel Pump Module Assembly
Vehicle Fitment- 2009 Ford Escape | All Trims | 4 Cyl 2.5L
Airtex® In-Tank Fuel Pump Module Assembly for 2009 Ford Escape
PartNumber: E2529MProduct Specifications- Gasket or Seal Included: Yes
- Inlet Count: 1
- Inlet Type: STRAINER
- Internal or External: Internal
- Item Grade: STANDARD REPLACEMENT
- Maximum Free Flow Rate (gph): 70
- Maximum Pressure (psi): 60
- Minimum Free Flow Rate (gph): 60
- Minimum Pressure (psi): 60
- Outlet Count: 1
- Outlet Size: 3/8
- Outlet Type: QUICK CONNECT
- Package Contents: PUMP & KIT
- Package Quantity: 1
- Pump Type: Electrical
- UPC: 080044000150
- Voltage [V]: 12V
- Wiring Harness Included: No
- Part Description: 2009 Ford Escape In-Tank Fuel Pump Module Assembly
Vehicle Fitment- 2009 Ford Escape | All Trims | 4 Cyl 2.5L
- 2009 Ford Escape | All Trims | 6 Cyl 3.0L
Autobest® Fuel Pump Module Assembly for 2009 Ford Escape
PartNumber: F1535AProduct Specifications- Notes: Includes Fuel Pump, Fuel Pressure Regulator, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal
- Average Current Draw(A): 11.5
- Average Flow Rating(GPH): 18.3
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Rectangle
- Country of Orign: China
- Fuel Filter Included: Yes
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: Yes
- Gasket or Seal Included: Yes
- Gasket Or Seal Material: NBR
- Grade Type: Performance
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Size: 0.314
- Inlet Type: Strainer
- Installation Warnings: No
- Internal Or External Strainer: Internal
- Lock Ring Included: No
- Maximum Pump Pressure (PSI): 65
- Minimum Pump Pressure (PSI): 55
- Negative Ground: Yes
- Outlet Quantity: 1
- Outlet Size: 3/8
- Outlet Type: Quick Connect
- Product Height (in): 6.65
- Product Length (in): 12.99
- Product Width (in): 8.58
- Pump Type: Turbine
- Regulator Included: Yes
- Resistance Ohms Empty: 40
- Resistance Ohms Full: 250
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: PIN
- UPC: 00072845115355
- Voltage: 12V
- Weight (lbs): 2.63
- Wire Harness Included: No
- Part Description: 2009 Ford Escape Fuel Pump Module Assembly
Vehicle Fitment- 2009 Ford Escape | Hybrid | 4 Cyl 2.5L
- 2009 Ford Escape | Limited Hybrid | 4 Cyl 2.5L
