Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG1317 |

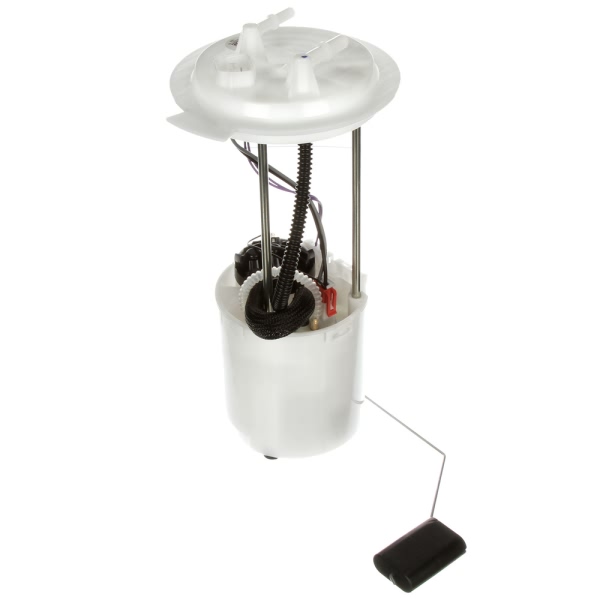

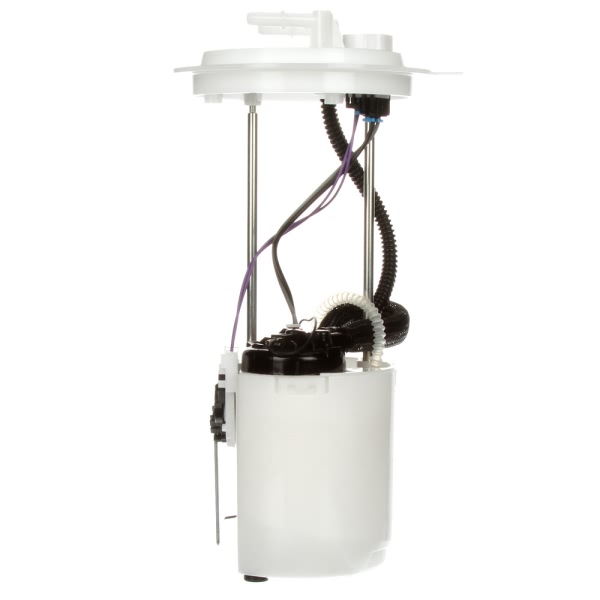

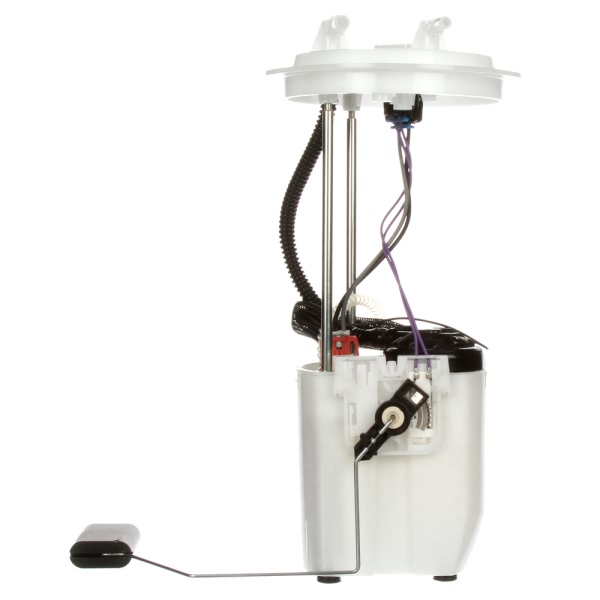

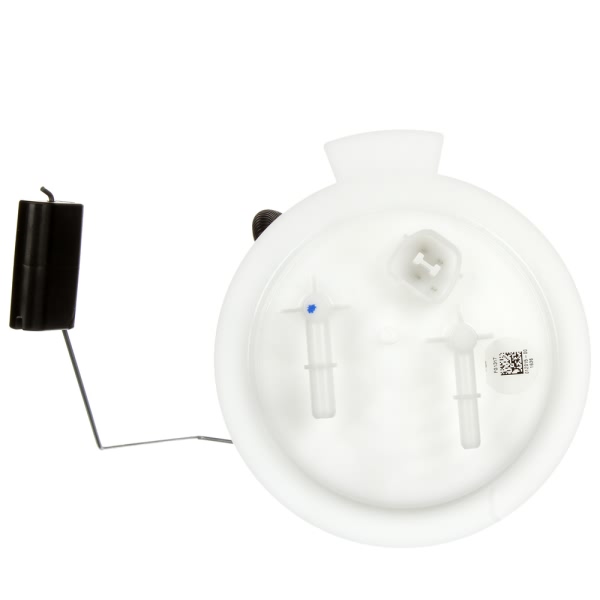

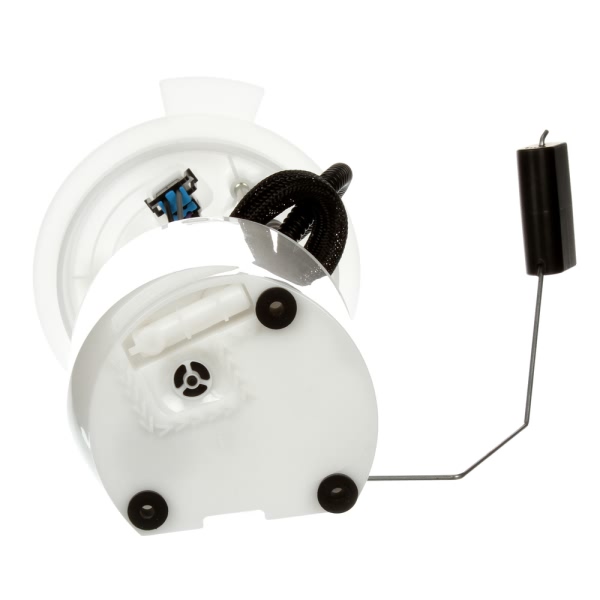

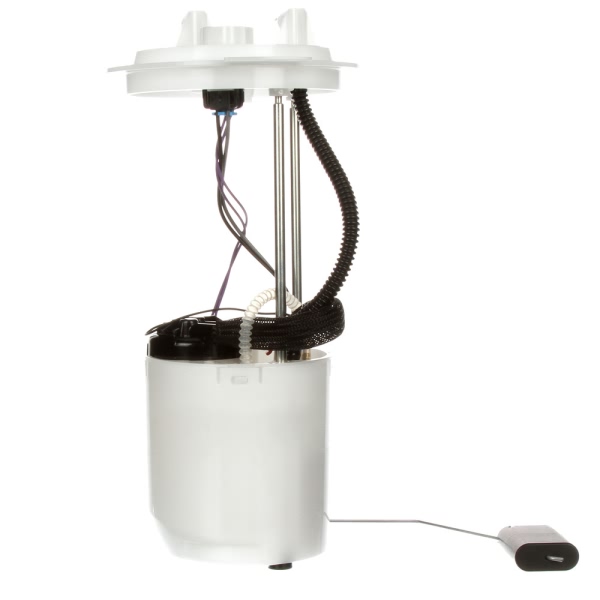

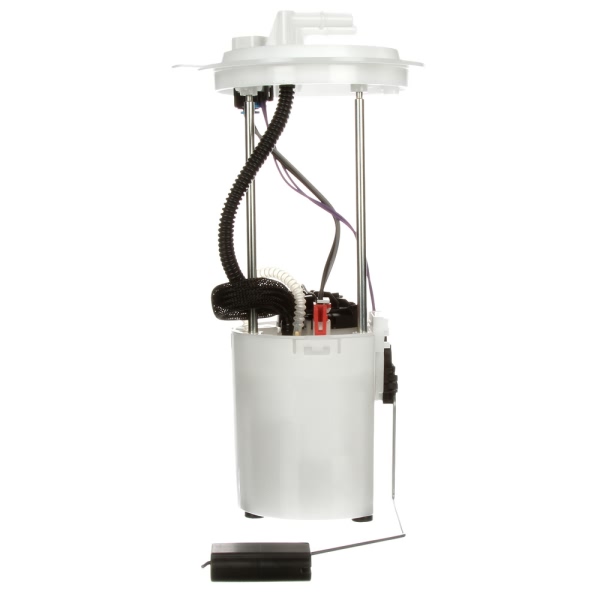

Part Description | Fuel Pump Module Assembly |
Current Draw | 11 |
Flow Rating | 20 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | Yes |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Maximum Pressure | 78.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 2 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | No |
Resistance Ohms Empty | 180.0 |
Resistance Ohms Full | 10.0 |
Strainer Included | Yes |
System Pressure | 51 psi |
Terminal Gender | Male |

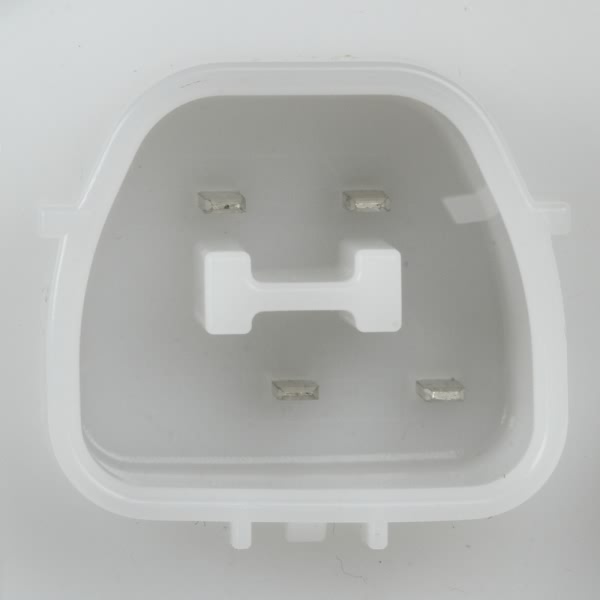

Terminal Quantity | 4 |
Terminal Type | Blade |
UPC | 689604232835 |
Vapor Pressure Sensor | No |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2009-2012 Ford Escape | All Trims | 4 Cyl 2.5L |
2009 Mazda Tribute | All Trims | 4 Cyl 2.5L |
2009-2011 Mercury Mariner | All Trims | 4 Cyl 2.5L |
