OEM (Genuine) 2005 Toyota Sienna Fuel Pump
PartNumber: 77020-08031
Product Specifications- Other Names: Fuel Pump, Fuel Pump Assembly
- Item Dimensions: 16.4 x 10.7 x 7.9 inches
- Item Weight: 3.60 Pounds
- Fitment Type: Direct Replacement
- Replaces: 77020-08030
- Part Description: 2005 Toyota Sienna Fuel Pump
Vehicle Fitment- 2005 Toyota Sienna | CE, LE, Limited, XLE, XLE Limited | 6 Cyl 3.3 L GAS
$445.31 MSRP:$656.67You Save: $211.36 (33%)
Delphi® Fuel Pump Module Assembly for 2005 Toyota Sienna
PartNumber: FG1381Product Specifications- Notes: without Pressure Sensor;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 11
- Flow Rating: 20 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Maximum Pressure: 80.0 PSI
- Outlet Outside Diameter: 0.313''
- Outlet Quantity: 1
- Outlet Type: Push''
- Pump Type: Electric
- Regulator Included: Yes
- Resistance Ohms Empty: 110.0
- Resistance Ohms Full: 5.0
- Strainer Included: Yes
- System Pressure: 51 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604236680
- Vapor Pressure Sensor: No
- Voltage: 12.0 VDC
- Part Description: 2005 Toyota Sienna Fuel Pump Module Assembly
Vehicle Fitment- 2005 Toyota Sienna | All Trims | 6 Cyl 3.3L
$336.91
Autobest® Electric Fuel Pump for 2005 Toyota Sienna
PartNumber: F4524Product Specifications- Notes: Strainer required to validate the warranty: F344S
- Average Current Draw(A): 5.3
- Average Flow Rating(GPH): 115
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Rectangle
- Country of Orign: China
- Gasket or Seal Included: No
- Grade Type: Performance
- In Tank or External: In Tank
- Inlet Size: 0.433
- Inlet Type: Filter
- Installation Warnings: No
- Internal Or External Strainer: External
- Maximum Pump Pressure (PSI): 123.25
- Minimum Pump Pressure (PSI): 79.8
- Outlet Quantity: 1
- Outlet Size: 0.36
- Outlet Type: Male tube / 1 barb
- Product Height (in): 1.5
- Product Length (in): 4.57
- Product Width (in): 1.5
- Pump Type: Turbine
- Regulator Included: No
- Terminal Gender: Male
- Terminal Quantity: 2
- Terminal Type: Inserts
- UPC: 00072845145246
- Voltage: 12V
- Weight (lbs): 0.72
- Part Description: 2005 Toyota Sienna Electric Fuel Pump
Vehicle Fitment- 2005 Toyota Sienna | All Trims | 6 Cyl 3.3L
$29.58
Denso® Fuel Pump And Strainer Set for 2005 Toyota Sienna
PartNumber: 950-0224Product Specifications- Notes: DENSO Mfg. OE / OES Replacement Fuel Pump & Strainer Kit;DENSO OE Replacement Fuel Pump & Strainer Kit
- Fuel Pump Type: Electrical
- Gaskets Included: No
- Internet Product Code (IPC): E32278F23BE
- Item Grade: Premium Replacement
- Item has MSDS (SDS): Y
- MFG Brand Name: DENSO Auto Parts
- MFG Model # (Series): 950-0224
- MFG Name: DENSO
- Package Contents: Fuel Pump Kit
- Pump Placement: In Tank
- Strainer Fitting Diameter: 0.43
- Strainer Length: 65.0
- Strainer Width: 77.00
- Supplier Company Name: DENSO
- UPC: 042511176065
- Part Description: 2005 Toyota Sienna Fuel Pump And Strainer Set
Vehicle Fitment- 2005 Toyota Sienna | All Trims | 6 Cyl 3.3L

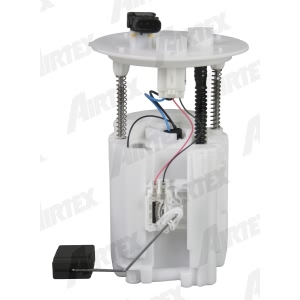

Airtex® Fuel Pump Module Assembly for 2005 Toyota Sienna
PartNumber: E8841MProduct Specifications- Notes: Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir & Fuel Strainer
- Gasket or Seal Included: No
- Inlet Attachment: Strainer
- Inlet Type: STRAINER
- Internal or External: Internal
- Internet Product Code (IPC): EA319284A7E
- Item Grade: OEM Standard
- Item has MSDS (SDS): No
- Maximum Pressure (psi): 95
- MFG Brand Name: Airtex Products
- MFG Model # (Series): E8841M
- Minimum Pressure (psi): 85
- Outlet Attachment: Quick Connect
- Outlet Type: QUICK CONNECT
- Package Contents: PUMP & KIT
- Package Quantity: 1
- Pump Type: Electrical
- Supplier Company Name: Airtex Products
- UPC: 080044034421
- Wiring Harness Included: No
- Part Description: 2005 Toyota Sienna Fuel Pump Module Assembly
Vehicle Fitment- 2005 Toyota Sienna | All Trims | 6 Cyl 3.3L
OEM (Genuine) 2005 Toyota Sienna Fuel Pump
PartNumber: 23221-0A050
Product Specifications- Other Names: Fuel Pump
- Item Dimensions: 16.6 x 14.1 x 7.0 inches
- Item Weight: 3.90 Pounds
- Part Description: 2005 Toyota Sienna Fuel Pump
Vehicle Fitment- 2005 Toyota Sienna | CE, LE, Limited, XLE, XLE Limited | 6 Cyl 3.3 L GAS
Denso® Fuel Pump for 2005 Toyota Sienna
PartNumber: 951-0023Product Specifications- Notes: DENSO OE Replacement Fuel Pump
- Gasket or Seal Included: No
- Inlet Outside Diameter: 0.476''
- Internal or External: Internal
- Mounting Bracket Included: No
- Mounting Hardware Included: YES
- Negative Ground: Yes
- New or Remanufactured: NEW
- Outlet Quantity: 1
- Regulator Included: No
- Seal And Lock Ring Included: No
- Strainer Included: No
- UPC: 042511176225
- Voltage: 12 VDC
- Part Description: 2005 Toyota Sienna Fuel Pump
Vehicle Fitment- 2005 Toyota Sienna | All Trims | 6 Cyl 3.3L
