Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F4524 |

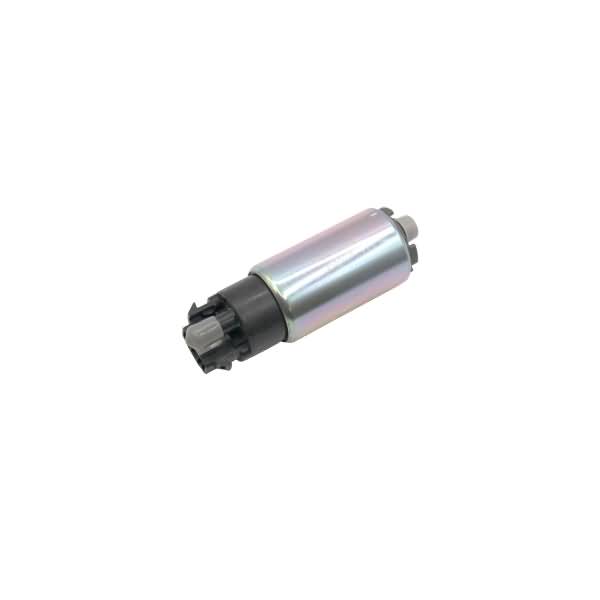

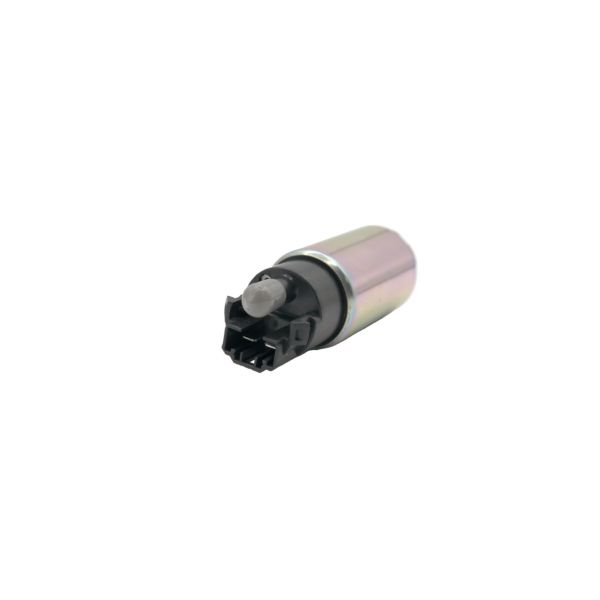

Part Description | Electric Fuel Pump |
Average Current Draw(A) | 5.3 |
Average Flow Rating(GPH) | 115 |
Connector Gender | Male |
Connector Quantity | 1 |
Connector Shape | Rectangle |
Country of Orign | China |
Fuel Type | Turbine |
Gasket or Seal Included | No |
Grade Type | Performance |
In Tank or External | In Tank |
Inlet Size | 0.433 |
Inlet Type | Filter |
Installation Warnings | No |
Internal or External | Internal |
Internal Or External Strainer | External |
Maximum Free Flow (GPH) | 60 |
Maximum Pump Pressure (PSI) | 123.25 |
Minimum Free Flow (GPH) | 50 |
Minimum Pump Pressure (PSI) | 79.8 |
Outlet Quantity | 1 |
Outlet Size | 0.36 |
Outlet Type | Male tube / 1 barb |
Product Height (in) | 1.5 |
Product Length (in) | 4.57 |
Product Width (in) | 1.5 |
Pump Type | Turbine |
Regulator Included | No |
Terminal Gender | Male |
Terminal Quantity | 2 |
Terminal Type | Inserts |
UPC | 00072845145246 |
Voltage | 12V |
Weight (lbs) | 0.72 |
Year Make Model | Trim | Engine |
---|---|---|
2003-2004 Acura MDX | All Trims | 6 Cyl 3.5L |
2004-2008 Acura TL | All Trims | 6 Cyl 3.2L |
2004-2008 Acura TSX | All Trims | 4 Cyl 2.4L |
2003-2007 Honda Accord | All Trims | 6 Cyl 3.0L |
2007 Honda Accord | All Trims | 4 Cyl 2.4L |
2006-2011 Honda Civic | All Trims | 4 Cyl 2.0L |
2006-2014 Honda Ridgeline | All Trims | 6 Cyl 3.5L |
2004-2006 Lexus RX330 | All Trims | 6 Cyl 3.3L |
2005-2009 Subaru Legacy | All Trims | 4 Cyl 2.5L |
2008-2009 Subaru Legacy | All Trims | 6 Cyl 3.0L |
