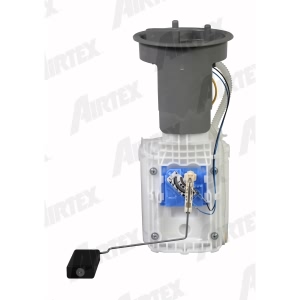

Airtex® In-Tank Fuel Pump Module Assembly for 2004 Volkswagen Passat
PartNumber: E8368MProduct Specifications- Gasket or Seal Included: Yes
- Inlet Attachment: Inlet-Strainer
- Inlet Type: STRAINER
- Internal or External: Internal
- Internet Product Code (IPC): 75D6D2630D7
- Item Grade: OEM Standard Part
- Item has MSDS (SDS): No
- Maximum Pressure (psi): 110
- MFG Brand Name: Airtex Products
- MFG Model # (Series): E8368M
- Minimum Pressure (psi): 90
- Outlet Attachment: Outlet-HoseBarb
- Outlet Size: 3/8
- Outlet Type: HOSE BARB
- Package Contents: Fuel Pump Module Assembly
- Package Quantity: 1
- Pump Type: Electrical
- Supplier Company Name: Airtex Products
- UPC: 080044517207
- Voltage [V]: 12V
- Wiring Harness Included: No
- Part Description: 2004 Volkswagen Passat In-Tank Fuel Pump Module Assembly
Vehicle Fitment- 2004 Volkswagen Passat | All Trims | 4 Cyl 1.8L
- 2004 Volkswagen Passat | All Trims | 6 Cyl 2.8L
$60.30
Autobest® Fuel Pump Module Assembly for 2004 Volkswagen Passat
PartNumber: F4683AProduct Specifications- Notes: Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir and Fuel Strainer
- Average Current Draw(A): 5.5
- Average Flow Rating(GPH): 33
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Racetrack
- Country of Orign: China
- Fuel Filter Included: No
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: No
- Gasket or Seal Included: No
- Gasket Or Seal Material: FKM
- Grade Type: Regular
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Size: 0.433
- Inlet Type: Strainer
- Installation Warnings: No
- Internal Or External Strainer: Internal
- Lock Ring Included: No
- Maximum Pump Pressure (PSI): 14.5
- Minimum Pump Pressure (PSI): 10.2
- Mounting Hardware Included: No
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Size: 5/16
- Outlet Type: Quick Connect
- Product Height (in): 7.76
- Product Length (in): 10.98
- Product Width (in): 7.95
- Pump Type: Turbine
- Regulator Included: No
- Resistance Ohms Empty: 58
- Resistance Ohms Full: 272
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: PIN
- UPC: 00072845146830
- Voltage: 12V
- Weight (lbs): 2.64
- Part Description: 2004 Volkswagen Passat Fuel Pump Module Assembly
Vehicle Fitment- 2004 Volkswagen Passat | All Trims | 4 Cyl 2.0L
$92.43
Delphi® Fuel Pump Module Assembly for 2004 Volkswagen Passat
PartNumber: FG0975Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 8
- Flow Rating: 46 gph
- Fuel Level Sender Assembly Included: No
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: External
- Item Grade: Standard Replacement
- Maximum Pressure: 80.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 2
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: No
- Strainer Included: Yes
- System Pressure: 51 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604214152
- Vapor Pressure Sensor: No
- Voltage: 12.0 VDC
- Part Description: 2004 Volkswagen Passat Fuel Pump Module Assembly
Vehicle Fitment- 2004 Volkswagen Passat | GLX 4 Motion | 6 Cyl 2.8L
$211.01
Autobest® Fuel Pump Module Assembly for 2004 Volkswagen Passat
PartNumber: F4395AProduct Specifications- Notes: Includes Fuel Pump and Fuel Strainer
- Average Current Draw(A): 9.5
- Average Flow Rating(GPH): 44.9
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Rectangle
- Country of Orign: China
- Fuel Filter Included: No
- Fuel Sending Unit Included: No
- Fuel Tank Pressure Sensor Included: No
- Gasket or Seal Included: No
- Grade Type: Regular
- In Tank or External: In Tank
- Inlet Size: 0.748
- Inlet Type: Strainer
- Installation Warnings: No
- Lock Ring Included: No
- Maximum Pump Pressure (PSI): 116
- Minimum Pump Pressure (PSI): 87
- Mounting Hardware Included: No
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Size: 0.362
- Outlet Type: Hose Barb
- Product Height (in): 5.51
- Product Length (in): 7.09
- Product Width (in): 5.51
- Pump Type: Turbine
- Regulator Included: No
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: PIN
- UPC: 00072845143952
- Voltage: 12V
- Weight (lbs): 2.69
- Wire Harness Included: No
- Part Description: 2004 Volkswagen Passat Fuel Pump Module Assembly
Vehicle Fitment- 2004 Volkswagen Passat | All Trims | 6 Cyl 2.8L
$78.75
Delphi® Fuel Pump Module Assembly for 2004 Volkswagen Passat
PartNumber: FG0418Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 7
- Flow Rating: 26 gph
- Fuel Level Sender Assembly Included: No
- Fuel Type: Gas
- Gasket or Seal Included: No
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: External
- Item Grade: Standard Replacement
- Maximum Pressure: 73.0 PSI
- Outlet Outside Diameter: 0.313''
- Outlet Quantity: 1
- Outlet Type: Hose
- Pump Type: Electric
- Regulator Included: No
- Strainer Included: Yes
- System Pressure: 51 psi
- Terminal Gender: Male
- Terminal Quantity: 2
- Terminal Type: Blade
- UPC: 689604139677
- Vapor Pressure Sensor: No
- Voltage: 12.0 VDC
- Part Description: 2004 Volkswagen Passat Fuel Pump Module Assembly
Vehicle Fitment- 2004 Volkswagen Passat | All Trims | 4 Cyl 1.8L
- 2004 Volkswagen Passat | GLS | 6 Cyl 2.8L
- 2004 Volkswagen Passat | GLX | 6 Cyl 2.8L
- 2004 Volkswagen Passat | GL | 6 Cyl 2.8L
$121.36
Autobest® Fuel Pump Module Assembly for 2004 Volkswagen Passat
PartNumber: F4379AProduct Specifications- Notes: Includes Fuel Pump and Fuel Strainer
- Average Current Draw(A): 125
- Average Flow Rating(GPH): 19.81
- Country of Orign: China
- Fuel Filter Included: No
- Fuel Sending Unit Included: No
- Fuel Tank Pressure Sensor Included: No
- Gasket or Seal Included: No
- Grade Type: Performance
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Size: 0.748
- Inlet Type: Strainer
- Installation Warnings: No
- Internal Or External Strainer: Internal
- Lock Ring Included: No
- Maximum Pump Pressure (PSI): 130
- Minimum Pump Pressure (PSI): 80
- Mounting Hardware Included: No
- Negative Ground: Yes
- Outlet Quantity: 1
- Outlet Size: 0.354
- Outlet Type: Nozzle
- Product Height (in): 4.45
- Product Length (in): 5.51
- Product Width (in): 4.45
- Pump Type: Turbine
- Regulator Included: No
- Strainer Included: Yes
- UPC: 00072845143792
- Voltage: 12V
- Weight (lbs): 1.59
- Wire Harness Included: No
- Part Description: 2004 Volkswagen Passat Fuel Pump Module Assembly
Vehicle Fitment- 2004 Volkswagen Passat | All Trims | 4 Cyl 1.8L
- 2004 Volkswagen Passat | All Trims | 6 Cyl 2.8L
$50.25
Delphi® Fuel Pump Module Assembly for 2004 Volkswagen Passat
PartNumber: FG1406Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 7
- Flow Rating: 26 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: No
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Maximum Pressure: 29.0 PSI
- Outlet Outside Diameter: 0.313''
- Outlet Quantity: 2
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: No
- Resistance Ohms Empty: 58.0
- Resistance Ohms Full: 272.0
- Strainer Included: Yes
- System Pressure: 12 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604234150
- Vapor Pressure Sensor: No
- Voltage: 12.0 VDC
- Part Description: 2004 Volkswagen Passat Fuel Pump Module Assembly
Vehicle Fitment- 2004 Volkswagen Passat | All Trims | 4 Cyl 2.0L
Airtex® Electric Fuel Pump for 2004 Volkswagen Passat
PartNumber: E8560MProduct Specifications- Gasket or Seal Included: No
- Inlet Attachment: Inlet-Strainer
- Inlet Type: STRAINER
- Internal or External: Internal
- Internet Product Code (IPC): AD450358691
- Item Grade: STANDARD REPLACEMENT
- Item has MSDS (SDS): No
- Maximum Pressure (psi): 85
- MFG Brand Name: Airtex Products
- MFG Model # (Series): E8560M
- Minimum Pressure (psi): 75
- Outlet Attachment: Outlet-HoseBarb
- Outlet Size: Outlet - 5/16
- Outlet Type: HOSE BARB
- Package Contents: Fuel Pump Module Assembly
- Package Quantity: 1
- Pump Type: Electrical
- Supplier Company Name: Airtex Products
- UPC: 080044015260
- Wiring Harness Included: No
- Part Description: 2004 Volkswagen Passat Electric Fuel Pump
Vehicle Fitment- 2004 Volkswagen Passat | All Trims | 8 Cyl 4.0L
Airtex® Fuel Pump Module Assembly for 2004 Volkswagen Passat
PartNumber: E8672MProduct Specifications- Notes: In-Tank
- Gasket or Seal Included: No
- Inlet Count: 1
- Inlet Type: STRAINER
- Internal or External: Internal
- Item Grade: STANDARD REPLACEMENT
- Maximum Free Flow Rate (gph): 70
- Maximum Pressure (psi): 12
- Minimum Free Flow Rate (gph): 60
- Minimum Pressure (psi): 10
- Outlet Count: 1
- Outlet Size: 5/16
- Outlet Type: QUICK CONNECT
- Package Contents: PUMP & KIT
- Package Quantity: 1
- Pump Type: Electrical
- UPC: 080044000365
- Voltage [V]: 12V
- Wiring Harness Included: No
- Part Description: 2004 Volkswagen Passat Fuel Pump Module Assembly
Vehicle Fitment- 2004 Volkswagen Passat | All Trims | 4 Cyl 2.0L
