Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F4395A |

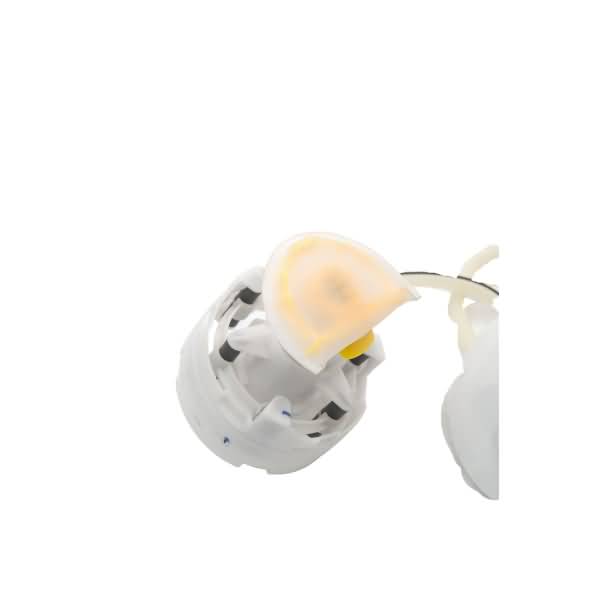

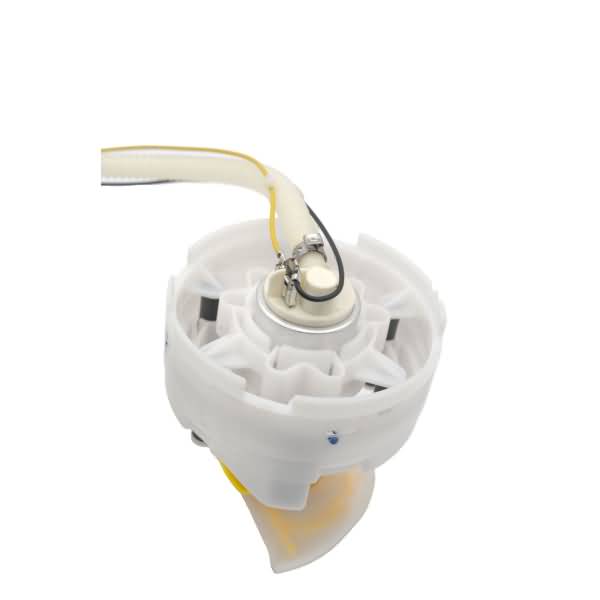

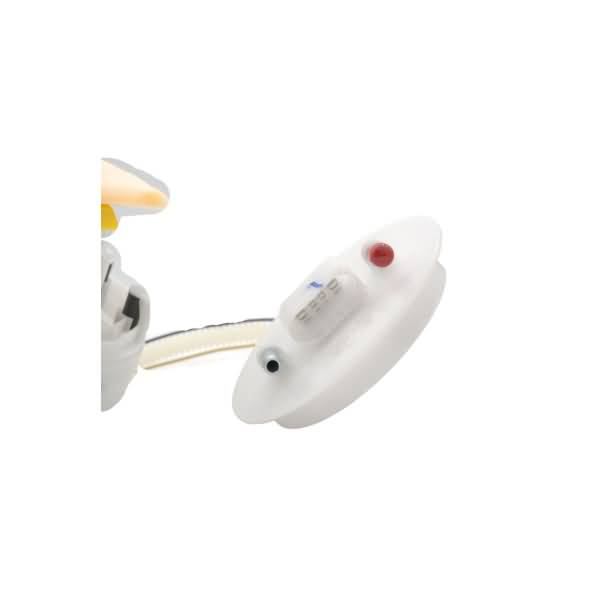

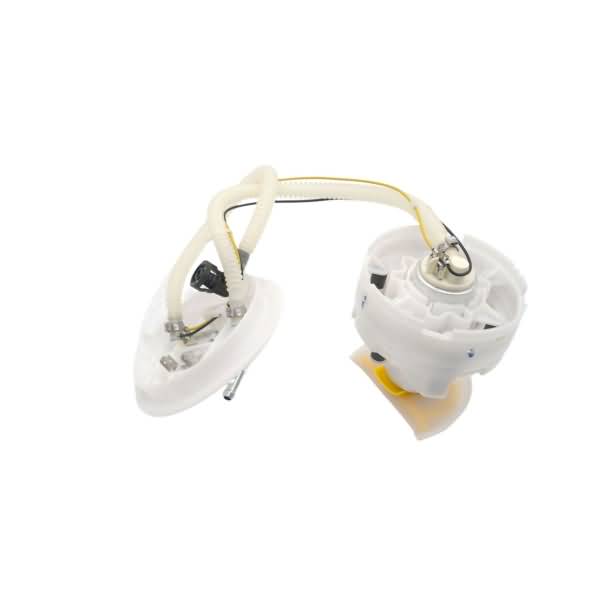

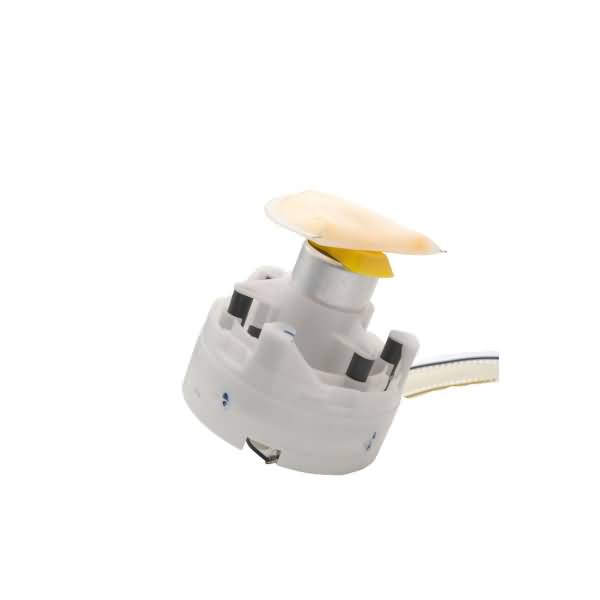

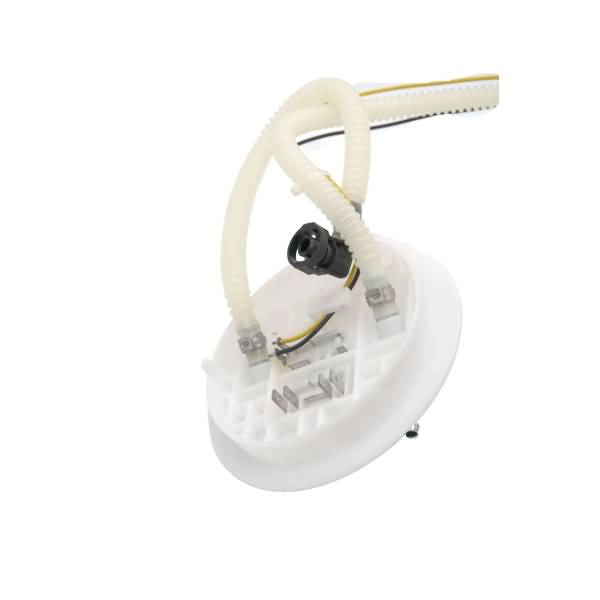

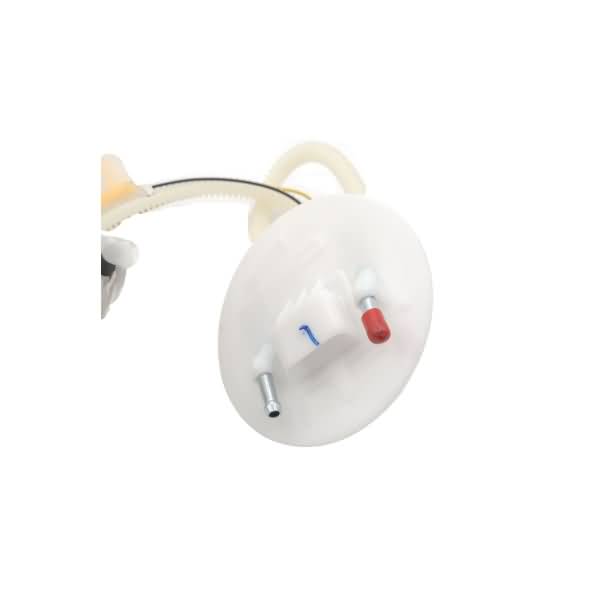

Part Description | Fuel Pump Module Assembly |
Average Current Draw(A) | 9.5 |
Average Flow Rating(GPH) | 44.9 |
Connector Gender | Male |
Connector Quantity | 1 |
Connector Shape | Rectangle |
Country of Orign | China |
Fuel Filter Included | No |
Fuel Sending Unit Included | No |
Fuel Tank Pressure Sensor Included | No |
Gasket or Seal Included | No |
Grade Type | Regular |
In Tank or External | In Tank |
Inlet Size | 0.748 |
Inlet Type | Strainer |
Installation Warnings | No |
Lock Ring Included | No |
Maximum Pump Pressure (PSI) | 116 |
Minimum Pump Pressure (PSI) | 87 |
Mounting Hardware Included | No |
Negative Ground | No |
Outlet Quantity | 1 |
Outlet Size | 0.362 |
Outlet Type | Hose Barb |
Product Height (in) | 5.51 |
Product Length (in) | 7.09 |
Product Width (in) | 5.51 |
Pump Type | Turbine |
Regulator Included | No |
Strainer Included | Yes |
Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | PIN |
UPC | 00072845143952 |
Voltage | 12V |
Weight (lbs) | 2.69 |
Wire Harness Included | No |
Year Make Model | Trim | Engine |
---|---|---|
1998-1999 Audi A6 | All Trims | 6 Cyl 2.8L |
1998-2001 Audi A6 Quattro | All Trims | 6 Cyl 2.8L |
2000-2004 Audi A6 Quattro | All Trims | 8 Cyl 4.2L |
2002-2004 Audi A6 Quattro | All Trims | 6 Cyl 3.0L |
2001-2005 Audi Allroad Quattro | All Trims | 6 Cyl 2.7L |
2003-2005 Audi Allroad Quattro | All Trims | 8 Cyl 4.2L |
2002-2003 Audi S6 | All Trims | 8 Cyl 4.2L |
2001-2005 Volkswagen Passat | All Trims | 6 Cyl 2.8L |
