2004 Nissan Sentra
< Back to View All
Fuel Systems
- Department
- Location
- Operation
- Product Fit
- Brands
- Prices
OEM (Genuine) 2004 Nissan Sentra Fuel Pump Assembly
PartNumber: 17040-ZG50C
Product Specifications- Notes: All
- Other Names: Fuel Pump
- Item Dimensions: 10.8 x 7.2 x 7.1 inches
- Item Weight: 2.80 Pounds
- Replaces: 17040-8U003
- Part Description: 2004 Nissan Sentra Fuel Pump Assembly
Vehicle Fitment- 2004 Nissan Sentra | Base, GXE, Limited Edition, S, SE-R, SE-R Spec V, XE | 4 Cyl 1.8 L GAS, 4 Cyl 2.5 L GAS
$362.70 MSRP:$479.52You Save: $116.82 (25%)
Denso® Electric Fuel Pump for 2004 Nissan Sentra
PartNumber: 951-0007Product Specifications- Notes: DENSO Fuel Pump
- Gasket or Seal Included: No
- Inlet Outside Diameter: 11.000 mm
- Internal or External: Internal
- Mounting Bracket Included: No
- Mounting Hardware Included: YES
- Negative Ground: Yes
- New or Remanufactured: NEW
- Outlet Quantity: 1
- Regulator Included: No
- Seal And Lock Ring Included: No
- Strainer Included: No
- UPC: 042511072435
- Voltage: 12 VDC
- Part Description: 2004 Nissan Sentra Electric Fuel Pump
Vehicle Fitment- 2004 Nissan Sentra | All Trims | 4 Cyl 2.5L
- 2004 Nissan Sentra | All Trims | 4 Cyl 1.8L
$82.92
Delphi® Fuel Pump Module Assembly for 2004 Nissan Sentra
PartNumber: FG1237Product Specifications- Notes: w/1 Tube Port; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 5
- Flow Rating: 28 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Maximum Pressure: 52.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 1
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: No
- Resistance Ohms Empty: 81.0
- Resistance Ohms Full: 4.0
- Strainer Included: Yes
- System Pressure: 51 psi
- Terminal Gender: Male
- Terminal Quantity: 5
- Terminal Type: Blade
- UPC: 689604236857
- Vapor Pressure Sensor: No
- Voltage: 12.0 VDC
- Part Description: 2004 Nissan Sentra Fuel Pump Module Assembly
Vehicle Fitment- 2004 Nissan Sentra | All Trims | 4 Cyl 1.8L
- 2004 Nissan Sentra | All Trims | 4 Cyl 2.5L
$188.51

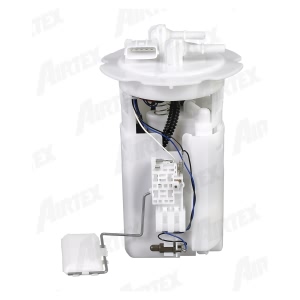

Airtex® Fuel Pump Module Assembly for 2004 Nissan Sentra
PartNumber: E8502MProduct Specifications- Notes: 1 Tube Port
- Gasket or Seal Included: No
- Inlet Attachment: Inlet-Strainer
- Inlet Type: STRAINER
- Internal or External: Internal
- Internet Product Code (IPC): 74600BF92E0
- Item Grade: STANDARD REPLACEMENT
- Item has MSDS (SDS): No
- Maximum Pressure (psi): 100
- MFG Brand Name: Airtex Products
- MFG Model # (Series): E8502M
- Minimum Pressure (psi): 80
- Outlet Attachment: Outlet-QuickConnect
- Outlet Size: 5/16
- Outlet Type: QUICK CONNECT
- Package Contents: PUMP & KIT
- Package Quantity: 1
- Pump Type: Electrical
- Supplier Company Name: Airtex Products
- UPC: 080044014867
- Voltage [V]: 12V
- Wiring Harness Included: No
- Part Description: 2004 Nissan Sentra Fuel Pump Module Assembly
Vehicle Fitment- 2004 Nissan Sentra | All Trims | 4 Cyl 2.5L
- 2004 Nissan Sentra | All Trims | 4 Cyl 1.8L
$115.39
Autobest® Fuel Pump Module Assembly for 2004 Nissan Sentra
PartNumber: F4513AProduct Specifications- Notes: w/1 Tube Port on Module Assembly;Includes Fuel Pump, Fuel Pressure Regulator, Sending Unit, Float, Fuel Reservoir and Fuel Strainer
- Average Current Draw(A): 5.8
- Average Flow Rating(GPH): 30
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Rectangle
- Country of Orign: China
- Fuel Filter Included: Yes
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: No
- Gasket or Seal Included: No
- Gasket Or Seal Material: NBR
- Grade Type: Performance
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Size: 0.433
- Inlet Type: Strainer
- Installation Warnings: No
- Internal Or External Strainer: Internal
- Lock Ring Included: No
- Maximum Pump Pressure (PSI): 100
- Minimum Pump Pressure (PSI): 80
- Mounting Hardware Included: No
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Size: 5/16
- Outlet Type: Quick Connect
- Product Height (in): 5.75
- Product Length (in): 9.25
- Product Width (in): 7.09
- Pump Type: Turbine
- Regulator Included: Yes
- Resistance Ohms Empty: 88
- Resistance Ohms Full: 8
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 5
- Terminal Type: PIN
- UPC: 00072845145130
- Voltage: 12V
- Weight (lbs): 2.61
- Wire Harness Included: No
- Part Description: 2004 Nissan Sentra Fuel Pump Module Assembly
Vehicle Fitment- 2004 Nissan Sentra | All Trims | 4 Cyl 1.8L
- 2004 Nissan Sentra | All Trims | 4 Cyl 2.5L
$86.13
Delphi® In Tank Electric Fuel Pump for 2004 Nissan Sentra
PartNumber: FE0415Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 5
- Flow Rating: 29 gph
- Fuel Type: Gas
- Gasket or Seal Included: No
- In Tank or External: In Tank
- Inlet Type: Strainer
- Item Grade: Standard Replacement
- Maximum Pressure: 109.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Type: Hose
- Pump Type: Electric
- Strainer Included: No
- System Pressure: 44 psi
- Terminal Gender: Male
- Terminal Quantity: 2
- Terminal Type: Blade
- UPC: 689604189993
- Voltage: 12 VDC
- Wiring Harness Included: Yes
- Part Description: 2004 Nissan Sentra In Tank Electric Fuel Pump
Vehicle Fitment- 2004 Nissan Sentra | All Trims | All Engines
$117.02
Autobest® Fuel Pump Module Assembly for 2004 Nissan Sentra
PartNumber: F6195AProduct Specifications- Notes: Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir and Fuel Strainer,QR25DE Eng.;Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir and Fuel Strainer,QG18DE Eng.;w/2 Tube Ports On The Module Flange
- Average Current Draw(A): 6
- Average Flow Rating(GPH): 30
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Rectangle
- Country of Orign: China
- Fuel Filter Included: Yes
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: No
- Gasket or Seal Included: No
- Gasket Or Seal Material: NBR
- Grade Type: Performance
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Size: 0.433
- Inlet Type: Strainer
- Installation Warnings: No
- Internal Or External Strainer: Internal
- Lock Ring Included: No
- Maximum Pump Pressure (PSI): 110
- Minimum Pump Pressure (PSI): 100
- Mounting Hardware Included: No
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Size: 5/16
- Outlet Type: Quick Connect
- Product Height (in): 5.75
- Product Length (in): 9.25
- Product Width (in): 7.09
- Pump Type: Turbine
- Regulator Included: Yes
- Resistance Ohms Empty: 88
- Resistance Ohms Full: 8
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 5
- Terminal Type: PIN
- UPC: 00072845161956
- Voltage: 12V
- Weight (lbs): 2.68
- Wire Harness Included: No
- Part Description: 2004 Nissan Sentra Fuel Pump Module Assembly
Vehicle Fitment- 2004 Nissan Sentra | All Trims | 4 Cyl 1.8L
- 2004 Nissan Sentra | All Trims | 4 Cyl 2.5L
$95.54
Denso® Fuel Pump And Strainer Set for 2004 Nissan Sentra
PartNumber: 950-0129Product Specifications- Notes: DENSO Fuel Pump & Strainer Kit;DENSO Mfg. Replacement Fuel Pump & Strainer Kit
- Fuel Pump Type: Electrical
- Gaskets Included: No
- Internet Product Code (IPC): 680C180F0B4
- Item Grade: Premium Replacement
- Item has MSDS (SDS): Y
- MFG Brand Name: DENSO Auto Parts
- MFG Model # (Series): 950-0129
- MFG Name: DENSO
- Package Contents: Fuel Pump Kit
- Pump Placement: In Tank
- Strainer Fitting Diameter: 0.43
- Strainer Length: 60.0
- Strainer Width: 84.00
- Supplier Company Name: DENSO
- UPC: 042511072343
- Part Description: 2004 Nissan Sentra Fuel Pump And Strainer Set
Vehicle Fitment- 2004 Nissan Sentra | All Trims | 4 Cyl 2.5L
- 2004 Nissan Sentra | All Trims | 4 Cyl 1.8L
- 2004 Nissan Sentra | Base | 4 Cyl 1.8L
- 2004 Nissan Sentra | S | 4 Cyl 1.8L
Airtex® In-Tank Fuel Pump Module Assembly for 2004 Nissan Sentra
PartNumber: E9184MProduct Specifications- Gasket or Seal Included: No
- Inlet Count: 1
- Inlet Type: STRAINER
- Internal or External: Internal
- Item Grade: STANDARD REPLACEMENT
- Maximum Free Flow Rate (gph): 45
- Maximum Pressure (psi): 110
- Minimum Free Flow Rate (gph): 35
- Minimum Pressure (psi): 100
- Outlet Count: 1
- Outlet Size: 5/16"
- Outlet Type: QUICK CONNECT
- Package Contents: PUMP & KIT
- Package Quantity: 1
- Pump Type: Electrical
- UPC: 080044058410
- Part Description: 2004 Nissan Sentra In-Tank Fuel Pump Module Assembly
Vehicle Fitment- 2004 Nissan Sentra | All Trims | 4 Cyl 1.8L
- 2004 Nissan Sentra | All Trims | 4 Cyl 2.5L
