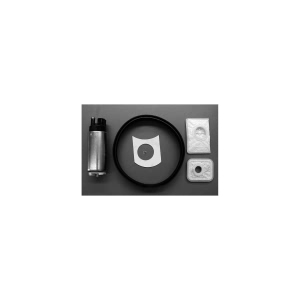

Denso® Fuel Pump and Strainer Set for 2004 Jeep Wrangler
PartNumber: 950-0199Product Specifications- Notes: DENSO Fuel Pump & Strainer Kit;DENSO Mfg. Replacement Fuel Pump & Strainer Kit
- Fuel Pump Type: Electrical
- Pump Placement: In Tank
- UPC: 042511170773
- Part Description: 2004 Jeep Wrangler Fuel Pump and Strainer Set
Vehicle Fitment- 2004 Jeep Wrangler | All Trims | 6 Cyl 4.0L
- 2004 Jeep Wrangler | All Trims | 4 Cyl 2.4L
$93.29
Delphi® Fuel Pump Module Assembly for 2004 Jeep Wrangler
PartNumber: FG1221Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 6
- Flow Rating: 45 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: External
- Item Grade: Standard Replacement
- Maximum Pressure: 51.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 1
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: No
- Resistance Ohms Empty: 325.0
- Resistance Ohms Full: 18.0
- Strainer Included: Yes
- System Pressure: 44 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604231913
- Vapor Pressure Sensor: No
- Voltage: 12.0 VDC
- Part Description: 2004 Jeep Wrangler Fuel Pump Module Assembly
Vehicle Fitment- 2004 Jeep Wrangler | All Trims | 4 Cyl 2.4L
- 2004 Jeep Wrangler | All Trims | 6 Cyl 4.0L
$139.81
TYC® Electric Fuel Pump for 2004 Jeep Wrangler
PartNumber: 152011-AProduct Specifications- Accessories Included: yes
- Connector Pins Qty On Main Connector: 2 Pins
- GPH (Gallons Per Hour Flow): 44.9-54.2
- Max Pressure (psi): 80-109
- OE Part Number: 5114302AA
- Strainer Included: No
- UPC: 762405827223
- Part Description: 2004 Jeep Wrangler Electric Fuel Pump
Vehicle Fitment- 2004 Jeep Wrangler | All Trims | 6 Cyl 4.0L
- 2004 Jeep Wrangler | All Trims | 4 Cyl 2.4L
$19.53
Autobest® Fuel Pump Module Assembly for 2004 Jeep Wrangler
PartNumber: F3167AProduct Specifications- Notes: Includes Fuel Pump, Fuel Pressure Regulator, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal
- Average Current Draw(A): 6.8
- Average Flow Rating(GPH): 38
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Rectangle
- Country of Orign: China
- Fuel Filter Included: No
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: No
- Fuel Type: Turbine
- Gasket or Seal Included: Yes
- Gasket Or Seal Material: NBR
- Grade Type: Performance
- Housing Material: Aluminium
- In Tank or External: In Tank
- Inlet Size: 0.433
- Inlet Type: Strainer
- Installation Warnings: No
- Internal or External: Internal
- Internal Or External Strainer: External and Internal
- Lock Ring Included: No
- Maximum Free Flow (GPH): 55
- Maximum Pump Pressure (PSI): 100
- Minimum Free Flow (GPH): 45
- Minimum Pump Pressure (PSI): 80
- Mounting Hardware Included: No
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Size: 3/8
- Outlet Type: Quick Connect
- Product Height (in): 5.71
- Product Length (in): 13.39
- Product Width (in): 7.09
- Pump Type: Turbine
- Regulator Included: Yes
- Resistance Ohms Empty: 275
- Resistance Ohms Full: 20
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: PIN
- UPC: 00072845131676
- Voltage: 12V
- Weight (lbs): 3.38
- Wire Harness Included: No
- Part Description: 2004 Jeep Wrangler Fuel Pump Module Assembly
Vehicle Fitment- 2004 Jeep Wrangler | All Trims | 4 Cyl 2.4L
- 2004 Jeep Wrangler | All Trims | 6 Cyl 4.0L
$94.59
Delphi® In Tank Electric Fuel Pump for 2004 Jeep Wrangler
PartNumber: FE0300Product Specifications- Notes: A full fuel module Assy replacement is recommended for Jeep applications; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 6
- Flow Rating: 26 gph
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Item Grade: Standard Replacement
- Maximum Pressure: 102.0 PSI
- Outlet Outside Diameter: 0.313''
- Outlet Type: Hose
- Pump Type: Electric
- Strainer Included: No
- System Pressure: 44 psi
- Terminal Gender: Male
- Terminal Quantity: 2
- Terminal Type: Blade
- UPC: 689604076156
- Voltage: 12 VDC
- Wiring Harness Included: Yes
- Part Description: 2004 Jeep Wrangler In Tank Electric Fuel Pump
Vehicle Fitment- 2004 Jeep Wrangler | All Trims | All Engines
$100.09
Autobest® In Tank Electric Fuel Pump for 2004 Jeep Wrangler
PartNumber: F3165Product Specifications- Notes: Includes Tank Seal;When Replacing The Pump Only Both Strainers Are Required;Strainer required to validate the warranty: F322S, F321S
- Average Current Draw(A): 6
- Average Flow Rating(GPH): 120
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Rectangle
- Country of Orign: China
- Fuel Type: Turbine
- Gasket or Seal Included: No
- Grade Type: Performance
- In Tank or External: In Tank
- Inlet Size: 0.433
- Inlet Type: filter
- Installation Warnings: No
- Internal or External: Internal
- Internal Or External Strainer: External
- Maximum Free Flow (GPH): 50
- Maximum Pump Pressure (PSI): 123.25
- Minimum Free Flow (GPH): 40
- Minimum Pump Pressure (PSI): 79.8
- Outlet Quantity: 1
- Outlet Size: 0.36
- Outlet Type: Tube
- Product Height (in): 1.5
- Product Length (in): 4.61
- Product Width (in): 1.5
- Pump Type: Turbine
- Regulator Included: No
- Terminal Gender: Male
- Terminal Quantity: 2
- Terminal Type: Inserts
- UPC: 00072845131652
- Voltage: 12V
- Weight (lbs): 0.73
- Part Description: 2004 Jeep Wrangler In Tank Electric Fuel Pump
Vehicle Fitment- 2004 Jeep Wrangler | All Trims | 6 Cyl 4.0L
- 2004 Jeep Wrangler | All Trims | 4 Cyl 2.4L
$21.10
OEM (Genuine) 2004 Jeep Wrangler Module-Fuel PUMP/LEV
PartNumber: RL093788AC
Product Specifications- Notes: 2003-06; Tj Series; 19 Gallon Tank
- Other Names: Fuel Pump, Fuel Pump Assembly
- Item Dimensions: 16.0 x 9.3 x 8.9 inches
- Item Weight: 3.90 Pounds
- Replaces: 5093788AB, 5093788AC, RL093788AB
- Part Description: 2004 Jeep Wrangler Module-Fuel PUMP/LEV
Vehicle Fitment- 2004 Jeep Wrangler | Rubicon, Sahara, SE, Sport, Unlimited, X | 4 Cyl 2.4 L GAS, 6 Cyl 4.0 L GAS

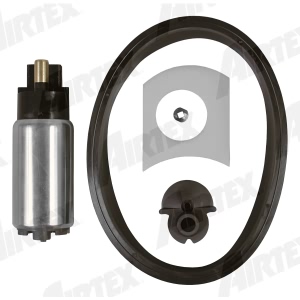

Airtex® In-Tank Electric Fuel Pump for 2004 Jeep Wrangler
PartNumber: E7154Product Specifications- Notes: Incls Tank Seals
- Gasket or Seal Included: Yes
- Inlet Attachment: Inlet-Strainer
- Inlet Type: STRAINER
- Internet Product Code (IPC): 5B2C5708913
- Item Grade: STANDARD REPLACEMENT
- Item has MSDS (SDS): No
- Maximum Pressure (psi): 95
- MFG Brand Name: Airtex Products
- MFG Model # (Series): E7154
- Minimum Pressure (psi): 60.0
- Outlet Attachment: Outlet-HoseBead
- Outlet Size: Outlet - 3/8
- Outlet Type: HOSE BEAD
- Package Contents: Pump and Kit
- Package Quantity: 1
- Supplier Company Name: Airtex Products
- UPC: 080044528128
- Voltage [V]: 12V
- Part Description: 2004 Jeep Wrangler In-Tank Electric Fuel Pump
Vehicle Fitment- 2004 Jeep Wrangler | All Trims | 6 Cyl 4.0L
- 2004 Jeep Wrangler | All Trims | 4 Cyl 2.4L
Hella® Fuel Pump for 2004 Jeep Wrangler
PartNumber: H75015051Product Specifications- Notes: Discontinued; 12V; 50PSI; 27GPH HI; IN-TANK
- UPC: 760687051015
- Part Description: 2004 Jeep Wrangler Fuel Pump
Vehicle Fitment- 2004 Jeep Wrangler | All Trims | 4 Cyl 2.4L
- 2004 Jeep Wrangler | All Trims | 6 Cyl 4.0L

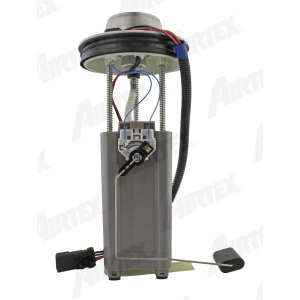

Airtex® In-Tank Fuel Pump Module Assembly for 2004 Jeep Wrangler
PartNumber: E7156MNProduct Specifications- Gasket or Seal Included: Yes
- Inlet Attachment: Inlet-Strainer
- Inlet Type: STRAINER
- Internal or External: Internal
- Internet Product Code (IPC): FFB7C171962
- Item Grade: STANDARD REPLACEMENT
- Maximum Pressure (psi): 95
- MFG Brand Name: Airtex Products
- MFG Model # (Series): E7156MN
- Minimum Pressure (psi): 51.0
- Outlet Attachment: Outlet-QuickConnect
- Outlet Size: Outlet - 3/8
- Outlet Type: QUICK CONNECT
- Package Contents: Fuel Pump Module Assembly
- Package Quantity: 1
- Pump Type: Electrical
- Supplier Company Name: Airtex Products
- UPC: 080044011842
- Wiring Harness Included: No
- Part Description: 2004 Jeep Wrangler In-Tank Fuel Pump Module Assembly
Vehicle Fitment- 2004 Jeep Wrangler | All Trims | 4 Cyl 2.4L
- 2004 Jeep Wrangler | All Trims | 6 Cyl 4.0L
Autobest® High Performance Electric Fuel Pump for 2004 Jeep Wrangler
PartNumber: HP3165Product Specifications- Notes: When Replacing The Pump Only Both Strainers Are Required;Strainer required to validate the warranty: F322S, F321S;Includes Tank Seal
- Average Current Draw(A): 6
- Average Flow Rating(GPH): 120
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Rectangle
- Country of Orign: China
- Fuel Type: Turbine
- Gasket or Seal Included: Yes
- Grade Type: Performance
- Height (in.): 3
- In Tank or External: In Tank
- Inlet Size: 0.433
- Inlet Type: Strainer
- Installation Warnings: No
- Internal or External: Internal
- Internal Or External Strainer: External
- Length (in.): 7
- Life Cycle Status Code: Superseded
- Maximum Free Flow (GPH): 57.5
- Maximum Pump Pressure (PSI): 123.25
- Minimum Free Flow (GPH): 46
- Minimum Pump Pressure (PSI): 79.8
- Outlet Quantity: 1
- Outlet Size: 0.358
- Outlet Type: Hose
- Package Contents: Pump
- Product Height (in): 3
- Product Length (in): 7
- Product Width (in): 3
- Pump Type: Turbine
- Regulator Included: No
- Short Description: High Performance Fuel Pump
- Superseded To: F3165
- Terminal Gender: Male
- Terminal Quantity: 2
- Terminal Type: Inserts
- UPC: 00072845171658
- Voltage: 12V
- Weight (lbs): 4
- Weight (lbs.): 4
- Width (in.): 3
- Part Description: 2004 Jeep Wrangler High Performance Electric Fuel Pump
Vehicle Fitment- 2004 Jeep Wrangler | All Trims | 6 Cyl 4.0L
- 2004 Jeep Wrangler | All Trims | 4 Cyl 2.4L
