2004 Honda CR-V
< Back to View All
Fuel Systems
- Department
- Location
- Operation
- Product Fit
- Brands
- Prices
Delphi® Fuel Pump Module Assembly for 2004 Honda CR-V
PartNumber: FG0963Product Specifications- Notes: Two port cover utilized for manufacturing only use the open port do not tamper w/plugged tube port; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 14
- Flow Rating: 13 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Maximum Pressure: 78.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 1
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: Yes
- Resistance Ohms Empty: 131.0
- Resistance Ohms Full: 12.0
- Strainer Included: Yes
- System Pressure: 49 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604214725
- Vapor Pressure Sensor: No
- Voltage: 12.0 VDC
- Part Description: 2004 Honda CR-V Fuel Pump Module Assembly
Vehicle Fitment- 2004 Honda CR-V | All Trims | 4 Cyl 2.4L
$248.23
Autobest® In Tank Electric Fuel Pump for 2004 Honda CR-V
PartNumber: F4467Product Specifications- Notes: VIN Begins With S;Strainer required to validate the warranty: F328S;Includes Tank Seal
- Average Current Draw(A): 5.3
- Average Flow Rating(GPH): 105
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Rectangle
- Country of Orign: China
- Gasket or Seal Included: No
- Grade Type: Performance
- In Tank or External: In Tank
- Inlet Size: 0.433
- Inlet Type: Filter
- Installation Warnings: No
- Internal Or External Strainer: External
- Maximum Pump Pressure (PSI): 130.5
- Minimum Pump Pressure (PSI): 87
- Outlet Quantity: 1
- Outlet Size: 0.36
- Outlet Type: Male tube / 1 barb
- Product Height (in): 1.5
- Product Length (in): 4.57
- Product Width (in): 1.5
- Pump Type: Turbine
- Regulator Included: No
- Terminal Gender: Male
- Terminal Quantity: 2
- Terminal Type: Inserts
- UPC: 00072845144676
- Voltage: 12V
- Weight (lbs): 0.72
- Part Description: 2004 Honda CR-V In Tank Electric Fuel Pump
Vehicle Fitment- 2004 Honda CR-V | All Trims | 4 Cyl 2.4L
$22.26
Delphi® In Tank Electric Fuel Pump for 2004 Honda CR-V
PartNumber: FE0351Product Specifications- Notes: Use to Service Honda OE Style Modules Assemblies;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 5
- Flow Rating: 29 gph
- Fuel Type: Gas
- Gasket or Seal Included: No
- In Tank or External: In Tank
- Inlet Type: Strainer
- Item Grade: Standard Replacement
- Maximum Pressure: 85.0 PSI
- Outlet Outside Diameter: 0.313''
- Outlet Type: Hose Bead
- Pump Type: Electric
- Strainer Included: No
- System Pressure: 44 psi
- Terminal Gender: Male
- Terminal Quantity: 2
- Terminal Type: Pin
- UPC: 886931300408
- Voltage: 12 VDC
- Wiring Harness Included: No
- Part Description: 2004 Honda CR-V In Tank Electric Fuel Pump
Vehicle Fitment- 2004 Honda CR-V | All Trims | 4 Cyl 2.4L
$68.39
Autobest® In Tank Electric Fuel Pump for 2004 Honda CR-V
PartNumber: F4346Product Specifications- Notes: Japan Built;Strainer required to validate the warranty: F328S
- Average Current Draw(A): 5.5
- Average Flow Rating(GPH): 85
- Country of Orign: China
- Gasket or Seal Included: No
- In Tank or External: In Tank
- Inlet Size: 0.433
- Inlet Type: Strainer
- Installation Warnings: No
- Lock Ring Included: No
- Maximum Pump Pressure (PSI): 123.25
- Minimum Pump Pressure (PSI): 79.8
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Size: 0.346
- Outlet Type: Hose
- Product Height (in): 1.5
- Product Length (in): 4.57
- Product Width (in): 1.5
- Pump Type: Turbine
- Regulator Included: No
- Strainer Included: No
- Terminal Gender: Male
- Terminal Quantity: 2
- Terminal Type: Chip
- UPC: 00072845143464
- Voltage: 12V
- Weight (lbs): 0.68
- Wire Harness Included: No
- Part Description: 2004 Honda CR-V In Tank Electric Fuel Pump
Vehicle Fitment- 2004 Honda CR-V | All Trims | 4 Cyl 2.4L
$18.73
Autobest® Fuel Pump Module Assembly for 2004 Honda CR-V
PartNumber: F4744AProduct Specifications- Notes: Japan Built;Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal
- Average Current Draw(A): 8.5
- Average Flow Rating(GPH): 33
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Trapezoid
- Country of Orign: China
- Fuel Filter Included: Yes
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: No
- Gasket or Seal Included: Yes
- Gasket Or Seal Material: NBR
- Grade Type: Regular
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Size: 0.433
- Inlet Type: Strainer
- Installation Warnings: No
- Lock Ring Included: No
- Maximum Pump Pressure (PSI): 52
- Minimum Pump Pressure (PSI): 52
- Mounting Hardware Included: No
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Size: 3/8
- Outlet Type: Quick Connect
- Product Height (in): 6.5
- Product Length (in): 12.4
- Product Width (in): 9.06
- Pump Type: Turbine
- Regulator Included: Yes
- Resistance Ohms Empty: 132
- Resistance Ohms Full: 12
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: PIN
- UPC: 00072845147448
- Voltage: 12V
- Weight (lbs): 2.52
- Wire Harness Included: No
- Part Description: 2004 Honda CR-V Fuel Pump Module Assembly
Vehicle Fitment- 2004 Honda CR-V | All Trims | 4 Cyl 2.4L
$109.31
Autobest® High Performance Electric Fuel Pump for 2004 Honda CR-V
PartNumber: HP4346Product Specifications- Notes: Japan Built;Strainer required to validate the warranty: F328S
- Average Current Draw(A): 5.5
- Average Flow Rating(GPH): 85
- Country of Orign: China
- Gasket or Seal Included: No
- In Tank or External: In Tank
- Inlet Size: 0.433
- Inlet Type: Strainer
- Installation Warnings: No
- Lock Ring Included: No
- Maximum Pump Pressure (PSI): 123.25
- Minimum Pump Pressure (PSI): 79.8
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Size: 0.358
- Outlet Type: Hose
- Product Height (in): 3
- Product Length (in): 7
- Product Width (in): 3
- Pump Type: Turbine
- Regulator Included: No
- Strainer Included: No
- Terminal Gender: Male
- Terminal Quantity: 2
- Terminal Type: Chip
- UPC: 00072845183460
- Voltage: 12V
- Weight (lbs): 3
- Wire Harness Included: No
- Part Description: 2004 Honda CR-V High Performance Electric Fuel Pump
Vehicle Fitment- 2004 Honda CR-V | All Trims | 4 Cyl 2.4L
$21.82
Denso® Electric Fuel Pump for 2004 Honda CR-V
PartNumber: 951-0005Product Specifications- Notes: DENSO OE Replacement Fuel Pump
- Gasket or Seal Included: No
- Inlet Outside Diameter: 11.000 mm
- Internal or External: Internal
- Mounting Bracket Included: No
- Mounting Hardware Included: YES
- Negative Ground: Yes
- New or Remanufactured: NEW
- Outlet Quantity: 1
- Regulator Included: No
- Seal And Lock Ring Included: No
- Strainer Included: No
- UPC: 042511072411
- Voltage: 12 VDC
- Part Description: 2004 Honda CR-V Electric Fuel Pump
Vehicle Fitment- 2004 Honda CR-V | All Trims | 4 Cyl 2.4L
OEM (Genuine) 2004 Honda CR-V Pump Set, Fuel
PartNumber: 17040-S9A-000
Product Specifications- Notes: 2002-04
- Item Weight: 1.20 Pounds
- Part Description: 2004 Honda CR-V Pump Set, Fuel
Vehicle Fitment- 2004 Honda CR-V | EX, LX | 4 Cyl 2.4 L GAS
Airtex® In-Tank Electric Fuel Pump for 2004 Honda CR-V
PartNumber: E8229Product Specifications- Notes: Contains Hoses & Clamps;with Plug Type Pump Electrical Connector;with 1.5 Inch Diameter Pump;OE Replacement Pump
- Connector Gender: Male
- Connector Shape: Rectangle
- Fuel Pump Inlet Type: Strainer
- Fuel Sending Unit Included: No
- Gasket or Seal Included: Yes
- Inlet Attachment: Inlet-Strainer
- Inlet Count: 1
- Inlet Outside Diameter: 11.0
- Internal or External: Internal
- Internet Product Code (IPC): E8B947CDEF4
- Item Grade: OEM Standard Part
- Item has MSDS (SDS): No
- Length (Inch): 114.0
- Maximum Free Flow Rate (gph): 45
- Maximum Pressure (psi): 100
- MFG Brand Name: Airtex Products
- MFG Model # (Series): E8229
- Minimum Free Flow Rate: 33.0
- Minimum Free Flow Rate (gph): 45
- Minimum Pressure (psi): 80
- Mounting Hardware Included: No
- Muffler Outlet Diameter (in): 9.0
- Negative Ground: Yes
- Outlet Attachment: Outlet-HoseConnection
- Outlet Count: 1
- Outlet Fitting Thread Size: 5/16 Inch
- Outlet Quantity: 1
- Outlet Size: Outlet - .348
- Outlet Type: Hose Barb
- Package Contents: Pump and Kit
- Pump Type: Electric
- Regulator Included: No
- Seal And Lock Ring Included: No
- Strainer Included: No
- Supplier Company Name: Airtex Products
- Terminal Quantity: 2
- Terminal Type: Blade
- Universal Or Specific Fit: Specific
- UPC: 080044102496
- Voltage [V]: 12V
- Wiring Harness Included: Yes
- Part Description: 2004 Honda CR-V In-Tank Electric Fuel Pump
Vehicle Fitment- 2004 Honda CR-V | All Trims | 4 Cyl 2.4L
Denso® Fuel Pump And Strainer Set for 2004 Honda CR-V
PartNumber: 950-0116Product Specifications- Notes: DENSO Mfg. OE / OES Replacement Fuel Pump & Strainer Kit;DENSO OE Replacement Fuel Pump & Strainer Kit
- Fuel Pump Type: Electrical
- Gaskets Included: No
- Internet Product Code (IPC): 11EF34633DF
- Item Grade: Premium Replacement
- Item has MSDS (SDS): Y
- MFG Brand Name: DENSO Auto Parts
- MFG Model # (Series): 950-0116
- MFG Name: DENSO
- Package Contents: Fuel Pump Kit
- Pump Placement: In Tank
- Strainer Fitting Diameter: 0.43
- Strainer Length: 60.0
- Strainer Width: 84.00
- Supplier Company Name: DENSO
- UPC: 042511072213
- Part Description: 2004 Honda CR-V Fuel Pump And Strainer Set
Vehicle Fitment- 2004 Honda CR-V | All Trims | 4 Cyl 2.4L

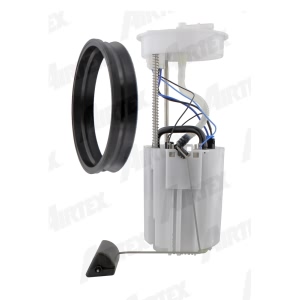

Airtex® In-Tank Fuel Pump Module Assembly for 2004 Honda CR-V
PartNumber: E8733MProduct Specifications- Notes: Japan Built; Incls Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer & Tank Seal
- Gasket or Seal Included: Yes
- Inlet Count: 1
- Inlet Type: STRAINER
- Internal or External: Internal
- Item Grade: STANDARD REPLACEMENT
- Maximum Free Flow Rate (gph): 30
- Maximum Pressure (psi): 52
- Minimum Free Flow Rate (gph): 20
- Minimum Pressure (psi): 52
- Outlet Count: 1
- Outlet Size: 3/8
- Outlet Type: QUICK CONNECT
- Package Contents: PUMP & KIT
- Package Quantity: 1
- Pump Type: Electrical
- UPC: 080044034872
- Voltage [V]: 12V
- Wiring Harness Included: No
- Part Description: 2004 Honda CR-V In-Tank Fuel Pump Module Assembly
Vehicle Fitment- 2004 Honda CR-V | All Trims | 4 Cyl 2.4L
