Delphi® Fuel Pump Module Assembly for 2004 Chrysler PT Cruiser
PartNumber: FG1225Product Specifications- Notes: To 11/10/2003;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 7
- Flow Rating: 35 gph
- Fuel Level Sender Assembly Included: No
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Maximum Pressure: 94.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 1
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: Yes
- Resistance Ohms Empty: 70.0
- Resistance Ohms Full: 1050.0
- Strainer Included: Yes
- System Pressure: 58 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604238912
- Vapor Pressure Sensor: No
- Voltage: 12.0 VDC
- Part Description: 2004 Chrysler PT Cruiser Fuel Pump Module Assembly
Vehicle Fitment- 2004 Chrysler PT Cruiser | All Trims | 4 Cyl 2.4L
$194.17
Autobest® Fuel Pump Module Assembly for 2004 Chrysler PT Cruiser
PartNumber: F3154AProduct Specifications- Notes: Includes Fuel Pump, Fuel Pressure Regulator, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal;To 10/30/03
- Gasket or Seal Included: Yes
- Inlet Size: 0.433
- Inlet Type: Strainer
- Internal or External: Internal
- Maximum Free Flow (GPH): 48
- Maximum Pump Pressure (PSI): 64
- Minimum Free Flow (GPH): 37
- Minimum Pump Pressure (PSI): 59
- Outlet Size: 0.373
- Outlet Type: Quick Connect
- Pump Type: Turbine
- Regulator Included: No
- UPC: 072845131546
- Part Description: 2004 Chrysler PT Cruiser Fuel Pump Module Assembly
Vehicle Fitment- 2004 Chrysler PT Cruiser | All Trims | 4 Cyl 2.4L
$98.86
Delphi® Fuel Pump Module Assembly for 2004 Chrysler PT Cruiser
PartNumber: FG0927Product Specifications- Notes: From 10/30/2003;From 11/10/2003;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 14
- Flow Rating: 21 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Maximum Pressure: 78.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 1
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: Yes
- Resistance Ohms Empty: 70.0
- Resistance Ohms Full: 1050.0
- Strainer Included: Yes
- System Pressure: 58 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604207390
- Vapor Pressure Sensor: No
- Voltage: 12.0 VDC
- Part Description: 2004 Chrysler PT Cruiser Fuel Pump Module Assembly
Vehicle Fitment- 2004 Chrysler PT Cruiser | All Trims | 4 Cyl 2.4L
$192.02
Autobest® Fuel Pump Module Assembly for 2004 Chrysler PT Cruiser
PartNumber: F3190AProduct Specifications- Notes: From 10/30/03;Includes Fuel Pump, Fuel Pressure Regulator, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal
- Gasket or Seal Included: Yes
- Inlet Size: 0.314
- Inlet Type: Strainer
- Internal or External: Internal
- Maximum Free Flow (GPH): 55.4
- Maximum Pump Pressure (PSI): 62.35
- Minimum Free Flow (GPH): 47.5
- Minimum Pump Pressure (PSI): 59.45
- Outlet Size: 0.374
- Outlet Type: Quick Connect
- Pump Type: Turbine
- Regulator Included: No
- UPC: 072845131904
- Part Description: 2004 Chrysler PT Cruiser Fuel Pump Module Assembly
Vehicle Fitment- 2004 Chrysler PT Cruiser | All Trims | 4 Cyl 2.4L
$93.15
Delphi® Fuel Pump Module Assembly for 2004 Chrysler PT Cruiser
PartNumber: FG0373Product Specifications- Notes: To 10/30/2003;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 14
- Flow Rating: 21 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Lock Ring Included: No
- Maximum Pressure: 60.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 1
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: Yes
- Resistance Ohms Empty: 70.0
- Resistance Ohms Full: 1050.0
- Strainer Included: Yes
- System Pressure: 58 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604120637
- Vapor Pressure Sensor: No
- Voltage: 12.0 VDC
- Part Description: 2004 Chrysler PT Cruiser Fuel Pump Module Assembly
Vehicle Fitment- 2004 Chrysler PT Cruiser | All Trims | 4 Cyl 2.4L
$188.51
Autobest® Fuel Pump Module Assembly for 2004 Chrysler PT Cruiser
PartNumber: F3101AProduct Specifications- Notes: From 11/10/03;Includes Fuel Pump, Fuel Pressure Regulator, Sending Unit, Float, Fuel Reservoir and Fuel Strainer
- Gasket or Seal Included: Yes
- Inlet Size: 0.314
- Inlet Type: Strainer
- Internal or External: Internal
- Maximum Free Flow (GPH): 66
- Maximum Pump Pressure (PSI): 62.35
- Minimum Free Flow (GPH): 58.1
- Minimum Pump Pressure (PSI): 59.45
- Outlet Size: 0.374
- Outlet Type: Quick Connect
- Pump Type: Turbine
- Regulator Included: No
- UPC: 072845131010
- Part Description: 2004 Chrysler PT Cruiser Fuel Pump Module Assembly
Vehicle Fitment- 2004 Chrysler PT Cruiser | All Trims | 4 Cyl 2.4L
$87.33
Autobest® Fuel Pump and Strainer Set for 2004 Chrysler PT Cruiser
PartNumber: F3217Product Specifications- Notes: From 11/10/03;Includes Tank Seal and Fuel Strainer
- Gasket or Seal Included: No
- Inlet Size: 0.433
- Inlet Type: Strainer
- Internal or External: Internal
- Maximum Free Flow (GPH): 76.5
- Maximum Pump Pressure (PSI): 130.5
- Minimum Free Flow (GPH): 68.6
- Minimum Pump Pressure (PSI): 87
- Outlet Size: 0.413
- Outlet Type: Hose
- Pump Type: Turbine
- Regulator Included: No
- UPC: 072845132178
- Part Description: 2004 Chrysler PT Cruiser Fuel Pump and Strainer Set
Vehicle Fitment- 2004 Chrysler PT Cruiser | All Trims | 4 Cyl 2.4L
$41.69
Autobest® Fuel Pump and Strainer Set for 2004 Chrysler PT Cruiser
PartNumber: F3218Product Specifications- Notes: From 10/30/03;Includes Tank Seal and Fuel Strainer
- Gasket or Seal Included: Yes
- Inlet Size: 0.433
- Inlet Type: Strainer
- Internal or External: Internal
- Maximum Free Flow (GPH): 65
- Maximum Pump Pressure (PSI): 123.25
- Minimum Free Flow (GPH): 60
- Minimum Pump Pressure (PSI): 79.8
- Outlet Size: 0.394
- Outlet Type: Hose
- Pump Type: Turbine
- Regulator Included: No
- UPC: 072845132185
- Part Description: 2004 Chrysler PT Cruiser Fuel Pump and Strainer Set
Vehicle Fitment- 2004 Chrysler PT Cruiser | All Trims | 4 Cyl 2.4L
$27.28
OEM (Genuine) 2004 Chrysler PT Cruiser MODUL Kit-Fuel PUMP/LEVEL Unit
PartNumber: RL017204AE
Product Specifications- Notes: PT Cruiser; W/O Turbo
- Item Dimensions: 17.7 x 12.3 x 7.1 inches
- Item Weight: 3.70 Pounds
- Replaced by: 5017204AE
- Part Description: 2004 Chrysler PT Cruiser MODUL Kit-Fuel PUMP/LEVEL Unit
Vehicle Fitment- 2004 Chrysler PT Cruiser | Base, Dream, Limited, Touring | 4 Cyl 2.4 L GAS
$426.53 MSRP:$649.00You Save: $222.47 (35%)
OEM (Genuine) 2004 Chrysler PT Cruiser Fuel Pump/Level Unit Module Kit
PartNumber: 5017204AE
Product Specifications- Notes: PT Cruiser; W/O Turbo
- Other Names: Fuel Pump, Fuel Pump Assembly
- Item Dimensions: 17.5 x 6.6 x 12.2 inches
- Item Weight: 3.60 Pounds
- Fitment Type: Direct Replacement
- Replaces: 5017204AC, 5017204AD, RL017204AE
- Part Description: 2004 Chrysler PT Cruiser Fuel Pump/Level Unit Module Kit
Vehicle Fitment- 2004 Chrysler PT Cruiser | Base, Dream, Limited, Touring | 4 Cyl 2.4 L GAS
$426.53 MSRP:$649.00You Save: $222.47 (35%)
Autobest® Electric Fuel Pump for 2004 Chrysler PT Cruiser
PartNumber: F3102AProduct Specifications- Notes: Includes Fuel Pump, Fuel Pressure Regulator, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal,Turbocharged;TO 11/9/03
- Gasket or Seal Included: Yes
- Height (in.): 7
- Inlet Type: Strainer
- Length (in.): 12
- Life Cycle Status Code: Available to Order
- Maximum Pump Pressure (PSI): 58
- Minimum Pump Pressure (PSI): 58
- Outlet Size: 3/8
- Outlet Type: Quick Connect
- Package Contents: Fuel Pump Module Assembly
- Short Description: Electric Fuel Pump
- UPC: 072845131027
- Weight (lbs.): 3.33
- Width (in.): 7
- Part Description: 2004 Chrysler PT Cruiser Electric Fuel Pump
Vehicle Fitment- 2004 Chrysler PT Cruiser | All Trims | 4 Cyl 2.4L
$103.68

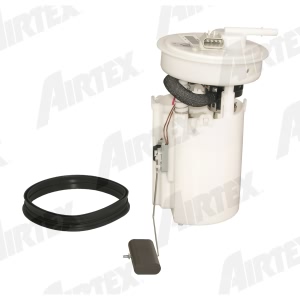

Airtex® In-Tank Fuel Pump Module Assembly for 2004 Chrysler PT Cruiser
PartNumber: E7191MProduct Specifications- Notes: To 11/09/2003
- Gasket Included: Y
- Hazardous Material: No
- Inlet Count: 1
- Inlet Type: Strainer
- Item Grade: Standard Replacement
- Maximum Free Flow Rate (gph): 65
- Maximum Pressure Rate (psi): 58
- Minimum Free Flow Rate (gph): 55
- Minimum Pressure Rate (psi): 58
- Outlet Count: 1
- Outlet Size: 3/8"
- Outlet Type: Quick Connect
- Package Contents: Pump & Kit
- Package Quantity: 1
- Warranty: Lifetime Limited Warranty
- Part Description: 2004 Chrysler PT Cruiser In-Tank Fuel Pump Module Assembly
Vehicle Fitment- 2004 Chrysler PT Cruiser | All Trims | 4 Cyl 2.4L
Airtex® In-Tank Fuel Pump Module Assembly for 2004 Chrysler PT Cruiser
PartNumber: E7189MProduct Specifications- Notes: From 10/30/2003
- Gasket Included: Y
- Hazardous Material: No
- Inlet Count: 1
- Inlet Type: Strainer
- Item Grade: Standard Replacement
- Maximum Free Flow Rate (gph): 60
- Maximum Pressure Rate (psi): 115
- Minimum Free Flow Rate (gph): 50
- Minimum Pressure Rate (psi): 95
- Outlet Count: 1
- Outlet Size: 3/8"
- Outlet Type: Quick Connect
- Package Contents: Pump & Kit
- Package Quantity: 1
- Warranty: Lifetime Limited Warranty
- Part Description: 2004 Chrysler PT Cruiser In-Tank Fuel Pump Module Assembly
Vehicle Fitment- 2004 Chrysler PT Cruiser | All Trims | 4 Cyl 2.4L
Airtex® In-Tank Fuel Pump and Strainer Set for 2004 Chrysler PT Cruiser
PartNumber: E7206Product Specifications- Notes: From 11/10/2003
- Gasket Included: Y
- Hazardous Material: No
- Inlet Count: 1
- Inlet Type: Strainer
- Item Grade: Standard Replacement
- Maximum Free Flow Rate (gph): 95
- Maximum Pressure Rate (psi): 120
- Minimum Free Flow Rate (gph): 90
- Minimum Pressure Rate (psi): 110
- Outlet Count: 1
- Outlet Size: 5/16
- Outlet Type: Barbed
- Package Contents: Pump & Kit
- Package Quantity: 1
- UPC: 080044016335
- Warranty: Lifetime Limited Warranty
- Part Description: 2004 Chrysler PT Cruiser In-Tank Fuel Pump and Strainer Set
Vehicle Fitment- 2004 Chrysler PT Cruiser | All Trims | 4 Cyl 2.4L
Denso® Fuel Pump and Strainer Set for 2004 Chrysler PT Cruiser
PartNumber: 950-3028Product Specifications- Notes: From 10/30/03; OE / OES Replacement Fuel Pump & Strainer Kit;From 10/30/2003; OE Replacement Fuel Pump & Strainer Kit;From 11/10/2003; OE Replacement Fuel Pump & Strainer Kit;From 11/10/03; OE / OES Replacement Fuel Pump & Strainer Kit
- Fuel Pump Type: Electrical
- Gaskets Included: Yes
- Internet Product Code (IPC): 6BBE70FE131
- Item Grade: Premium Replacement
- Item has MSDS (SDS): Y
- MFG Brand Name: DENSO Auto Parts
- MFG Model # (Series): 950-3028
- MFG Name: DENSO
- Package Contents: Fuel Pump Kit
- Pump Placement: In Tank
- Strainer Fitting Diameter: 0.43
- Strainer Length: 118.0
- Strainer Width: 4.33
- Supplier Company Name: DENSO
- UPC: 042511170841
- Part Description: 2004 Chrysler PT Cruiser Fuel Pump and Strainer Set
Vehicle Fitment- 2004 Chrysler PT Cruiser | All Trims | 4 Cyl 2.4L

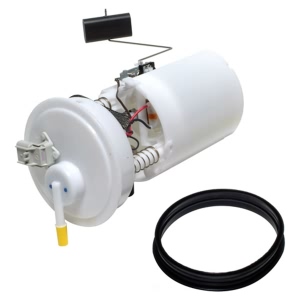

Denso® Fuel Pump Module Assembly for 2004 Chrysler PT Cruiser
PartNumber: 953-3032Product Specifications- Notes: To 10/30/2003; OE Replacement Module Assy
- Gaskets Included: Yes
- Internet Product Code (IPC): 22ECB0F0BA4
- Item Grade: Premium Replacement
- Item has MSDS (SDS): Y
- MFG Brand Name: DENSO Auto Parts
- MFG Model # (Series): 953-3032
- MFG Name: DENSO
- Package Contents: Fuel Pump Module
- Supplier Company Name: DENSO
- Universal Or Specific Fit: Specific
- UPC: 042511105973
- Part Description: 2004 Chrysler PT Cruiser Fuel Pump Module Assembly
Vehicle Fitment- 2004 Chrysler PT Cruiser | All Trims | 4 Cyl 2.4L
OEM (Genuine) 2004 Chrysler PT Cruiser Modul Pkg-Fuel Pump/Level Unit
PartNumber: 5114545AAProduct Specifications- Notes: W/O Turbo
- Part Description: 2004 Chrysler PT Cruiser Modul Pkg-Fuel Pump/Level Unit
Vehicle Fitment- 2004 Chrysler PT Cruiser | Base, Limited, Touring | 4 Cyl 2.4 L GAS
Denso® Fuel Pump Module Assembly for 2004 Chrysler PT Cruiser
PartNumber: 953-3046Product Specifications- Notes: To 11/10/2003; OE Replacement Module Assy
- Gaskets Included: Yes
- Internet Product Code (IPC): 644671213F1
- Item Grade: Premium Replacement
- Item has MSDS (SDS): Y
- MFG Brand Name: DENSO Auto Parts
- MFG Model # (Series): 953-3046
- MFG Name: DENSO
- Package Contents: Fuel Pump Module
- Supplier Company Name: DENSO
- Universal Or Specific Fit: Specific
- UPC: 042511106116
- Part Description: 2004 Chrysler PT Cruiser Fuel Pump Module Assembly
Vehicle Fitment- 2004 Chrysler PT Cruiser | All Trims | 4 Cyl 2.4L
OEM (Genuine) 2004 Chrysler PT Cruiser Modul Pkg-Fuel Pump/Level Unit
PartNumber: 5114547AAProduct Specifications- Notes: PT Cruiser; W/Turbo
- Other Names: Fuel Pump Assembly
- Part Description: 2004 Chrysler PT Cruiser Modul Pkg-Fuel Pump/Level Unit
Vehicle Fitment- 2004 Chrysler PT Cruiser | Dream Cruiser, GT, Limited, Street Cruiser, Touring | 4 Cyl 2.4 L GAS
Denso® Fuel Pump Module Assembly for 2004 Chrysler PT Cruiser
PartNumber: 953-3057Product Specifications- Notes: From 10/30/2003; OE Replacement Module Assy;From 11/10/2003; OE Replacement Module Assy
- Gaskets Included: Yes
- Internet Product Code (IPC): CC588926362
- Item Grade: Premium Replacement
- Item has MSDS (SDS): Y
- MFG Brand Name: DENSO Auto Parts
- MFG Model # (Series): 953-3057
- MFG Name: DENSO
- Package Contents: Fuel Pump Module
- Supplier Company Name: DENSO
- Universal Or Specific Fit: Specific
- UPC: 042511173774
- Part Description: 2004 Chrysler PT Cruiser Fuel Pump Module Assembly
Vehicle Fitment- 2004 Chrysler PT Cruiser | All Trims | 4 Cyl 2.4L
Airtex® In-Tank Fuel Pump Module Assembly for 2004 Chrysler PT Cruiser
PartNumber: E7143MProduct Specifications- Notes: To 10/30/2003
- Gasket or Seal Included: Yes
- Inlet Attachment: Inlet-Strainer
- Inlet Size: Inlet-3/8
- Inlet Type: STRAINER
- Internal or External: Internal
- Internet Product Code (IPC): 5FFD40405BC
- Item Grade: OEM Standard Part
- Item has MSDS (SDS): No
- Maximum Pressure (psi): 95
- MFG Brand Name: Airtex Products
- MFG Model # (Series): E7143M
- Minimum Pressure (psi): 58.0
- Outlet Attachment: Outlet-QuickConnect
- Outlet Size: Outlet - 3/8
- Outlet Type: QUICK CONNECT
- Package Contents: PUMP & KIT
- Package Quantity: 1
- Pump Type: Electrical
- Supplier Company Name: Airtex Products
- UPC: 080044531494
- Voltage [V]: 12V
- Wiring Harness Included: No
- Part Description: 2004 Chrysler PT Cruiser In-Tank Fuel Pump Module Assembly
Vehicle Fitment- 2004 Chrysler PT Cruiser | All Trims | 4 Cyl 2.4L
OEM (Genuine) 2004 Chrysler PT Cruiser Modul Pkg-Fuel Pump/Level Unit
PartNumber: 5114547AKProduct Specifications- Notes: W/Turbo
- Other Names: Fuel Pump, Fuel Pump Assembly
- Item Dimensions: 16.6 x 11.6 x 6.5 inches
- Item Weight: 13.90 Pounds
- Replaces: 5114547AD, 5114547AC, 5114547AI, 5114547AF, 5114547AE, 5114547AG, 5114547AH, 5114547AJ, RL114547AG
- Part Description: 2004 Chrysler PT Cruiser Modul Pkg-Fuel Pump/Level Unit
Vehicle Fitment- 2004 Chrysler PT Cruiser | Base, Dream Cruiser, GT, Limited, Street Cruiser, Touring | 4 Cyl 2.4 L GAS
Airtex® Electric Fuel Pump for 2004 Chrysler PT Cruiser
PartNumber: E7190MProduct Specifications- Notes: From 11/10/2003
- Gasket or Seal Included: No
- Inlet Attachment: Strainer
- Inlet Type: STRAINER
- Internal or External: Internal
- Internet Product Code (IPC): 5B6C5E90DB5
- Item Grade: STANDARD REPLACEMENT
- Item has MSDS (SDS): No
- Maximum Pressure (psi): 115
- MFG Brand Name: Airtex Products
- MFG Model # (Series): E7190M
- Minimum Pressure (psi): 95
- Outlet Attachment: Quick Connect
- Outlet Type: QUICK CONNECT
- Package Contents: PUMP & KIT
- Package Quantity: 1
- Pump Type: Electrical
- Supplier Company Name: Airtex Products
- UPC: 080044012313
- Voltage [V]: 12V
- Wiring Harness Included: No
- Part Description: 2004 Chrysler PT Cruiser Electric Fuel Pump
Vehicle Fitment- 2004 Chrysler PT Cruiser | All Trims | 4 Cyl 2.4L
