Delphi® Fuel Pump Module Assembly for 2002 Dodge Dakota
PartNumber: FG0235Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 6
- Flow Rating: 28 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: External
- Item Grade: Standard Replacement
- Maximum Pressure: 73.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 1
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: Yes
- Resistance Ohms Empty: 224.0
- Resistance Ohms Full: 19.0
- Strainer Included: Yes
- System Pressure: 49 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604061725
- Vapor Pressure Sensor: No
- Voltage: 12.0 VDC
- Part Description: 2002 Dodge Dakota Fuel Pump Module Assembly
Vehicle Fitment- 2002 Dodge Dakota | All Trims | 4 Cyl 2.5L
- 2002 Dodge Dakota | All Trims | 6 Cyl 3.9L
- 2002 Dodge Dakota | All Trims | 8 Cyl 5.9L
- 2002 Dodge Dakota | All Trims | 8 Cyl 4.7L
$175.82
Autobest® Fuel Pump Module Assembly for 2002 Dodge Dakota
PartNumber: F3127AProduct Specifications- Notes: Includes Fuel Pump, Fuel Pressure Regulator, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal;w/22 Gallon Tank
- Average Current Draw(A): 8
- Average Flow Rating(GPH): 30.4
- Connector Gender: Female
- Connector Quantity: 1
- Connector Shape: Rectangle
- Country of Orign: China
- Fuel Filter Included: No
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: No
- Fuel Type: Rollervane
- Gasket or Seal Included: Yes
- Gasket Or Seal Material: FKM
- Grade Type: Regular
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Size: 0.433
- Inlet Type: Strainer
- Installation Warnings: No
- Internal or External: Internal
- Internal Or External Strainer: Internal
- Lock Ring Included: No
- Maximum Free Flow (GPH): 52.2
- Maximum Pump Pressure (PSI): 52.8
- Minimum Free Flow (GPH): 42.2
- Minimum Pump Pressure (PSI): 48.7
- Mounting Hardware Included: No
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Size: 3/8
- Outlet Type: Quick Connect
- Product Height (in): 5.98
- Product Length (in): 17.13
- Product Width (in): 8.94
- Pump Type: Rollervane
- Regulator Included: Yes
- Resistance Ohms Empty: 224
- Resistance Ohms Full: 24
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: PIN
- UPC: 00072845131270
- Voltage: 12V
- Weight (lbs): 3.67
- Wire Harness Included: No
- Part Description: 2002 Dodge Dakota Fuel Pump Module Assembly
Vehicle Fitment- 2002 Dodge Dakota | All Trims | 4 Cyl 2.5L
- 2002 Dodge Dakota | All Trims | 6 Cyl 3.9L
- 2002 Dodge Dakota | All Trims | 8 Cyl 5.9L
- 2002 Dodge Dakota | All Trims | 8 Cyl 4.7L
$102.23
Delphi® Fuel Pump Module Assembly for 2002 Dodge Dakota
PartNumber: FG1081Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 6
- Flow Rating: 27 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: External
- Item Grade: Standard Replacement
- Maximum Pressure: 51.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 1
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: Yes
- Resistance Ohms Empty: 220.0
- Resistance Ohms Full: 20.0
- Strainer Included: Yes
- System Pressure: 44 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Pin
- UPC: 689604218655
- Vapor Pressure Sensor: No
- Voltage: 12.0 VDC
- Part Description: 2002 Dodge Dakota Fuel Pump Module Assembly
Vehicle Fitment- 2002 Dodge Dakota | All Trims | 6 Cyl 3.9L
- 2002 Dodge Dakota | All Trims | 8 Cyl 4.7L
- 2002 Dodge Dakota | All Trims | 8 Cyl 5.9L
$170.20
Autobest® Fuel Pump Module Assembly for 2002 Dodge Dakota
PartNumber: F3139AProduct Specifications- Notes: Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal;Drop Tank and clean before replacing fuel pump;w/24 Gallon Tank
- Average Current Draw(A): 9
- Average Flow Rating(GPH): 48
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Rectangle
- Country of Orign: China
- Fuel Filter Included: No
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: No
- Fuel Type: Turbine
- Gasket or Seal Included: Yes
- Gasket Or Seal Material: NBR
- Grade Type: Performance
- Housing Material: Aluminium
- In Tank or External: In Tank
- Inlet Size: 0.433
- Inlet Type: Strainer
- Installation Warnings: No
- Internal or External: Internal
- Internal Or External Strainer: External and Internal
- Lock Ring Included: No
- Maximum Free Flow (GPH): 65
- Maximum Pump Pressure (PSI): 100
- Minimum Free Flow (GPH): 55
- Minimum Pump Pressure (PSI): 80
- Mounting Hardware Included: No
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Size: 3/8
- Outlet Type: Quick Connect
- Product Height (in): 5.71
- Product Length (in): 10.43
- Product Width (in): 9.84
- Pump Type: Turbine
- Regulator Included: Yes
- Resistance Ohms Empty: 220
- Resistance Ohms Full: 20
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: PIN
- UPC: 00072845131393
- Voltage: 12V
- Weight (lbs): 3.24
- Wire Harness Included: No
- Part Description: 2002 Dodge Dakota Fuel Pump Module Assembly
Vehicle Fitment- 2002 Dodge Dakota | All Trims | 6 Cyl 3.9L
- 2002 Dodge Dakota | All Trims | 8 Cyl 4.7L
- 2002 Dodge Dakota | All Trims | 8 Cyl 5.9L
$98.12

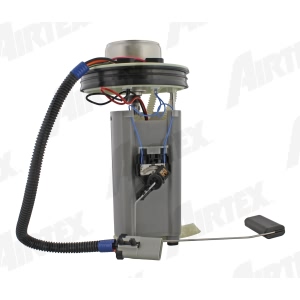

Airtex® In-Tank Fuel Pump Module Assembly for 2002 Dodge Dakota
PartNumber: E7116MProduct Specifications- Notes: w/22 Gallon Tank
- Gasket or Seal Included: Yes
- Inlet Attachment: Inlet-Strainer
- Inlet Type: STRAINER
- Internal or External: Internal
- Internet Product Code (IPC): 8F35D96C6B4
- Item Grade: STANDARD REPLACEMENT
- Item has MSDS (SDS): No
- Maximum Pressure (psi): 110
- MFG Brand Name: Airtex Products
- MFG Model # (Series): E7116M
- Minimum Pressure (psi): 50.0
- Outlet Attachment: Outlet-QuickConnect
- Outlet Size: Outlet - 3/8
- Outlet Type: QUICK CONNECT
- Package Contents: Fuel Pump Module Assembly
- Package Quantity: 1
- Pump Type: Electrical
- Supplier Company Name: Airtex Products
- UPC: 080044380672
- Voltage [V]: 12V
- Wiring Harness Included: No
- Part Description: 2002 Dodge Dakota In-Tank Fuel Pump Module Assembly
Vehicle Fitment- 2002 Dodge Dakota | All Trims | 4 Cyl 2.5L
- 2002 Dodge Dakota | All Trims | 6 Cyl 3.9L
- 2002 Dodge Dakota | All Trims | 8 Cyl 5.9L
- 2002 Dodge Dakota | All Trims | 8 Cyl 4.7L
Airtex® In-Tank Fuel Pump Module Assembly for 2002 Dodge Dakota
PartNumber: E7128MNProduct Specifications- Notes: w/24 Gallon Tank
- Gasket or Seal Included: Yes
- Inlet Attachment: Inlet-Strainer
- Inlet Type: STRAINER
- Internal or External: Internal
- Internet Product Code (IPC): 27D59A3970D
- Item Grade: STANDARD REPLACEMENT
- Item has MSDS (SDS): No
- Maximum Pressure (psi): 95
- MFG Brand Name: Airtex Products
- MFG Model # (Series): E7128MN
- Minimum Pressure (psi): 80.0
- Outlet Attachment: Outlet-QuickConnect
- Outlet Size: 3/8
- Outlet Type: QUICK CONNECT
- Package Contents: Fuel Pump Module Assembly
- Package Quantity: 1
- Pump Type: Electrical
- Supplier Company Name: Airtex Products
- UPC: 080044011781
- Voltage [V]: 12V
- Wiring Harness Included: Yes
- Part Description: 2002 Dodge Dakota In-Tank Fuel Pump Module Assembly
Vehicle Fitment- 2002 Dodge Dakota | All Trims | 6 Cyl 3.9L
- 2002 Dodge Dakota | All Trims | 8 Cyl 4.7L
- 2002 Dodge Dakota | All Trims | 8 Cyl 5.9L
OEM (Genuine) 2002 Dodge Dakota Module-Fuel Pump/Level Unit
PartNumber: 5012273AF
Product Specifications- Notes: 22 Gallon Tank
- Other Names: Fuel Pump
- Item Dimensions: 18.2 x 12.5 x 7.1 inches
- Item Weight: 4.50 Pounds
- Replaces: 5012273AB, 5012273AD, 5012273AE, 5012273AC, 52102193AB, 5012273AA
- Part Description: 2002 Dodge Dakota Module-Fuel Pump/Level Unit
Vehicle Fitment- 2002 Dodge Dakota | Base, R/T, SLT, Sport, SXT | 4 Cyl 2.5 L GAS, 6 Cyl 3.9 L GAS, 8 Cyl 4.7 L GAS, 8 Cyl 5.9 L GAS
Denso® Fuel Pump Module Assembly for 2002 Dodge Dakota
PartNumber: 953-3021Product Specifications- Notes: OE Replacement Module Assy
- Gaskets Included: Yes
- Internet Product Code (IPC): 84C5E867BBA
- Item Grade: Premium Replacement
- Item has MSDS (SDS): Y
- MFG Brand Name: DENSO Auto Parts
- MFG Model # (Series): 953-3021
- MFG Name: DENSO
- Package Contents: Fuel Pump Module
- Supplier Company Name: DENSO
- Universal Or Specific Fit: Specific
- UPC: 042511105867
- Part Description: 2002 Dodge Dakota Fuel Pump Module Assembly
Vehicle Fitment- 2002 Dodge Dakota | All Trims | 4 Cyl 2.5L
- 2002 Dodge Dakota | All Trims | 6 Cyl 3.9L
- 2002 Dodge Dakota | All Trims | 8 Cyl 5.9L
- 2002 Dodge Dakota | All Trims | 8 Cyl 4.7L
OEM (Genuine) 2002 Dodge Dakota Module-Fuel Pump/Level Unit
PartNumber: 5014884AGProduct Specifications- Notes: 24 Gallon Tank
- Other Names: Fuel Pump
- Item Weight: 2.90 Pounds
- Replaces: 5014884AE, 5014884AF, 5014884AD
- Part Description: 2002 Dodge Dakota Module-Fuel Pump/Level Unit
Vehicle Fitment- 2002 Dodge Dakota | Base, R/T, SLT, Sport, SXT | 4 Cyl 2.5 L GAS, 6 Cyl 3.9 L GAS, 8 Cyl 4.7 L GAS, 8 Cyl 5.9 L GAS
OEM (Genuine) 2002 Dodge Dakota Fuel Pump
PartNumber: 5019177AAProduct Specifications- Notes: Dakota; All; 20 Gallon
- Part Description: 2002 Dodge Dakota Fuel Pump
Vehicle Fitment- 2002 Dodge Dakota | Base, R/T, SLT, Sport, SXT | 4 Cyl 2.5 L GAS, 6 Cyl 3.9 L GAS, 8 Cyl 4.7 L GAS, 8 Cyl 5.9 L GAS
