Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG1081 |

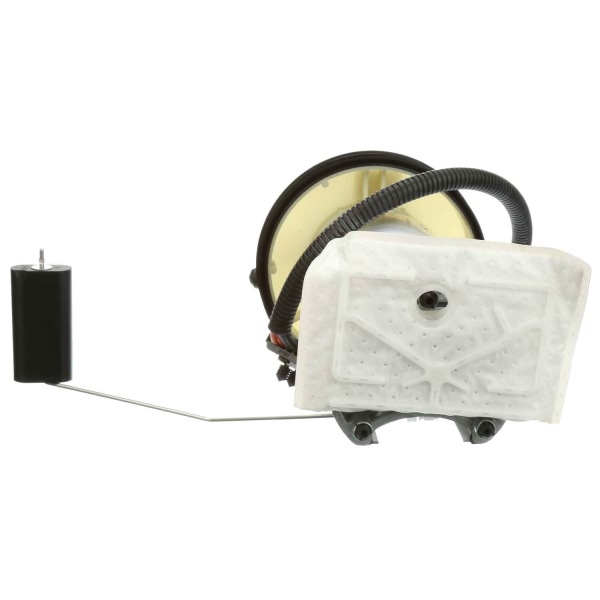

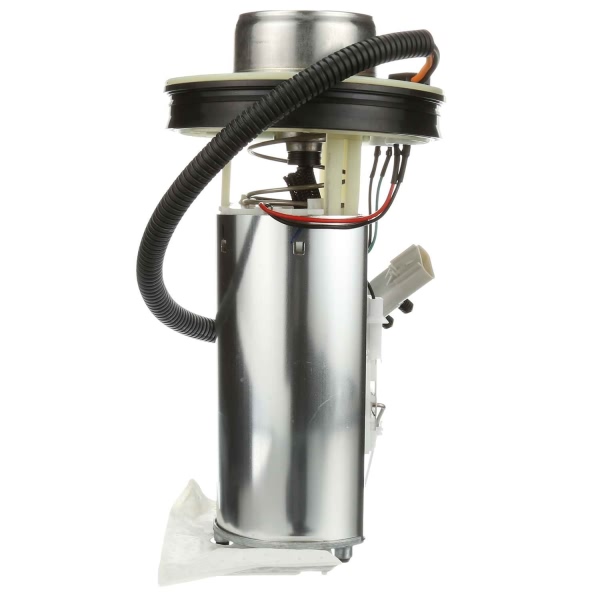

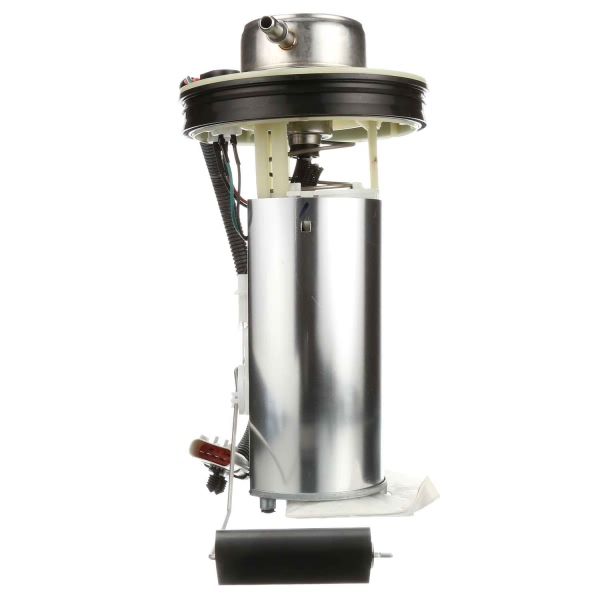

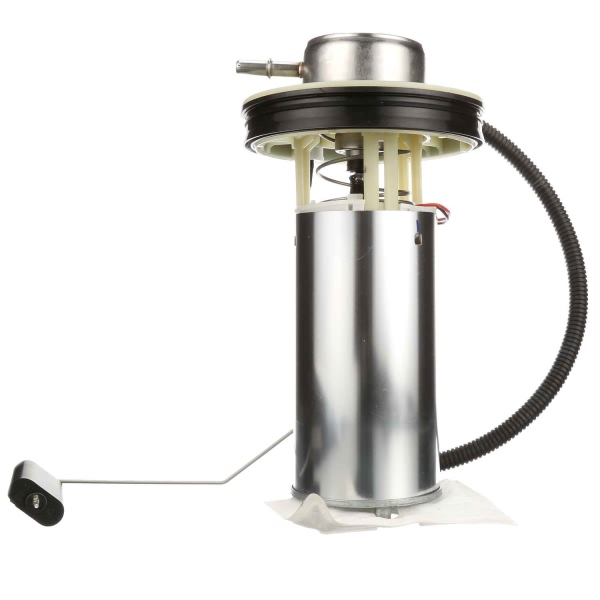

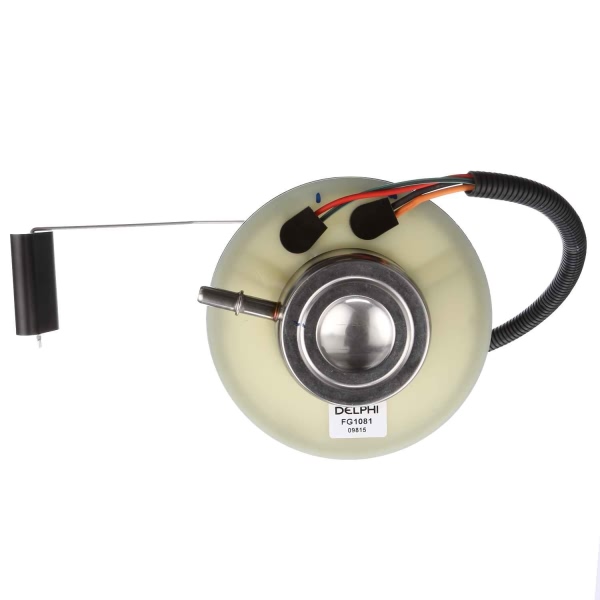

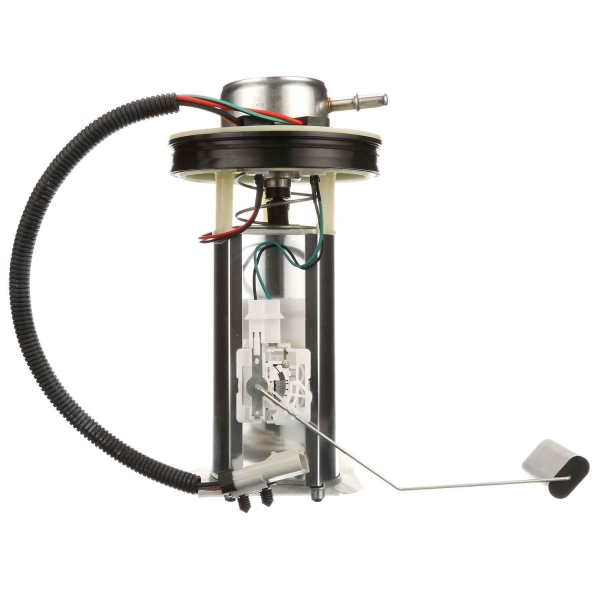

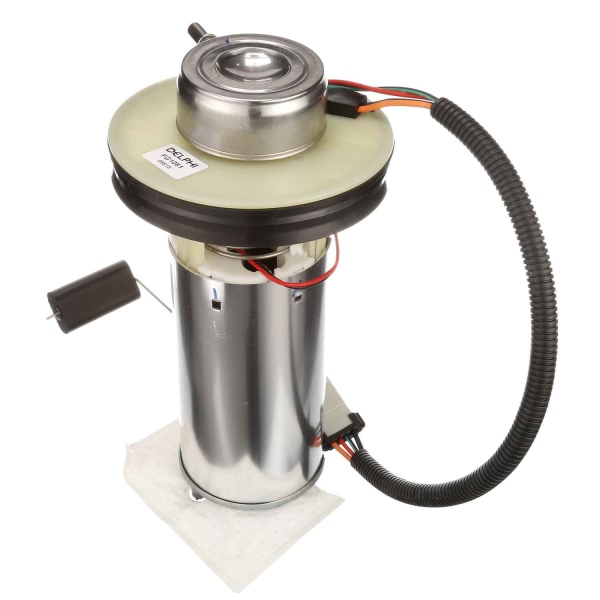

Part Description | Fuel Pump Module Assembly |
Current Draw | 6 |
Flow Rating | 27 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | Yes |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | External |
Item Grade | Standard Replacement |
Maximum Pressure | 51.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 1 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 220.0 |
Resistance Ohms Full | 20.0 |
Strainer Included | Yes |
System Pressure | 44 psi |

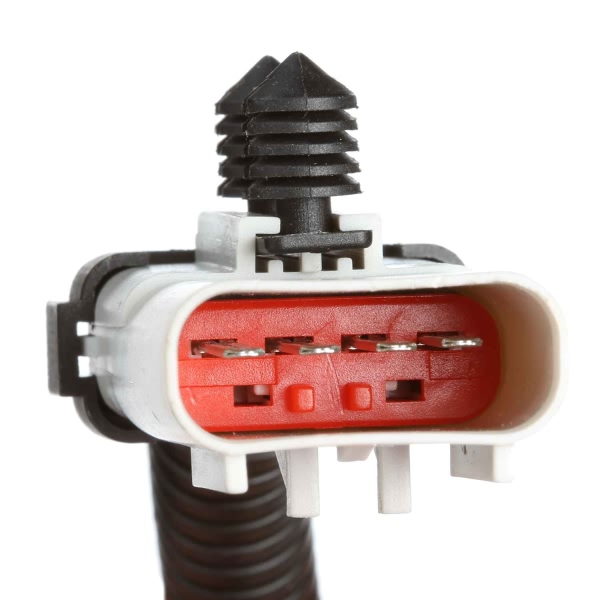

Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | Pin |
UPC | 689604218655 |
Vapor Pressure Sensor | No |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2000-2001 Dodge Dakota | All Trims | 4 Cyl 2.5L |
2000-2003 Dodge Dakota | All Trims | 6 Cyl 3.9L |
2000-2003 Dodge Dakota | All Trims | 8 Cyl 4.7L |
2000-2003 Dodge Dakota | All Trims | 8 Cyl 5.9L |
