Notes: with 35 Gallon Tank;Strainer is Inside the Module Assembly;RPO Code NL1;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Fuel Level Sender Assembly Included: Yes
Fuel Type: Diesel
Gasket or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: Internal
Item Grade: Standard Replacement
Outlet Outside Diameter: 0.375''
Outlet Quantity: 2
Outlet Type: Quick Connect
Regulator Included: No
Resistance Ohms Empty: 40.0
Resistance Ohms Full: 250.0
Strainer Included: Yes
Terminal Gender: Male
Terminal Quantity: 4
Terminal Type: Blade
UPC: 689604060186
Vapor Pressure Sensor: No

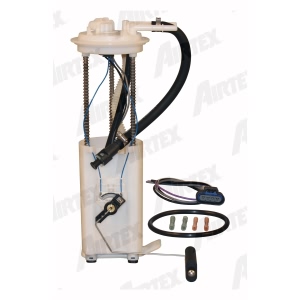

Part Description: 2001 GMC Savana 2500 Fuel Pump Module Assembly
Notes: w/GVW under 8500lb; w/o Fitting for Take Off Fuel Line (RPO Code: 7T6); Includes Wiring Harness, Terminals & Tank Seal; w/2 Electrical Connectors
Notes: Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer, Tank Seal and Upgraded Wiring Harness;w/Fuel Fitting For Auxiliary Power Units;w/Module Code VBX;Wiring Harness replacement recommended
Gasket or Seal Included: Yes
Inlet Size: 0.362
Inlet Type: Strainer
Internal or External: Internal
Maximum Free Flow (GPH): 55.5
Maximum Pump Pressure (PSI): 145
Minimum Free Flow (GPH): 45
Minimum Pump Pressure (PSI): 87
Outlet Size: 0.373
Outlet Type: Quick Connect
Pump Type: Turbine
Regulator Included: No
UPC: 072845125842
Part Description: 2001 GMC Savana 2500 Fuel Pump Module Assembly
Notes: Strainer is Inside the Module Assembly;RPO Code NE7;with 55 Gallon Tank;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Fuel Level Sender Assembly Included: Yes
Fuel Type: Diesel
Gasket or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: External
Item Grade: Standard Replacement
Outlet Outside Diameter: 0.375''
Outlet Quantity: 2
Outlet Type: Quick Connect
Regulator Included: No
Resistance Ohms Empty: 40.0
Resistance Ohms Full: 250.0
Strainer Included: Yes
Terminal Gender: Male
Terminal Quantity: 4
Terminal Type: Blade
UPC: 689604060193
Vapor Pressure Sensor: No
Part Description: 2001 GMC Savana 2500 Fuel Pump Module Assembly
Notes: Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer, Upgraded Wiring Harness and Tank Seal;w/2 Electrical Connectors;w/Module Code VAY;w/o Fuel Fitting For Auxiliary Power Units;w/Pressure Sensor
Gasket or Seal Included: Yes
Inlet Size: 0.362
Inlet Type: Strainer
Internal or External: Internal
Maximum Free Flow (GPH): 63.5
Maximum Pump Pressure (PSI): 145
Minimum Free Flow (GPH): 52.8
Minimum Pump Pressure (PSI): 87
Outlet Size: 0.373
Outlet Type: Quick Connect
Pump Type: Turbine
Regulator Included: No
UPC: 072845129826
Part Description: 2001 GMC Savana 2500 Fuel Pump Module Assembly
Notes: Over 8,500lb GVW;without Fitting for Take-Off Fuel Line;with Federal Emission System;RPO Code NA4, NF4 or NF2;Module has 1 Electrical Connector(s);without Evaporative Emission;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 10
Flow Rating: 32 gph
Fuel Level Sender Assembly Included: Yes
Fuel Type: Gas
Gasket or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: External
Item Grade: Standard Replacement
Maximum Pressure: 109.0 PSI
Outlet Outside Diameter: 0.375''
Outlet Quantity: 2
Outlet Type: Quick Connect
Pump Type: Electric
Regulator Included: No
Resistance Ohms Empty: 40.0
Resistance Ohms Full: 250.0
Strainer Included: Yes
System Pressure: 62 psi
Terminal Gender: Male
Terminal Quantity: 4
Terminal Type: Blade
UPC: 689604060353
Vapor Pressure Sensor: No
Voltage: 13.0 VDC
Part Description: 2001 GMC Savana 2500 Fuel Pump Module Assembly
Notes: Except California Models;Exc. Calif.;Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer, Upgraded Wiring Harness and Tank Seal;w/1 Electrical Connector;w/o Fuel Fitting For Auxiliary Power Units;w/o Pressure Sensor
Gasket or Seal Included: Yes
Inlet Size: 0.362
Inlet Type: Strainer
Internal or External: Internal
Maximum Free Flow (GPH): 63.5
Maximum Pump Pressure (PSI): 145
Minimum Free Flow (GPH): 52.8
Minimum Pump Pressure (PSI): 87
Outlet Size: 0.373
Outlet Type: Quick Connect
Pump Type: Turbine
Regulator Included: No
UPC: 072845129772
Part Description: 2001 GMC Savana 2500 Fuel Pump Module Assembly
Notes: with Evaporative Emission;without California Emission System;RPO Code EVA;Under 8,500lb GVW;without Fitting for Take-Off Fuel Line;RPO Code NC1;with California Emission System;Module has 2 Electrical Connector(s);Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 10
Flow Rating: 32 gph
Fuel Level Sender Assembly Included: Yes
Fuel Type: Gas
Gasket or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: Internal
Item Grade: Standard Replacement
Maximum Pressure: 109.0 PSI
Outlet Outside Diameter: 0.375''
Outlet Quantity: 2
Outlet Type: Quick Connect
Pump Type: Electric
Regulator Included: No
Resistance Ohms Empty: 40.0
Resistance Ohms Full: 250.0
Strainer Included: Yes
System Pressure: 62 psi
Terminal Gender: Male
Terminal Quantity: 4
Terminal Type: Blade
UPC: 689604060360
Vapor Pressure Sensor: Yes
Voltage: 13.0 VDC
Part Description: 2001 GMC Savana 2500 Fuel Pump Module Assembly
Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 2
Flow Rating: 32 gph
Fuel Type: Diesel
Gasket or Seal Included: No
In Tank or External: External
Inlet Fitting Thread Size: M16-1.5
Inlet Type: Female Threaded
Item Grade: Standard Replacement
Outlet Fitting Thread Size: M16 - 1.5
Outlet Type: Female Threaded
Pump Type: Electric
Strainer Included: No
System Pressure: 7 psi
Terminal Gender: Female
Terminal Quantity: 2
Terminal Type: Pin
UPC: 689604032633
Voltage: 12 VDC
Wiring Harness Included: No
Part Description: 2001 GMC Savana 2500 In Line Electric Fuel Pump
Notes: Under GVW 8,500lb, Exc Calif, w/o Fitting for Take Off Fuel Line; DENSO Solution Module Assy-Turbine Pump & Design Upgrade Over OE;Calif, w/o Fitting for Take Off Fuel Line; DENSO Solution Module Assy-Turbine Pump & Design Upgrade Over OE
Gaskets Included: Yes
Internet Product Code (IPC): FF26A098B44
Item Grade: Premium Replacement
Item has MSDS (SDS): Y
MFG Brand Name: DENSO Auto Parts
MFG Model # (Series): 953-0022
MFG Name: DENSO
Package Contents: Fuel Pump Module
Supplier Company Name: DENSO
Universal Or Specific Fit: Specific
UPC: 042511193406
Part Description: 2001 GMC Savana 2500 Fuel Pump Module Assembly
Notes: Calif, w/o Fitting for Take Off Fuel Line - Sell out reorder 953-0022;Under GVW 8,500lb, Exc Calif, w/o Fitting for Take Off Fuel Line - Sell out reorder 953-0022
Gaskets Included: Yes
Internet Product Code (IPC): 2F798B3B76C
Item Grade: Premium Replacement
Item has MSDS (SDS): Y
MFG Brand Name: DENSO Auto Parts
MFG Model # (Series): 953-5055
MFG Name: DENSO
Package Contents: Fuel Pump Module
Supplier Company Name: DENSO
UPC: 042511163690
Part Description: 2001 GMC Savana 2500 Fuel Pump Module Assembly
