Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F2551 |

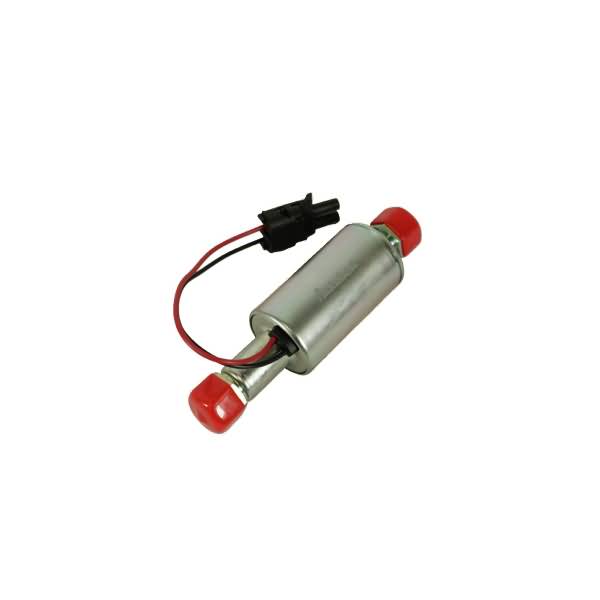

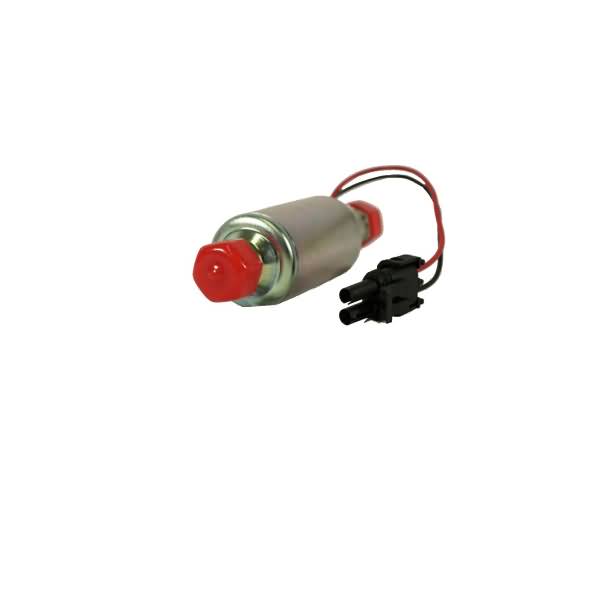

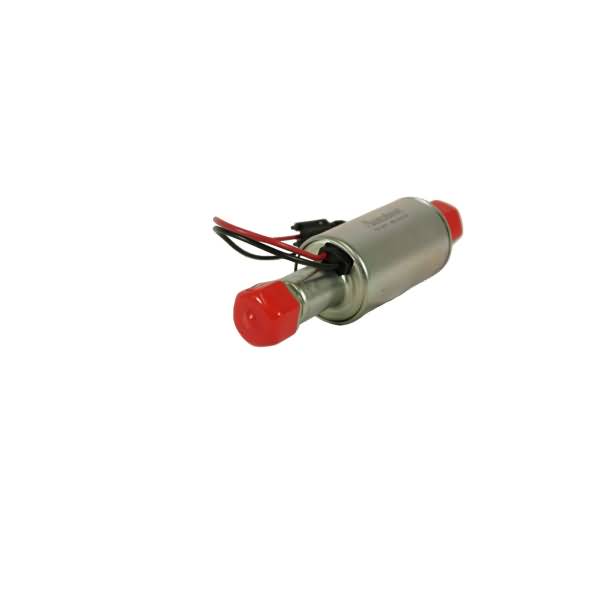

Part Description | Externally Mounted Electric Fuel Pump |
Average Current Draw(A) | 1.4 |
Average Flow Rating(GPH) | 95 |
Connector Gender | Male |
Connector Quantity | 1 |
Country of Orign | China |
Fuel Type | Sliding vane |
Gasket or Seal Included | Yes |
Gasket Or Seal Material | FKM |
In Tank or External | External |
Inlet Size | M16 x 1.5 |
Inlet Type | Female Thread |
Installation Warnings | No |
Internal or External | External |
Lock Ring Included | No |
Maximum Free Flow (GPH) | 35 |
Maximum Pump Pressure (PSI) | 12 |
Minimum Free Flow (GPH) | 25 |
Minimum Pump Pressure (PSI) | 8 |
Negative Ground | No |
Outlet Quantity | 1 |
Outlet Size | M16 x 1.5 |
Outlet Type | Female Threaded |
Product Height (in) | 1.49 |
Product Length (in) | 5.31 |
Product Width (in) | 1.49 |
Pump Type | SoleNoid |
Regulator Included | No |
Strainer Included | No |
Terminal Gender | Female |
Terminal Quantity | 2 |
Terminal Type | Wire |
UPC | 00072845125514 |
Voltage | 12V |
Weight (lbs) | 0.83 |
Wire Harness Included | Yes |
Year Make Model | Trim | Engine |
---|---|---|
1999-2000 Chevrolet C2500 | All Trims | 8 Cyl 6.5L |
1999-2000 Chevrolet C3500 | All Trims | 8 Cyl 5.7L |
1999-2000 Chevrolet C3500 | All Trims | 8 Cyl 6.5L |
1999-2002 Chevrolet Express 2500 | All Trims | 8 Cyl 6.5L |
1999-2002 Chevrolet Express 3500 | All Trims | 8 Cyl 6.5L |
1999-2000 Chevrolet K2500 | All Trims | 8 Cyl 6.5L |
1999-2000 Chevrolet K3500 | All Trims | 8 Cyl 5.7L |
1999-2000 Chevrolet K3500 | All Trims | 8 Cyl 6.5L |
1999-2000 Chevrolet K3500 | All Trims | 8 Cyl 7.4L |
1999 Chevrolet P30 | All Trims | 8 Cyl 6.5L |
