OEM (Genuine) 1999 Cadillac Seville Fuel Pump
PartNumber: 19369904
Product Specifications- Notes: Seville
- Other Names: Fuel Pump, Fuel Pump Assembly, Sending Unit
- Item Dimensions: 17.0 x 8.2 x 5.8 inches
- Item Weight: 3.20 Pounds
- Fitment Type: Direct Replacement
- Replaces: 25361858, 25322892, 25330716, 25330718, 88963646, 88963641, 25335916, 25335955, 25326332, 25177436, 25335915, 25335917, 25335956, 19331255, 25326334, 25322893, 25335914, 88963644, 25361862, 25177438, 19180115
- Part Description: 1999 Cadillac Seville Fuel Pump
Vehicle Fitment- 1999 Cadillac Seville | SLS, STS | 8 Cyl 4.6 L GAS
$305.30 MSRP:$576.04You Save: $270.74 (48%)

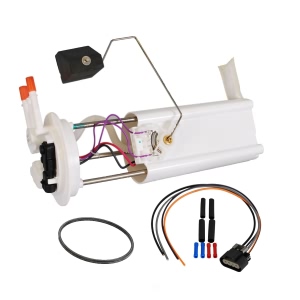

Delphi® Fuel Pump Module Assembly for 1999 Cadillac Seville
PartNumber: FG0347Product Specifications- Notes: Updated design w/Check Valve. Can be used to replace fuel pump modules built w/or w/o check valve; Original OE design had a 2x2 connector, OE design upgraded to a 1x4 connector; A 1x4 splice kit included for vehicles w/2x2 connector; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 7
- Flow Rating: 22 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Maximum Pressure: 65.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 2
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: No
- Resistance Ohms Empty: 40.0
- Resistance Ohms Full: 250.0
- Strainer Included: Yes
- System Pressure: 52 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604095102
- Vapor Pressure Sensor: Yes
- Voltage: 12.0 VDC
- Part Description: 1999 Cadillac Seville Fuel Pump Module Assembly
Vehicle Fitment- 1999 Cadillac Seville | All Trims | 8 Cyl 4.6L
$226.60
Autobest® Fuel Pump Module Assembly for 1999 Cadillac Seville
PartNumber: F2544AProduct Specifications- Notes: Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer, Upgraded Wiring Harness and Tank Seal
- Average Current Draw(A): 9
- Average Flow Rating(GPH): 41
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Rectangle
- Country of Orign: China
- Fuel Filter Included: No
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: Yes
- Gasket or Seal Included: Yes
- Gasket Or Seal Material: NBR
- Grade Type: Regular
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Size: 5/16
- Inlet Type: Quick Connect
- Installation Warnings: No
- Lock Ring Included: No
- Maximum Pump Pressure (PSI): 145
- Minimum Pump Pressure (PSI): 87
- Mounting Hardware Included: No
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Size: 3/8
- Outlet Type: Quick Connect
- Product Height (in): 7.17
- Product Length (in): 13.78
- Product Width (in): 7.68
- Pump Type: Turbine
- Regulator Included: No
- Resistance Ohms Empty: 40
- Resistance Ohms Full: 250
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: PIN
- UPC: 00072845125446
- Voltage: 12V
- Weight (lbs): 2.27
- Wire Harness Included: Yes
- Part Description: 1999 Cadillac Seville Fuel Pump Module Assembly
Vehicle Fitment- 1999 Cadillac Seville | All Trims | 8 Cyl 4.6L
$69.30
Delphi® Fuel Pump Module Assembly for 1999 Cadillac Seville
PartNumber: FG0162Product Specifications- Notes: Original design w/o Check Valve. Must only be used to replace fuel pump modules built w/o check valve. If you are unsure if your module has a check valve, then use FG0347; Two port cover utilized for manufacturing only use the open port do not tamper w/plugged tube port; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 7
- Flow Rating: 22 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: External
- Item Grade: Standard Replacement
- Maximum Pressure: 109.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 2
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: No
- Resistance Ohms Empty: 40.0
- Resistance Ohms Full: 250.0
- Strainer Included: Yes
- System Pressure: 52 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604060995
- Vapor Pressure Sensor: Yes
- Voltage: 13.0 VDC
- Part Description: 1999 Cadillac Seville Fuel Pump Module Assembly
Vehicle Fitment- 1999 Cadillac Seville | All Trims | 8 Cyl 4.6L
$176.66
Autobest® Fuel Pump Module Assembly for 1999 Cadillac Seville
PartNumber: F2529AProduct Specifications- Notes: Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer, Upgraded Wiring Harness and Tank Seal.Fuel Sensor Design Provides Resistance To Corrosive Fuel Blends And Additives.
- Average Current Draw(A): 9
- Average Flow Rating(GPH): 41
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Rectangle
- Country of Orign: China
- Fuel Filter Included: No
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: Yes
- Gasket or Seal Included: Yes
- Gasket Or Seal Material: NBR
- Grade Type: Regular
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Size: 5/16
- Inlet Type: Quick Connect
- Installation Warnings: No
- Lock Ring Included: No
- Maximum Pump Pressure (PSI): 145
- Minimum Pump Pressure (PSI): 87
- Mounting Hardware Included: No
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Size: 3/8
- Outlet Type: Quick Connect
- Product Height (in): 7.17
- Product Length (in): 13.78
- Product Width (in): 7.68
- Pump Type: Turbine
- Regulator Included: No
- Resistance Ohms Empty: 40
- Resistance Ohms Full: 250
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: PIN
- UPC: 00072845125293
- Voltage: 12V
- Weight (lbs): 2.27
- Wire Harness Included: Yes
- Part Description: 1999 Cadillac Seville Fuel Pump Module Assembly
Vehicle Fitment- 1999 Cadillac Seville | All Trims | 8 Cyl 4.6L
$68.12

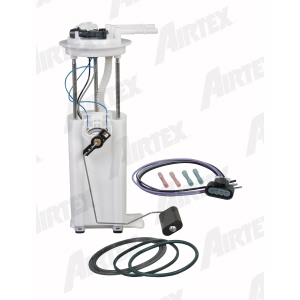

Airtex® In-Tank Fuel Pump Module Assembly for 1999 Cadillac Seville
PartNumber: E3518MProduct Specifications- Gasket Included: Y
- Hazardous Material: No
- Inlet Count: 1
- Inlet Type: Strainer
- Item Grade: Standard Replacement
- Maximum Free Flow Rate (gph): 50
- Maximum Pressure Rate (psi): 90
- Minimum Free Flow Rate (gph): 40
- Minimum Pressure Rate (psi): 80
- Outlet Count: 1
- Outlet Size: 3/8"
- Outlet Type: Quick Connect, Return Line
- Package Contents: Pump & Kit
- Package Quantity: 1
- UPC: 080044515654
- Warranty: Lifetime Limited Warranty
- Part Description: 1999 Cadillac Seville In-Tank Fuel Pump Module Assembly
Vehicle Fitment- 1999 Cadillac Seville | All Trims | 8 Cyl 4.6L

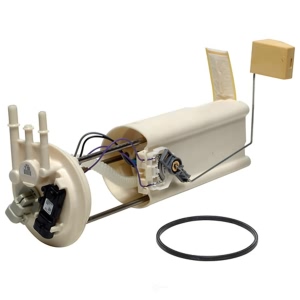

Denso® Fuel Pump Module for 1999 Cadillac Seville
PartNumber: 953-0032Product Specifications- Notes: DENSO Solution Module Assy-Turbine Pump & Design Upgrade Over OE
- Gaskets Included: Yes
- Internet Product Code (IPC): 75F8910A13F
- Item Grade: Premium Replacement
- Item has MSDS (SDS): Y
- MFG Brand Name: DENSO Auto Parts
- MFG Model # (Series): 953-0032
- MFG Name: DENSO
- Package Contents: Fuel Pump Module
- Supplier Company Name: DENSO
- Universal Or Specific Fit: Specific
- UPC: 042511193505
- Part Description: 1999 Cadillac Seville Fuel Pump Module
Vehicle Fitment- 1999 Cadillac Seville | All Trims | 8 Cyl 4.6L
Denso® Fuel Pump Module Assembly for 1999 Cadillac Seville
PartNumber: 953-5085Product Specifications- Notes: Sell Out Reorder 953-0032
- Gaskets Included: Yes
- Internet Product Code (IPC): 7ADEE24D99C
- Item Grade: Premium Replacement
- Item has MSDS (SDS): Y
- MFG Brand Name: DENSO Auto Parts
- MFG Model # (Series): 953-5085
- MFG Name: DENSO
- Package Contents: Fuel Pump Module
- Supplier Company Name: DENSO
- UPC: 042511163997
- Part Description: 1999 Cadillac Seville Fuel Pump Module Assembly
Vehicle Fitment- 1999 Cadillac Seville | All Trims | 8 Cyl 4.6L
