Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG0347 |

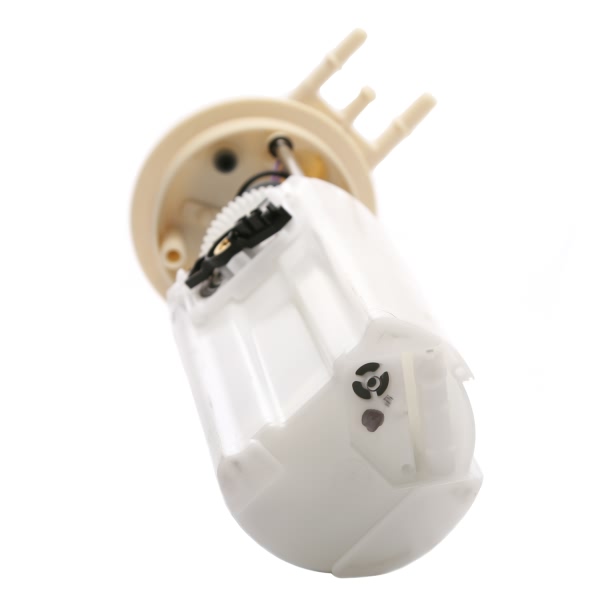

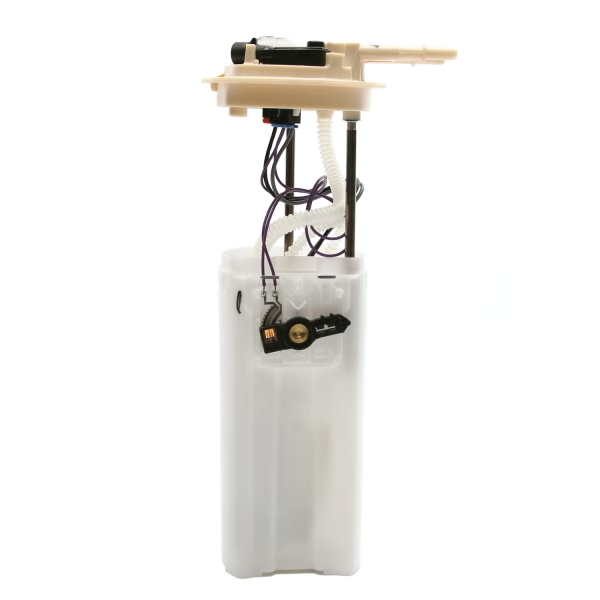

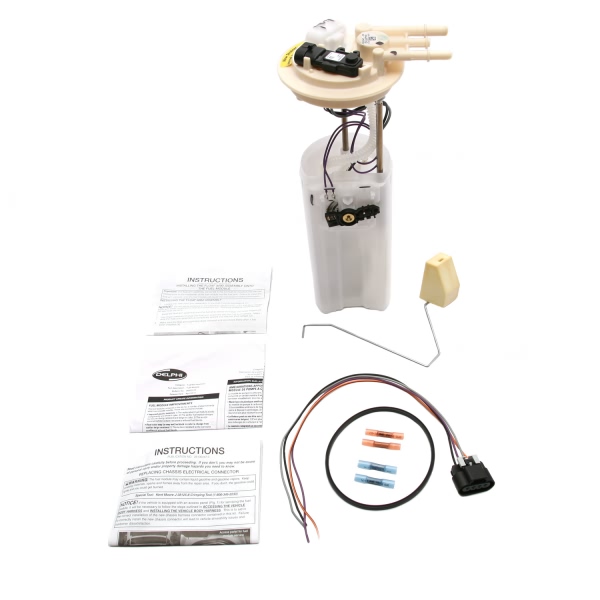

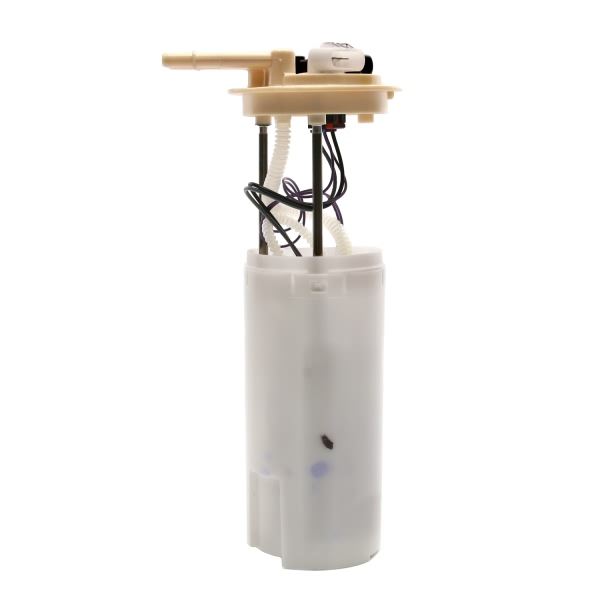

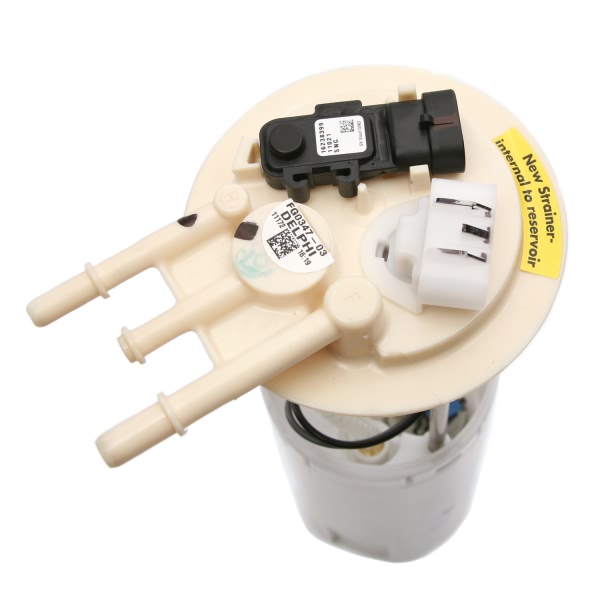

Part Description | Fuel Pump Module Assembly |
Current Draw | 7 |
Flow Rating | 22 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | Yes |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Maximum Pressure | 65.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 2 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | No |
Resistance Ohms Empty | 40.0 |
Resistance Ohms Full | 250.0 |
Strainer Included | Yes |
System Pressure | 52 psi |

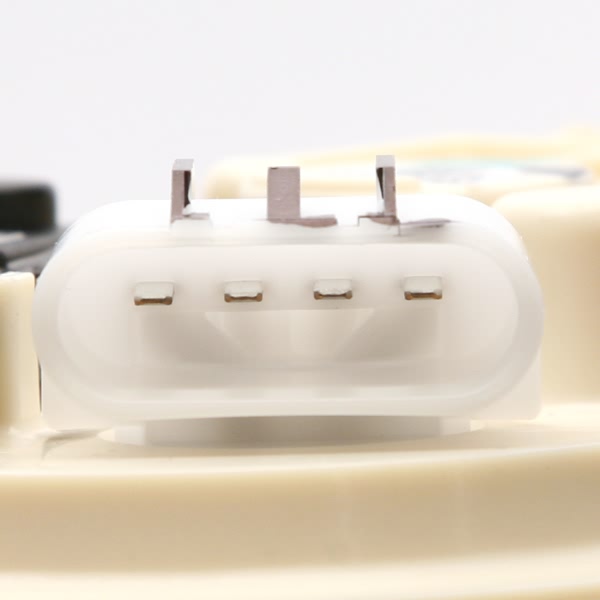

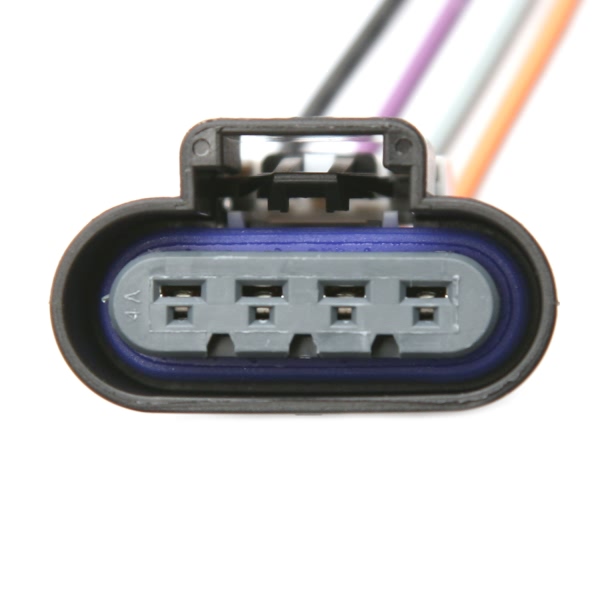

Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | Blade |
UPC | 689604095102 |
Vapor Pressure Sensor | Yes |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2000-2005 Buick LeSabre | All Trims | 6 Cyl 3.8L |
1998-2005 Buick Park Avenue | All Trims | 6 Cyl 3.8L |
2000-2005 Cadillac DeVille | All Trims | 8 Cyl 4.6L |
1998-2004 Cadillac Seville | All Trims | 8 Cyl 4.6L |
1998-1999 Oldsmobile Aurora | All Trims | 8 Cyl 4.0L |
2001-2002 Oldsmobile Aurora | All Trims | 6 Cyl 3.5L |
2001-2003 Oldsmobile Aurora | All Trims | 8 Cyl 4.0L |
2000-2005 Pontiac Bonneville | All Trims | 6 Cyl 3.8L |
2004-2005 Pontiac Bonneville | All Trims | 8 Cyl 4.6L |
