Dorman® Fuel Tank Sending Unit for 1997 Chevrolet Monte Carlo
PartNumber: 2630329Product Specifications- Connector Color: Black
- Connector Gender: Female
- Connector Shape: Square
- Height: 304 mm
- Housing Length: 168 mm
- Housing Material: Plastic (Polyoxymethylene)
- Housing Width: 92 mm
- Inlet Type: Jet
- Length: 600 mm
- Lock Ring Included: No
- Maximum Flow Rating: 180 LPH
- Maximum Pressure: 110 PSI
- OE Part Number: 19180098, 25323841, 25312608, 25180275, 25323829
- Outlet Diameter: 3/8''; 5/16''; 5/16''; 5/16''; 1/4''
- Outlet Quantity: 5
- Outlet Type: Female; Female; Female; Male; Female Quick Connects
- Seal Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Spade
- Top Mount Diameter: 112.5 mm
- Universal Or Specific Fit: Specific
- UPC: 747214303298
- Width: 154 mm
- Wire Gauge Measurement: 15 AWG; 17 AWG
- Wire Harness Length: 595 mm
- Wire Quantity: 7
- Part Description: 1997 Chevrolet Monte Carlo Fuel Tank Sending Unit
Vehicle Fitment- 1997 Chevrolet Monte Carlo | All Trims | 6 Cyl 3.1L
$187.35

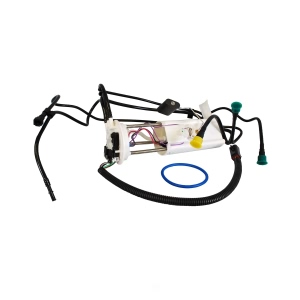

Delphi® Fuel Pump Module Assembly for 1997 Chevrolet Monte Carlo
PartNumber: FG0019Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 7
- Flow Rating: 17 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Maximum Pressure: 109.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 3
- Outlet Type: Female Quick Connect
- Pump Type: Electric
- Regulator Included: No
- Resistance Ohms Empty: 40.0
- Resistance Ohms Full: 250.0
- Strainer Included: Yes
- System Pressure: 54 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604059562
- Vapor Pressure Sensor: No
- Voltage: 12.0 VDC
- Part Description: 1997 Chevrolet Monte Carlo Fuel Pump Module Assembly
Vehicle Fitment- 1997 Chevrolet Monte Carlo | Z34 | 6 Cyl 3.4L
$255.32
Autobest® Fuel Pump Module Assembly for 1997 Chevrolet Monte Carlo
PartNumber: F2953AProduct Specifications- Notes: Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer, Upgraded Wiring Harness and Tank Seal
- Average Current Draw(A): 6.0
- Average Flow Rating(GPH): 120
- Connector Gender: male
- Connector Quantity:
- Connector Shape: Rectangle
- Country of Orign: China
- Fuel Filter Included: Yes
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: No
- Gasket or Seal Included: Yes
- Gasket Or Seal Material: Nitrile Rubber
- Grade Type:
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Size: 5/16
- Inlet Type: Quick Connect
- Installation Warnings:
- Internal or External: Internal
- Internal Or External Strainer: Outside and inside both have strainer
- Lock Ring Included: Yes
- Maximum Free Flow (GPH): 63.5
- Maximum Pump Pressure (PSI): 145
- Minimum Free Flow (GPH): 52.8
- Minimum Pump Pressure (PSI): 87
- Mounting Hardware Included: No
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Size: 3/8
- Outlet Type: Quick Connect
- Product Height (in): 7.5
- Product Length (in): 22
- Product Width (in): 12
- Pump Type: Turbine
- Regulator Included: No
- Resistance Ohms Empty: 40±3O
- Resistance Ohms Full: 250±5O
- Strainer Included: Yes
- Terminal Gender:
- Terminal Quantity: 4
- Terminal Type: QUICK CONNECTOR
- UPC: 00072845129536
- Voltage: 12V
- Weight (lbs): 2.67
- Wire Harness Included: No
- Part Description: 1997 Chevrolet Monte Carlo Fuel Pump Module Assembly
Vehicle Fitment- 1997 Chevrolet Monte Carlo | All Trims | 6 Cyl 3.4L
$88.78
Delphi® Fuel Pump Module Assembly for 1997 Chevrolet Monte Carlo
PartNumber: FG0150Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 7
- Flow Rating: 18 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Maximum Pressure: 109.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 3
- Outlet Type: Female Quick Connect
- Pump Type: Electric
- Regulator Included: No
- Resistance Ohms Empty: 40.0
- Resistance Ohms Full: 250.0
- Strainer Included: Yes
- System Pressure: 45 psi
- Terminal Gender: Male
- Terminal Quantity: 6
- Terminal Type: Pin
- UPC: 689604060872
- Vapor Pressure Sensor: Yes
- Voltage: 13.0 VDC
- Part Description: 1997 Chevrolet Monte Carlo Fuel Pump Module Assembly
Vehicle Fitment- 1997 Chevrolet Monte Carlo | All Trims | 6 Cyl 3.1L
$183.38
Autobest® Fuel Pump Module Assembly for 1997 Chevrolet Monte Carlo
PartNumber: F2952AProduct Specifications- Notes: Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer, Upgraded Wiring Harness and Tank Seal
- Average Current Draw(A): 9
- Average Flow Rating(GPH): 41
- Connector Gender: Female
- Connector Quantity: 1
- Connector Shape: Rectangle
- Country of Orign: China
- Fuel Filter Included: No
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: Yes
- Fuel Type: Turbine
- Gasket or Seal Included: Yes
- Gasket Or Seal Material: NBR
- Grade Type: Regular
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Size: 5/16
- Inlet Type: Quick Connect
- Installation Warnings: No
- Internal or External: Internal
- Lock Ring Included: No
- Maximum Free Flow (GPH): 63.5
- Maximum Pump Pressure (PSI): 145
- Minimum Free Flow (GPH): 52.8
- Minimum Pump Pressure (PSI): 87
- Mounting Hardware Included: No
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Size: 3/8
- Outlet Type: Quick Connect
- Product Height (in): 7
- Product Length (in): 16
- Product Width (in): 10.5
- Pump Type: Turbine
- Regulator Included: No
- Resistance Ohms Empty: 40
- Resistance Ohms Full: 250
- Strainer Included: Yes
- Terminal Gender: Female
- Terminal Quantity: 6
- Terminal Type: PIN
- UPC: 00072845129529
- Voltage: 12V
- Weight (lbs): 2.99
- Wire Harness Included: No
- Part Description: 1997 Chevrolet Monte Carlo Fuel Pump Module Assembly
Vehicle Fitment- 1997 Chevrolet Monte Carlo | All Trims | 6 Cyl 3.1L
$84.41
OEM (Genuine) 1997 Chevrolet Monte Carlo Fuel Pump
PartNumber: 25164266
Product Specifications- Notes: Chevrolet; 3.4l
- Part Description: 1997 Chevrolet Monte Carlo Fuel Pump
Vehicle Fitment- 1997 Chevrolet Monte Carlo | Z34 | 6 Cyl 3.4 L GAS

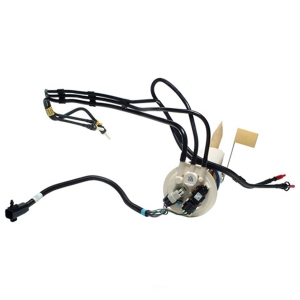

Denso® Fuel Pump Module Assembly for 1997 Chevrolet Monte Carlo
PartNumber: 953-0014Product Specifications- Notes: DENSO Solution Module Assy-Turbine Pump & Design Upgrade Over OE
- Gaskets Included: Yes
- Internet Product Code (IPC): 75716553714
- Item Grade: Premium Replacement
- Item has MSDS (SDS): Y
- MFG Brand Name: DENSO Auto Parts
- MFG Model # (Series): 953-0014
- MFG Name: DENSO
- Package Contents: Fuel Pump Module
- Supplier Company Name: DENSO
- Universal Or Specific Fit: Specific
- UPC: 042511193321
- Part Description: 1997 Chevrolet Monte Carlo Fuel Pump Module Assembly
Vehicle Fitment- 1997 Chevrolet Monte Carlo | All Trims | 6 Cyl 3.1L

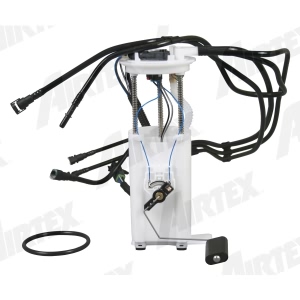

Airtex® In-Tank Fuel Pump Module Assembly for 1997 Chevrolet Monte Carlo
PartNumber: E3941MProduct Specifications- Gasket or Seal Included: Yes
- Inlet Attachment: Inlet-Strainer
- Inlet Type: STRAINER
- Internal or External: Internal
- Internet Product Code (IPC): 76403F8FDE7
- Item Grade: OEM Standard Part
- Item has MSDS (SDS): No
- Maximum Pressure (psi): 100
- MFG Brand Name: Airtex Products
- MFG Model # (Series): E3941M
- Minimum Pressure (psi): 70
- Outlet Attachment: Outlet-QuickConnect
- Outlet Size: Outlet - 3/8
- Outlet Type: QUICK CONNECT, RETURN LINE
- Package Contents: PUMP & KIT
- Package Quantity: 1
- Pump Type: Electrical
- Supplier Company Name: Airtex Products
- UPC: 080044398943
- Voltage [V]: 12V
- Wiring Harness Included: Yes
- Part Description: 1997 Chevrolet Monte Carlo In-Tank Fuel Pump Module Assembly
Vehicle Fitment- 1997 Chevrolet Monte Carlo | All Trims | 6 Cyl 3.1L

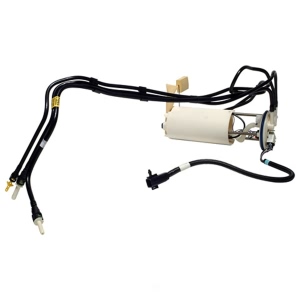

Denso® Fuel Pump Module Assembly for 1997 Chevrolet Monte Carlo
PartNumber: 953-5012Product Specifications- Notes: OE Replacement Module Assy
- Gaskets Included: Yes
- Internet Product Code (IPC): 934726A1D32
- Item Grade: Premium Replacement
- Item has MSDS (SDS): Y
- MFG Brand Name: DENSO Auto Parts
- MFG Model # (Series): 953-5012
- MFG Name: DENSO
- Package Contents: Fuel Pump Module
- Supplier Company Name: DENSO
- Universal Or Specific Fit: Specific
- UPC: 042511163263
- Part Description: 1997 Chevrolet Monte Carlo Fuel Pump Module Assembly
Vehicle Fitment- 1997 Chevrolet Monte Carlo | All Trims | 6 Cyl 3.4L

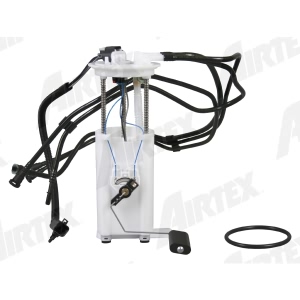

Airtex® Electric Fuel Pump for 1997 Chevrolet Monte Carlo
PartNumber: E3942MProduct Specifications- Notes: Turbine Pump Technology
- Gasket or Seal Included: Yes
- Inlet Attachment: Inlet-Strainer
- Inlet Type: STRAINER
- Internal or External: Internal
- Internet Product Code (IPC): 4060E3C4361
- Item Grade: STANDARD REPLACEMENT
- Item has MSDS (SDS): No
- Maximum Pressure (psi): 100
- MFG Brand Name: Airtex Products
- MFG Model # (Series): E3942M
- Minimum Pressure (psi): 70
- Outlet Attachment: Outlet-QuickConnect
- Outlet Size: 3/8
- Outlet Type: QUICK CONNECT, RETURN LINE
- Package Contents: PUMP & KIT
- Package Quantity: 1
- Pump Type: Electrical
- Supplier Company Name: Airtex Products
- UPC: 080044398998
- Voltage [V]: 12V
- Wiring Harness Included: No
- Part Description: 1997 Chevrolet Monte Carlo Electric Fuel Pump
Vehicle Fitment- 1997 Chevrolet Monte Carlo | All Trims | 6 Cyl 3.4L
Denso® Fuel Pump Module Assembly for 1997 Chevrolet Monte Carlo
PartNumber: 953-5079Product Specifications- Notes: Sell out reorder 953-0014
- Gaskets Included: Yes
- Internet Product Code (IPC): 604C66B11C5
- Item Grade: Premium Replacement
- Item has MSDS (SDS): Y
- MFG Brand Name: DENSO Auto Parts
- MFG Model # (Series): 953-5079
- MFG Name: DENSO
- Package Contents: Fuel Pump Module
- Supplier Company Name: DENSO
- UPC: 042511163935
- Part Description: 1997 Chevrolet Monte Carlo Fuel Pump Module Assembly
Vehicle Fitment- 1997 Chevrolet Monte Carlo | All Trims | 6 Cyl 3.1L
