Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F2953A |

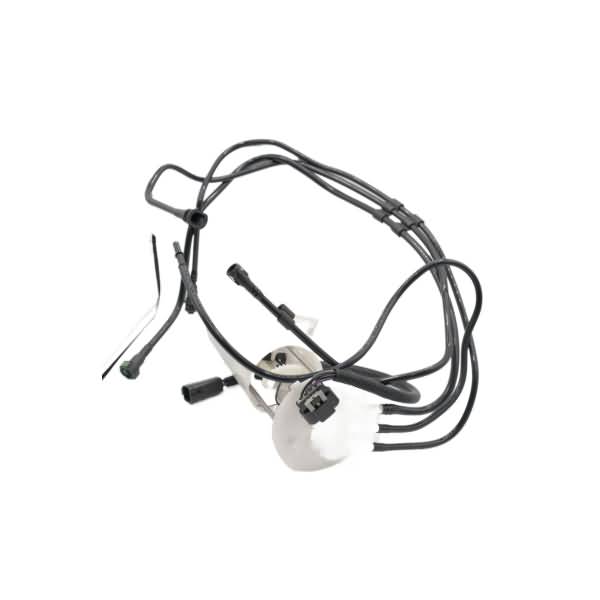

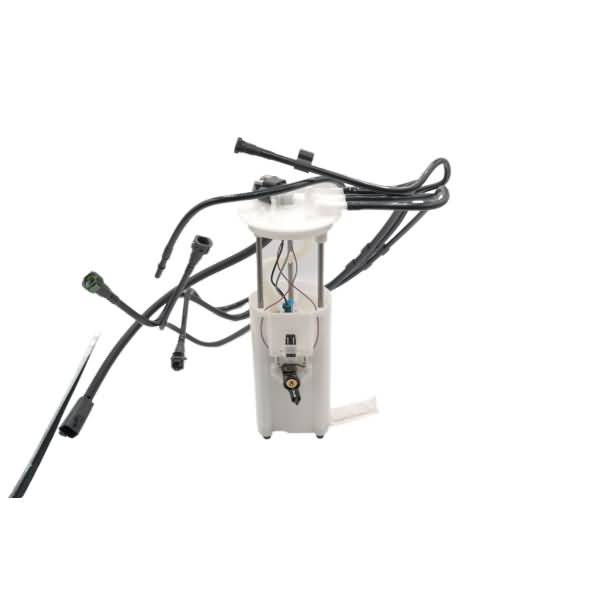

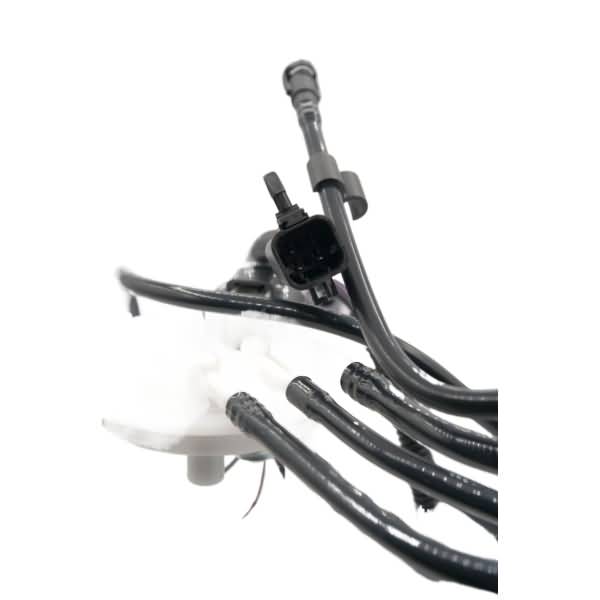

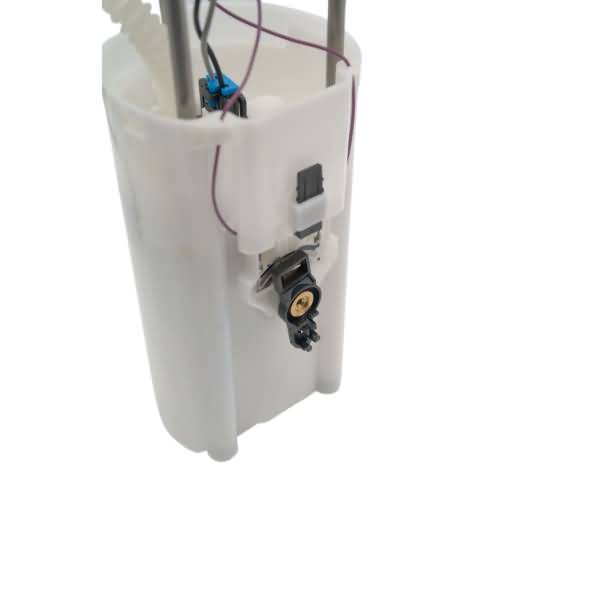

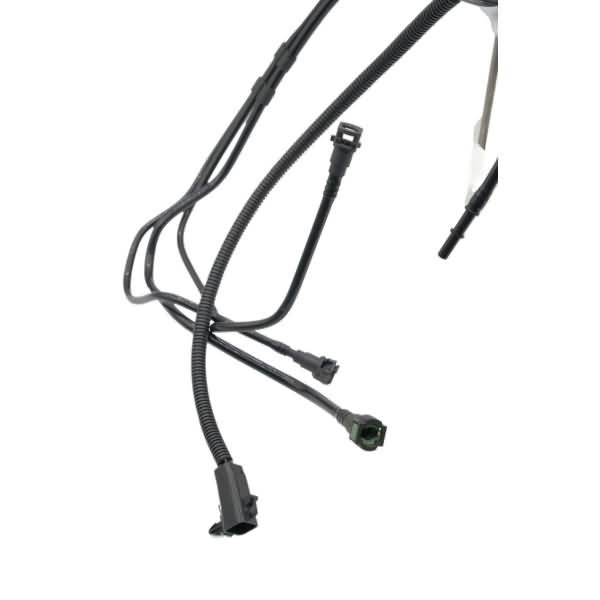

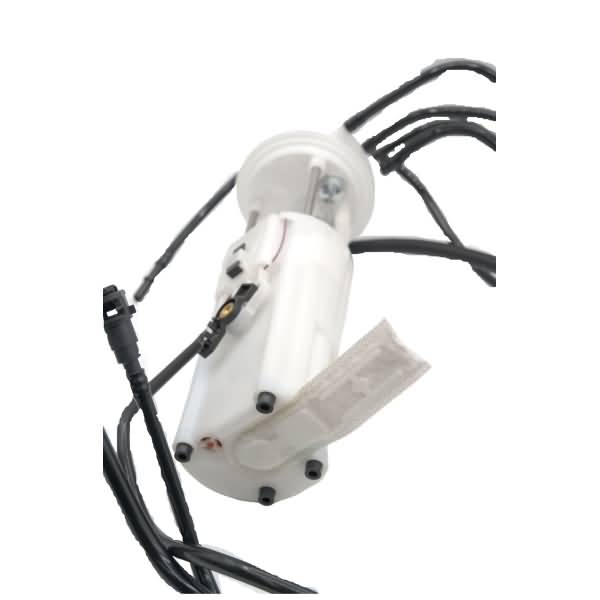

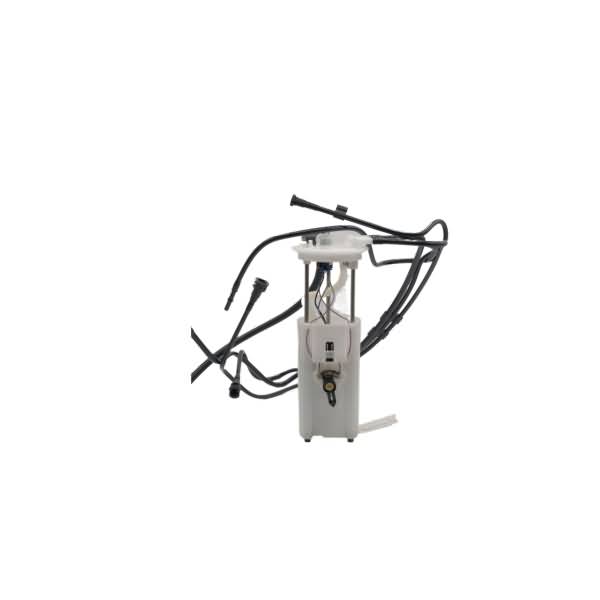

Part Description | Fuel Pump Module Assembly |
Average Current Draw(A) | 6.0 |
Average Flow Rating(GPH) | 120 |
Connector Gender | male |
Connector Shape | Rectangle |
Country of Orign | China |
Fuel Filter Included | Yes |
Fuel Sending Unit Included | Yes |
Fuel Tank Pressure Sensor Included | No |

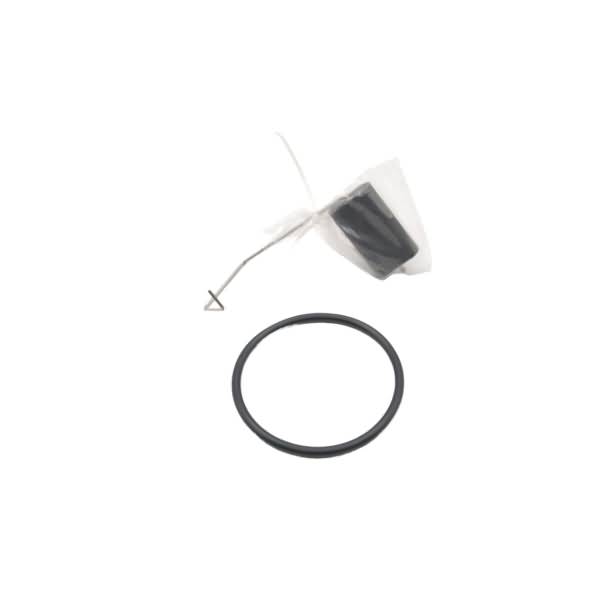

Gasket or Seal Included | Yes |
Gasket Or Seal Material | Nitrile Rubber |
Housing Material | POM |
In Tank or External | In Tank |
Inlet Size | 5/16 |
Inlet Type | Quick Connect |
Internal Or External Strainer | Outside and inside both have strainer |
Lock Ring Included | Yes |
Maximum Pump Pressure (PSI) | 145 |
Minimum Pump Pressure (PSI) | 87 |
Mounting Hardware Included | No |
Negative Ground | No |
Outlet Quantity | 1 |
Outlet Size | 3/8 |
Outlet Type | Quick Connect |
Product Height (in) | 7.5 |
Product Length (in) | 22 |
Product Width (in) | 12 |
Regulator Included | No |
Resistance Ohms Empty | 40±3O |
Resistance Ohms Full | 250±5O |
Strainer Included | Yes |
Terminal Quantity | 4 |
Terminal Type | QUICK CONNECTOR |
UPC | 00072845129536 |
Voltage | 12V |
Weight (lbs) | 2.67 |
Wire Harness Included | No |
Year Make Model | Trim | Engine |
---|---|---|
1997 Chevrolet Lumina | All Trims | 6 Cyl 3.4L |
1997 Chevrolet Monte Carlo | All Trims | 6 Cyl 3.4L |
