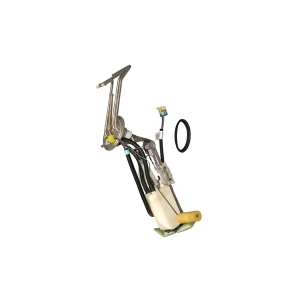

Delphi® Fuel Pump And Sender Assembly for 1996 Chevrolet Camaro
PartNumber: HP10036Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 7
- Flow Rating: 26 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- Inlet Type: Strainer
- Internal or External Strainer: External
- Item Grade: Standard Replacement
- Maximum Pressure: 87.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 4
- Outlet Type: Quick Connect
- Pump Location: In Tank
- Pump Type: Electric
- Resistance Ohms Empty: 1.0
- Resistance Ohms Full: 90.0
- Strainer Included: Yes
- System Pressure: 51 psi
- Terminal Gender: Female
- Terminal Quantity: 3
- Terminal Type: Pin
- UPC: 689604187562
- Voltage: 13.5 VDC
- Part Description: 1996 Chevrolet Camaro Fuel Pump And Sender Assembly
Vehicle Fitment- 1996 Chevrolet Camaro | All Trims | 6 Cyl 3.8L
- 1996 Chevrolet Camaro | All Trims | 8 Cyl 5.7L
$179.47
OEM (Genuine) 1996 Chevrolet Camaro Fuel Tank Meter/Pump Meter (Sender & Pump)
PartNumber: 19179528
Product Specifications- Notes: All Models; 5.7l; 5.7 Liter
- Other Names: Fuel Gauge Sending Unit, Fuel Pump, Sending Unit
- Item Dimensions: 9.3 x 21.0 x 16.5 inches
- Item Weight: 4.20 Pounds
- Fitment Type: Direct Replacement
- Replaces: 25164521
- Part Description: 1996 Chevrolet Camaro Fuel Tank Meter/Pump Meter (Sender & Pump)
Vehicle Fitment- 1996 Chevrolet Camaro | Z28 | 8 Cyl 5.7 L GAS
$171.91 MSRP:$524.80You Save: $352.89 (68%)
Autobest® Electric Fuel Pump for 1996 Chevrolet Camaro
PartNumber: F2740Product Specifications- Notes: Strainer included with pump.Includes Fuel Strainer and Tank Seal
- Average Current Draw(A): 9.5
- Average Flow Rating(GPH): 41
- Connector Gender: Female
- Connector Quantity: 1
- Connector Shape: Rectangle
- Country of Orign: China
- Fuel Filter Included: No
- Fuel Sending Unit Included: No
- Fuel Tank Pressure Sensor Included: No
- Gasket or Seal Included: Yes
- Gasket Or Seal Material: FKM
- Grade Type: Regular
- In Tank or External: In Tank
- Inlet Size: 0.748
- Inlet Type: Strainer
- Installation Warnings: No
- Internal Or External Strainer: Internal
- Lock Ring Included: No
- Maximum Pump Pressure (PSI): 90
- Minimum Pump Pressure (PSI): 80
- Mounting Hardware Included: No
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Size: 5/16
- Outlet Type: Quick Connect
- Product Height (in): 2.36
- Product Length (in): 10.63
- Product Width (in): 3.23
- Pump Type: Turbine
- Regulator Included: No
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 2
- Terminal Type: PIN
- UPC: 00072845167408
- Voltage: 12V
- Weight (lbs): 1.49
- Wire Harness Included: No
- Part Description: 1996 Chevrolet Camaro Electric Fuel Pump
Vehicle Fitment- 1996 Chevrolet Camaro | All Trims | 6 Cyl 3.8L
- 1996 Chevrolet Camaro | All Trims | 8 Cyl 5.7L
$62.57
Autobest® High Performance Fuel Pump And Strainer Set for 1996 Chevrolet Camaro
PartNumber: HP2740Product Specifications- Notes: Strainer included with pump.Includes Fuel Strainer and Tank Seal
- Average Current Draw(A): 9.5
- Average Flow Rating(GPH): 41
- Connector Gender: Female
- Connector Quantity: 1
- Connector Shape: Rectangle
- Country of Orign: China
- Fuel Filter Included: No
- Fuel Sending Unit Included: No
- Fuel Tank Pressure Sensor Included: No
- Gasket or Seal Included: Yes
- Gasket Or Seal Material: FKM
- Grade Type: Regular
- In Tank or External: In Tank
- Inlet Size: 0.748
- Inlet Type: Strainer
- Installation Warnings: No
- Internal Or External Strainer: Internal
- Lock Ring Included: No
- Maximum Pump Pressure (PSI): 108.8
- Minimum Pump Pressure (PSI): 79.8
- Mounting Hardware Included: No
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Type: Quick Connect
- Product Height (in): 3
- Product Length (in): 8
- Product Width (in): 3
- Pump Type: Turbine
- Regulator Included: No
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 2
- Terminal Type: PIN
- UPC: 00072845177407
- Voltage: 12V
- Weight (lbs): 2
- Wire Harness Included: No
- Part Description: 1996 Chevrolet Camaro High Performance Fuel Pump And Strainer Set
Vehicle Fitment- 1996 Chevrolet Camaro | All Trims | 6 Cyl 3.8L
- 1996 Chevrolet Camaro | All Trims | 8 Cyl 5.7L
$72.93
Airtex® In-Tank Fuel Pump and Strainer Set for 1996 Chevrolet Camaro
PartNumber: E3739Product Specifications- Gasket Included: Y
- Hazardous Material: No
- Inlet Count: 1
- Inlet Type: Strainer
- Item Grade: Standard Replacement
- Maximum Free Flow Rate (gph): 60
- Maximum Pressure Rate (psi): 90
- Minimum Free Flow Rate (gph): 50
- Minimum Pressure Rate (psi): 80
- Outlet Count: 1
- Outlet Size: 3/8
- Outlet Type: Quick Connect
- Package Contents: Pump & Kit
- Package Quantity: 1
- Warranty: Lifetime Limited Warranty
- Part Description: 1996 Chevrolet Camaro In-Tank Fuel Pump and Strainer Set
Vehicle Fitment- 1996 Chevrolet Camaro | All Trims | 6 Cyl 3.8L
- 1996 Chevrolet Camaro | All Trims | 8 Cyl 5.7L
OEM (Genuine) 1996 Chevrolet Camaro Fuel Tank Meter/Pump Meter (Sender & Pump)
PartNumber: 19179527
Product Specifications- Notes: All Models; 3.8l; 3.8 Liter
- Other Names: Fuel Gauge Sending Unit, Fuel Pump, Sending Unit
- Item Dimensions: 21.1 x 16.9 x 9.5 inches
- Item Weight: 4.30 Pounds
- Fitment Type: Direct Replacement
- Replaces: 25164520
- Part Description: 1996 Chevrolet Camaro Fuel Tank Meter/Pump Meter (Sender & Pump)
Vehicle Fitment- 1996 Chevrolet Camaro | Base, RS | 6 Cyl 3.8 L GAS
Airtex® Fuel Pump Module Assembly for 1996 Chevrolet Camaro
PartNumber: E3924MProduct Specifications- Connector Color: White
- Connector Gender: Male
- Connector Shape: Rectangle
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: No
- Gasket or Seal Included: Yes
- Grade Type: Regular
- Housing Material: Plastic
- Inlet Type: Port
- Internal or External: In Tank
- Internal or External Strainer: External
- Lock Ring Included: No
- Minimum Flow Rating: 30
- Minimum Pressure (psi): 47.0
- Mounting Hardware Included: No
- Negative Ground: Yes
- Outlet Fitting Thread Size: 1/2
- Outlet Quantity: 1
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: No
- Strainer Included: Yes
- Terminal Gender: Female
- Terminal Quantity: 4
- Terminal Type: Spade
- Universal Or Specific Fit: Specific
- UPC: 889464031627
- Voltage [V]: 12V
- Wire Harness Included: Yes
- Wire Quantity: 4
- Wiring Harness Included: Yes
- Wiring Harness Length: 300.0
- Part Description: 1996 Chevrolet Camaro Fuel Pump Module Assembly
Vehicle Fitment- 1996 Chevrolet Camaro | All Trims | 6 Cyl 3.8L
- 1996 Chevrolet Camaro | All Trims | 8 Cyl 5.7L
