Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 10
Flow Rating: 31 gph
Fuel Type: Gas
Gasket or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: External
Item Grade: Standard Replacement
Maximum Pressure: 95.0 PSI
Outlet Outside Diameter: 0.375''
Outlet Type: Push''
Pump Type: Electric
Strainer Included: Yes
System Pressure: 35 psi
Terminal Quantity: 2
Terminal Type: Lead Wire
UPC: 689604061664
Voltage: 12.0 VDC
Wiring Harness Included: No

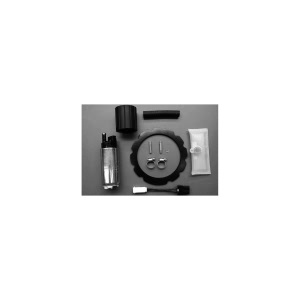

Part Description: 1995 Ford Explorer Fuel Pump And Strainer Set
Notes: Canadian Built;USA Built;For Single Tank Applications Only, Cannot Be Used On Any Dual Tank Applications;Includes Fuel Pump, Fuel Reservoir, Fuel Strainer and Tank Seal
Gasket or Seal Included: Yes
Inlet Size: 0.7"
Inlet Type: Strainer
Internal or External: Internal
Maximum Free Flow: 45 gph
Maximum Pump Pressure: 101.5 psi
Minimum Free Flow: 37 gph
Minimum Pump Pressure: 79.75 psi
Outlet Type: Quick Connect
Pump Type: Turbine
Regulator Included: No
UPC: 072845110602

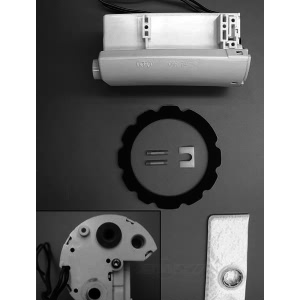

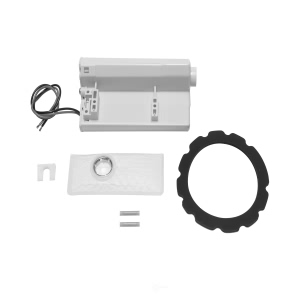

Part Description: 1995 Ford Explorer Fuel Pump and Strainer Set
Notes: Mexico Built;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 10
Flow Rating: 18 gph
Fuel Type: Gas
Gasket or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Item Grade: Standard Replacement
Maximum Pressure: 80.0 PSI
Outlet Outside Diameter: 0.313''
Outlet Type: Hose
Pump Type: Electric
Strainer Included: No
System Pressure: 45 psi
Terminal Gender: Male
Terminal Quantity: 2
Terminal Type: Blade
UPC: 689604120491
Voltage: 12 VDC
Wiring Harness Included: Yes
Part Description: 1995 Ford Explorer In Tank Electric Fuel Pump
Notes: Mexico Built;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 10
Flow Rating: 34 gph
Fuel Level Sender Assembly Included: Yes
Fuel Type: Gas
Gasket or Seal Included: Yes
Inlet Type: Strainer
Internal or External Strainer: External
Item Grade: Standard Replacement
Maximum Pressure: 109.0 PSI
Outlet Outside Diameter: 0.375''
Outlet Quantity: 2
Outlet Type: Quick Connect
Pump Location: In Tank
Pump Type: Electric
Resistance Ohms Empty: 15.0
Resistance Ohms Full: 160.0
Strainer Included: Yes
System Pressure: 36 psi
Terminal Gender: Male
Terminal Quantity: 4
Terminal Type: Pin
UPC: 689604239568
Voltage: 12.0 VDC

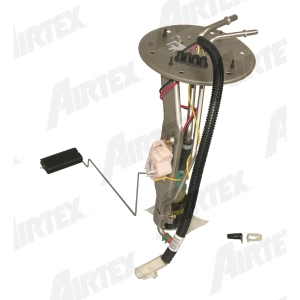

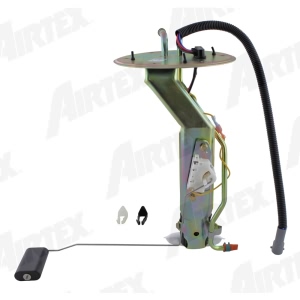

Part Description: 1995 Ford Explorer Fuel Pump And Sender Assembly
