Notes: Hose Fuel Feed & Return Lines;with Harness Code # SEM;with 13 Gallon Tank;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.;Hose Fuel Feed & Return Lines; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 4
Flow Rating: 26 gph
Fuel Level Sender Assembly Included: Yes
Fuel Type: Gas
Gasket or Seal Included: Yes
Inlet Type: Strainer
Internal or External Strainer: External
Item Grade: Standard Replacement
Maximum Pressure: 29.0 PSI
Outlet Outside Diameter: 0.375''
Outlet Quantity: 4
Outlet Type: Quick Connect
Pump Location: In Tank
Pump Type: Electric
Resistance Ohms Empty: 1.0
Resistance Ohms Full: 90.0
Strainer Included: Yes
System Pressure: 12 psi
Terminal Gender: Female
Terminal Quantity: 2
Terminal Type: Pin
UPC: 689604187739
Voltage: 13.5 VDC

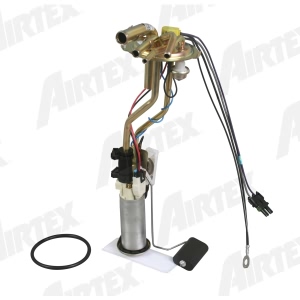

Part Description: 1990 Chevrolet S10 Fuel Pump And Sender Assembly
Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 6
Flow Rating: 18 gph
Fuel Type: Gas
Gasket or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Item Grade: Standard Replacement
Maximum Pressure: 29.0 PSI
Outlet Outside Diameter: 0.313''
Outlet Type: Hose Bead
Pump Type: Electric
Strainer Included: No
System Pressure: 12 psi
Terminal Gender: Male
Terminal Quantity: 2
Terminal Type: Blade
UPC: 689604219232
Voltage: 14 VDC
Wiring Harness Included: Yes
Part Description: 1990 Chevrolet S10 In Tank Electric Fuel Pump
Notes: with 13 or 20 Gallon Tank;Includes Offset Plastic Outlet Tube One Tank Seal, Hose, Wiring, Terminals & Clamp;Offset Plastic Outlet Tube; Includes One Tank Seal, Hose, Wiring, Terminals, & Clamp
Connector Shape: Rectangle
Fuel Pump Inlet Type: Strainer
Fuel Sending Unit Included: No
Gasket or Seal Included: Yes
Inlet Attachment: Inlet-Strainer
Inlet Count: 1
Inlet Outside Diameter: 19.0
Inlet Type: Strainer
Internal or External: In Tank
Internet Product Code (IPC): C11F8B0B5B2
Item Grade: OEM Standard Part
Item has MSDS (SDS): No
Length (Inch): 132.0
Maximum Free Flow Rate (gph): 35
Maximum Pressure (psi): 17
MFG Brand Name: Airtex Products
MFG Model # (Series): E3902
Minimum Free Flow Rate: 21.0
Minimum Free Flow Rate (gph): 35
Minimum Pressure (psi): 13.0
Mounting Hardware Included: No
Muffler Outlet Diameter (in): 9.7
Negative Ground: Yes
Outlet Attachment: Outlet-HoseConnection
Outlet Count: 1
Outlet Quantity: 1
Outlet Size: Outlet - 3/8
Outlet Type: Hose Barb
Package Contents: Pump and Kit
Pump Type: Electric
Regulator Included: No
Seal And Lock Ring Included: No
Strainer Included: No
Supplier Company Name: Airtex Products
Terminal Gender: Male
Terminal Quantity: 2
Terminal Type: Pin
Universal Or Specific Fit: Specific
UPC: 080044089711
Voltage [V]: 12V
Wiring Harness Included: Yes
Part Description: 1990 Chevrolet S10 Electric Fuel Pump
