Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | HP10041 |

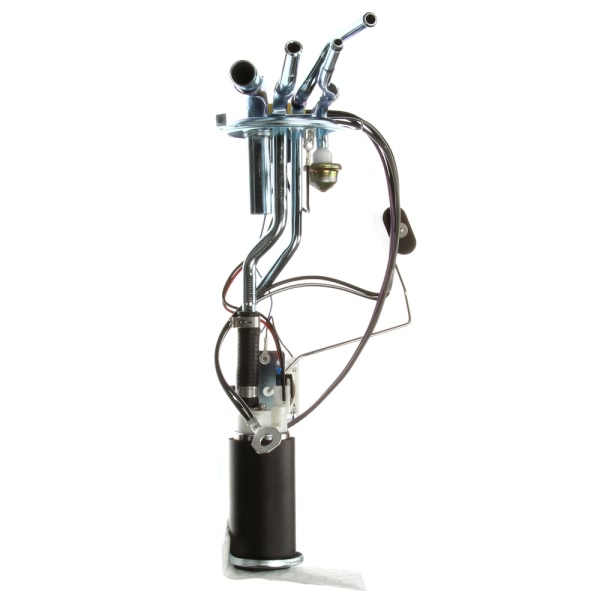

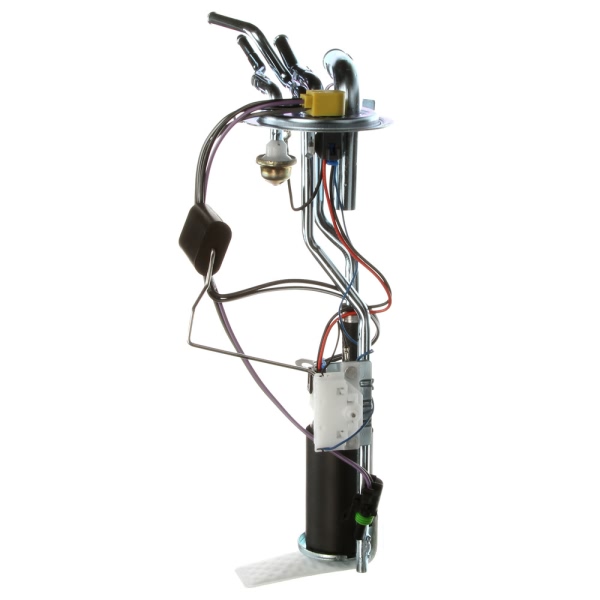

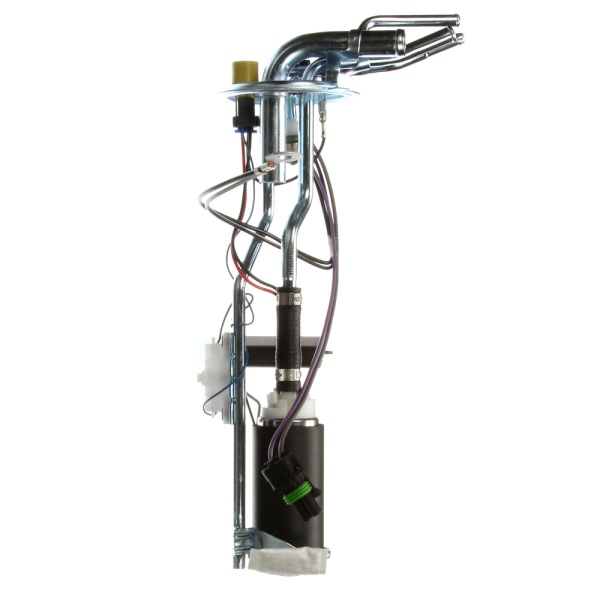

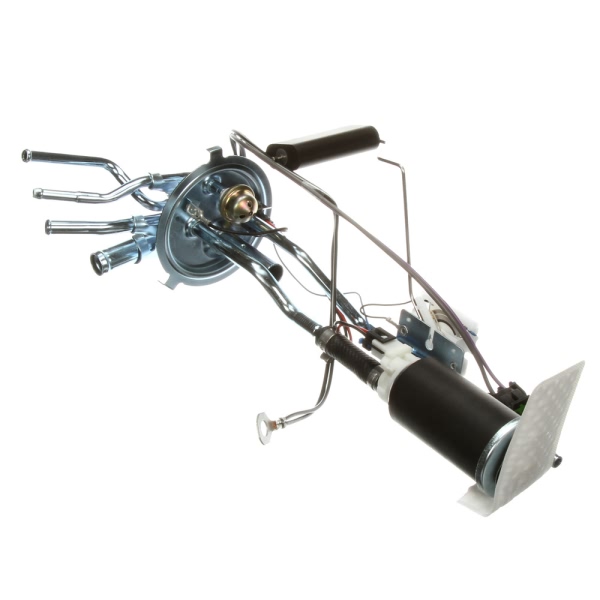

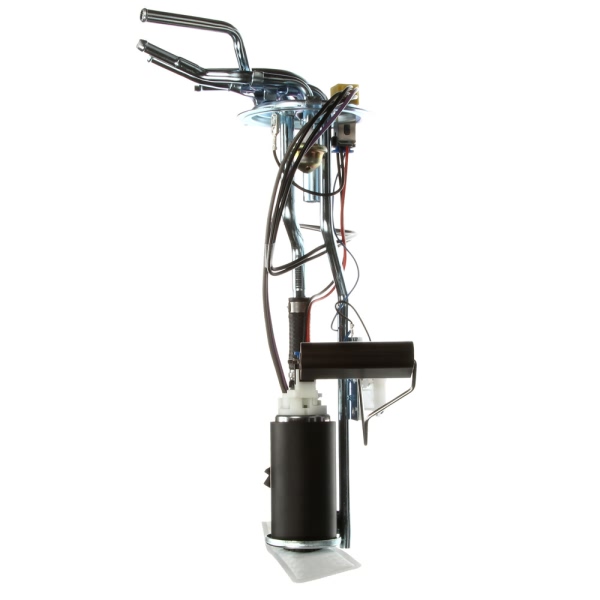

Part Description | Fuel Pump And Sender Assembly |
Current Draw | 4 |
Flow Rating | 26 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |

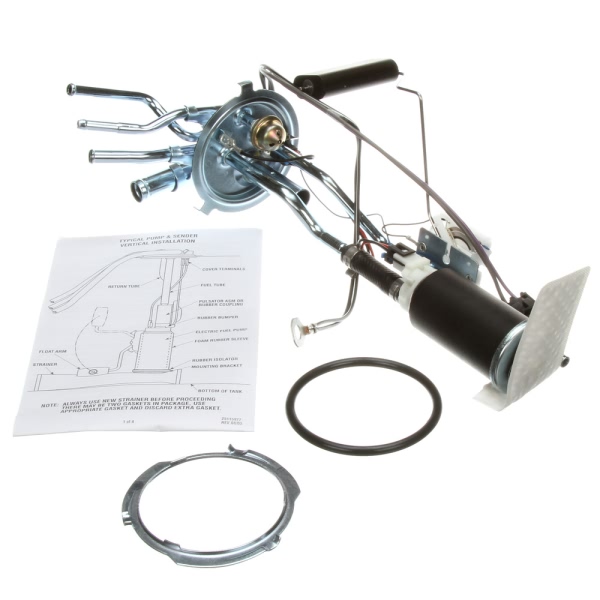

Gasket or Seal Included | Yes |

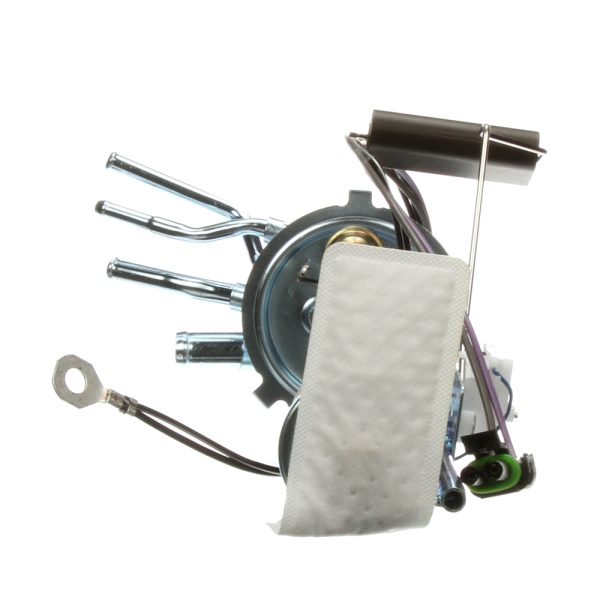

Inlet Type | Strainer |
Internal or External Strainer | External |
Item Grade | Standard Replacement |
Maximum Pressure | 29.0 PSI |
Outlet Outside Diameter | 0.375'' |

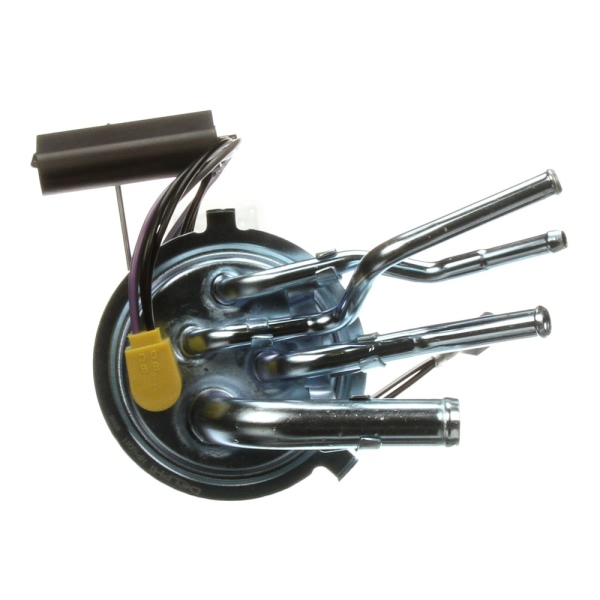

Outlet Quantity | 4 |
Outlet Type | Quick Connect |
Pump Location | In Tank |
Pump Type | Electric |
Resistance Ohms Empty | 1.0 |
Resistance Ohms Full | 90.0 |
Strainer Included | Yes |
System Pressure | 12 psi |

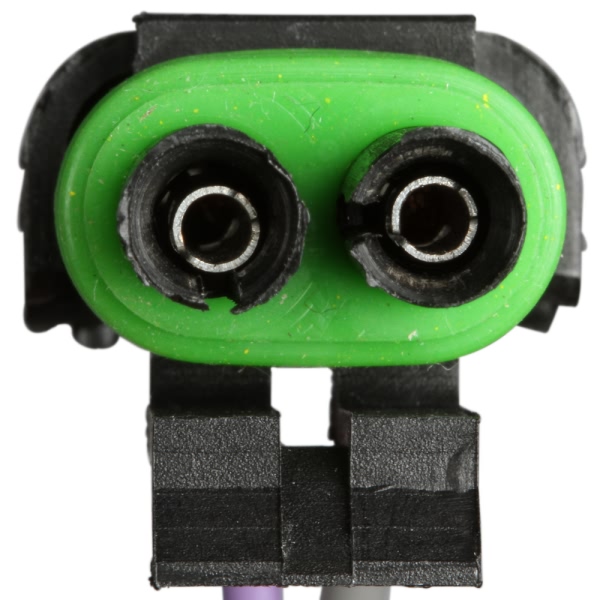

Terminal Gender | Female |
Terminal Quantity | 2 |
Terminal Type | Pin |
UPC | 689604187739 |
Voltage | 13.5 VDC |
Year Make Model | Trim | Engine |
---|---|---|
1985 Chevrolet S10 | All Trims | 4 Cyl 1.9L |
1985 Chevrolet S10 | All Trims | 4 Cyl 2.2L |
1985-1991 Chevrolet S10 | All Trims | 4 Cyl 2.5L |
1985-1991 Chevrolet S10 | All Trims | 6 Cyl 2.8L |
1988-1991 Chevrolet S10 | All Trims | 6 Cyl 4.3L |
1991 Chevrolet S10 | All Trims | 6 Cyl 3.1L |
1985 GMC S15 | All Trims | 4 Cyl 1.9L |
1985 GMC S15 | All Trims | 4 Cyl 2.2L |
1985-1990 GMC S15 | All Trims | 4 Cyl 2.5L |
1985-1990 GMC S15 | All Trims | 6 Cyl 2.8L |
