Notes: 2 Fuel Pumps may be Required - 1 Externally Mounted & 1 Mounted In Tank;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 5
Flow Rating: 28 gph
Fuel Type: Gas
Gasket or Seal Included: No
In Tank or External: External
Inlet Outside Diameter: 0.313''
Inlet Type: Quick Connect
Item Grade: Standard Replacement
Maximum Pressure: 99.0 PSI
Outlet Outside Diameter: 0.313''
Outlet Type: Quick Connect
Pump Type: Electric
Strainer Included: No
System Pressure: 44 psi
Terminal Gender: Male
Terminal Quantity: 2
Terminal Type: Threaded
UPC: 689604032619
Voltage: 12 VDC
Wiring Harness Included: No

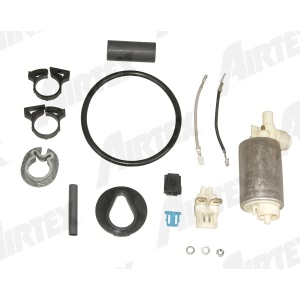

Part Description: 1987 Ford E-250 Econoline In Line Electric Fuel Pump
More Info
Vehicle Fitment
1987 Ford E-250 Econoline | All Trims | 8 Cyl 5.0L
1987 Ford E-250 Econoline | All Trims | 6 Cyl 4.9L
Notes: with Aft Axle Tank;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 6
Flow Rating: 29 gph
Fuel Level Sender Assembly Included: Yes
Fuel Type: Gas
Gasket or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: External
Item Grade: Standard Replacement
Maximum Pressure: 6.5 PSI
Outlet Outside Diameter: 0.375''
Outlet Quantity: 2
Outlet Type: Quick Connect
Pump Type: Electric
Resistance Ohms Empty: 70.0
Resistance Ohms Full: 10.0
Strainer Included: Yes
System Pressure: 5 psi
Terminal Gender: Male
Terminal Quantity: 4
Terminal Type: Pin
UPC: 689604226551
Voltage: 12.0 VDC

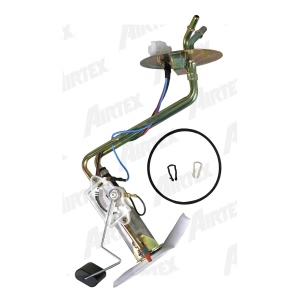

Part Description: 1987 Ford E-250 Econoline Fuel Pump Hanger Assembly
More Info
Vehicle Fitment
1987 Ford E-250 Econoline | All Trims | 8 Cyl 5.0L
1987 Ford E-250 Econoline | All Trims | 6 Cyl 4.9L
Notes: Two Fuel Pumps May Be Required, One Mounted In-Tank Pump and One Mounted Externally;In-Tank Pump;Includes Tank Seal;Low Pressure Pump;Strainer required to validate the warranty: F123S
Average Current Draw(A): 2
Average Flow Rating(GPH): 155
Connector Quantity: 2
Connector Shape: Screw
Country of Orign: China
Gasket or Seal Included: No
Grade Type: Performance
In Tank or External: In Tank
Inlet Size: 0.748
Inlet Type: Filter
Installation Warnings: No
Internal Or External Strainer: External
Maximum Pump Pressure (PSI): 8.7
Minimum Pump Pressure (PSI): 2.9
Outlet Quantity: 1
Outlet Size: 0.36
Outlet Type: Male tube / 0 barb
Product Height (in): 1.45
Product Length (in): 4.17
Product Width (in): 1.45
Pump Type: Turbine
Regulator Included: No
Terminal Quantity: 2
Terminal Type: Thread
UPC: 00072845114983
Voltage: 12V
Weight (lbs): 0.44
Part Description: 1987 Ford E-250 Econoline In Tank Electric Fuel Pump
More Info
Vehicle Fitment
1987 Ford E-250 Econoline | All Trims | 8 Cyl 5.0L
1987 Ford E-250 Econoline | All Trims | 6 Cyl 4.9L
Notes: with Midship Tank;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 6
Flow Rating: 29 gph
Fuel Level Sender Assembly Included: Yes
Fuel Type: Gas
Gasket or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: External
Item Grade: Standard Replacement
Maximum Pressure: 6.5 PSI
Outlet Outside Diameter: 0.375''
Outlet Quantity: 2
Outlet Type: Quick Connect
Pump Type: Electric
Resistance Ohms Empty: 70.0
Resistance Ohms Full: 10.0
Strainer Included: Yes
System Pressure: 5 psi
Terminal Gender: Male
Terminal Quantity: 4
Terminal Type: Pin
UPC: 689604226544
Voltage: 12.0 VDC
Part Description: 1987 Ford E-250 Econoline Fuel Pump Hanger Assembly
More Info
Vehicle Fitment
1987 Ford E-250 Econoline | All Trims | 8 Cyl 5.0L
1987 Ford E-250 Econoline | All Trims | 6 Cyl 4.9L
Notes: 2 Fuel Pumps may be Required - 1 Externally Mounted & 1 Mounted In Tank;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 2
Flow Rating: 39 gph
Fuel Type: Gas
Gasket or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Item Grade: Standard Replacement
Maximum Pressure: 9.0 PSI
Outlet Outside Diameter: 0.375''
Outlet Type: Hose
Pump Type: Electric
Strainer Included: No
System Pressure: 5 psi
Terminal Gender: Male
Terminal Quantity: 2
Terminal Type: Threaded
UPC: 689604033388
Voltage: 12 VDC
Wiring Harness Included: No
Part Description: 1987 Ford E-250 Econoline In Tank Electric Fuel Pump
More Info
Vehicle Fitment
1987 Ford E-250 Econoline | All Trims | 8 Cyl 5.0L
1987 Ford E-250 Econoline | All Trims | 6 Cyl 4.9L
Notes: Fuel Pump Not Incld; Incls Sending Unit, Float, Fuel Strainer & Tank Seal. Does not Incl Fuel Pump.;Rear Tank, Fuel Pump Not Incld; Incls Sending Unit, Float, Fuel Strainer & Tank Seal. Does not Incl Fuel Pump.
Gasket Included: Y
Item Grade: STANDARD REPLACEMENT
Outlet Count: 1
Outlet Size: 3/8"
Outlet Type: QUICK CONNECT
Package Contents: PUMP & KIT
Package Quantity: 1
UPC: 080044047544
Part Description: 1987 Ford E-250 Econoline Fuel Sender And Hanger Assembly
More Info
Vehicle Fitment
1987 Ford E-250 Econoline | All Trims | 8 Cyl 5.0L
1987 Ford E-250 Econoline | All Trims | 6 Cyl 4.9L
Notes: w/Center Tank, Fuel Pump Not Incld; Incls Sending Unit, Float, Fuel Strainer & Tank Seal. Does not Incl Fuel Pump.;Center Tank, Fuel Pump Not Incld; Incls Sending Unit, Float, Fuel Strainer & Tank Seal. Does not Incl Fuel Pump.
Gasket Included: Y
Item Grade: STANDARD REPLACEMENT
Outlet Count: 1
Outlet Size: 3/8"
Outlet Type: QUICK CONNECT
Package Contents: PUMP & KIT
Package Quantity: 1
UPC: 080044047667
Part Description: 1987 Ford E-250 Econoline Fuel Sender And Hanger Assembly
More Info
Vehicle Fitment
1987 Ford E-250 Econoline | All Trims | 8 Cyl 5.0L
1987 Ford E-250 Econoline | All Trims | 6 Cyl 4.9L
