Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | HP10156 |

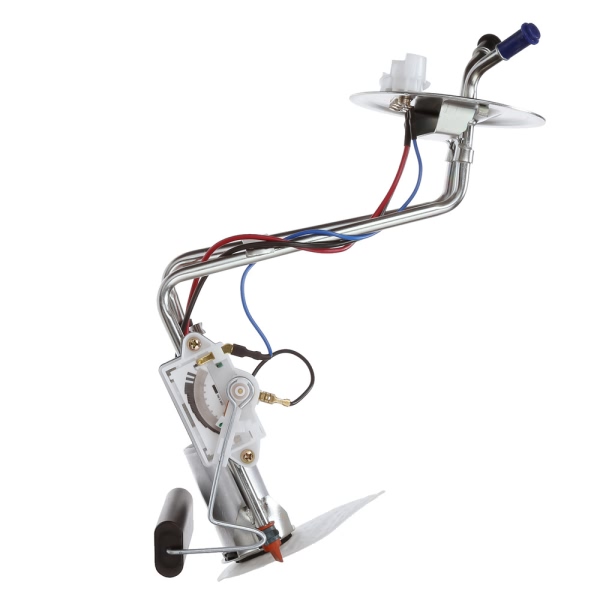

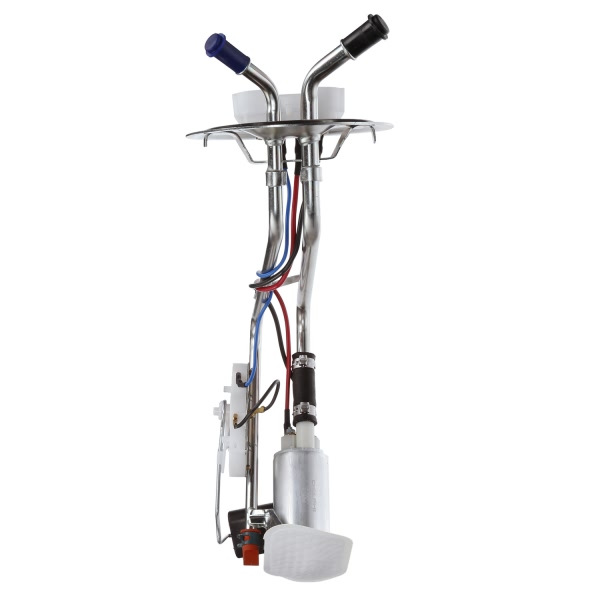

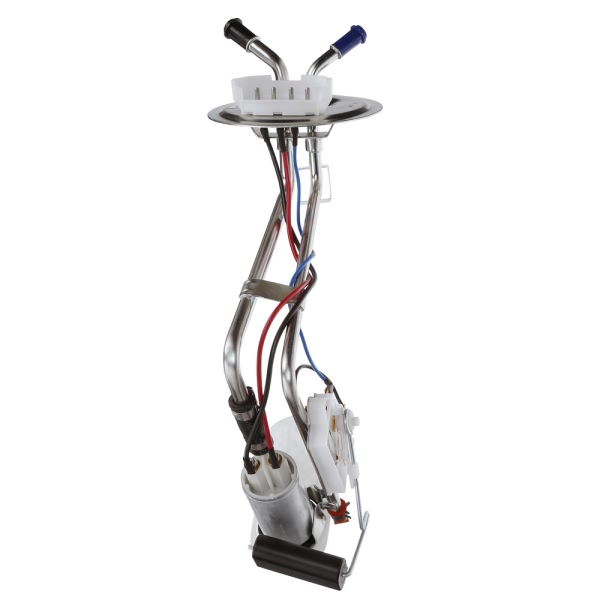

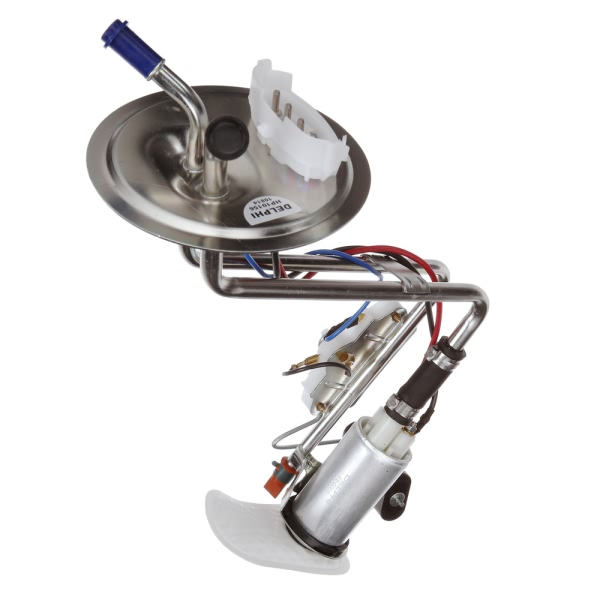

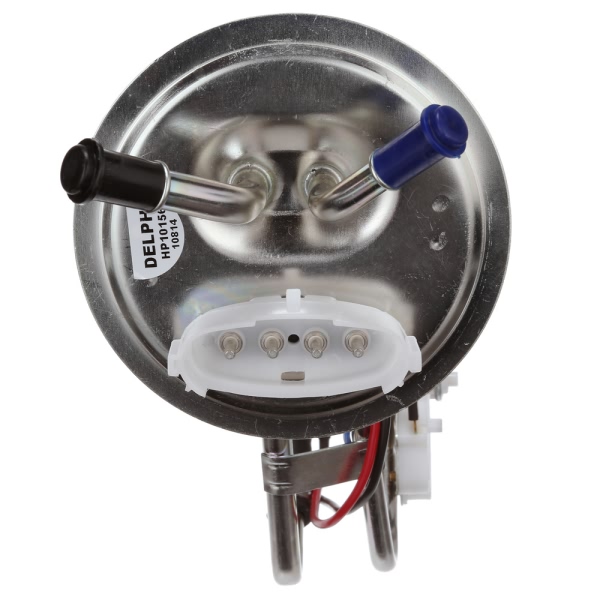

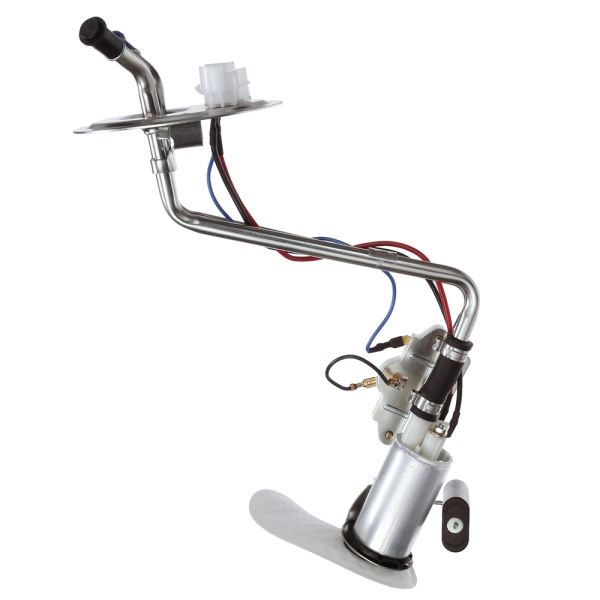

Part Description | Fuel Pump Hanger Assembly |
Current Draw | 6 |
Flow Rating | 29 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |

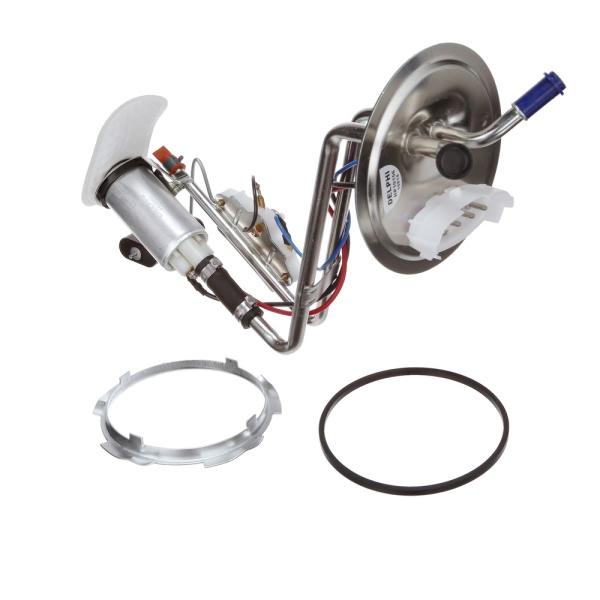

Gasket or Seal Included | Yes |
In Tank or External | In Tank |

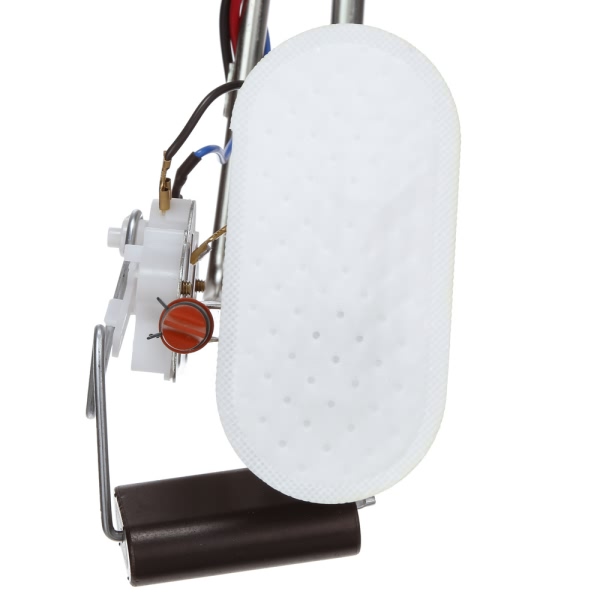

Inlet Type | Strainer |
Internal or External Strainer | External |
Item Grade | Standard Replacement |
Maximum Pressure | 6.5 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 2 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Resistance Ohms Empty | 70.0 |
Resistance Ohms Full | 10.0 |
Strainer Included | Yes |
System Pressure | 5 psi |

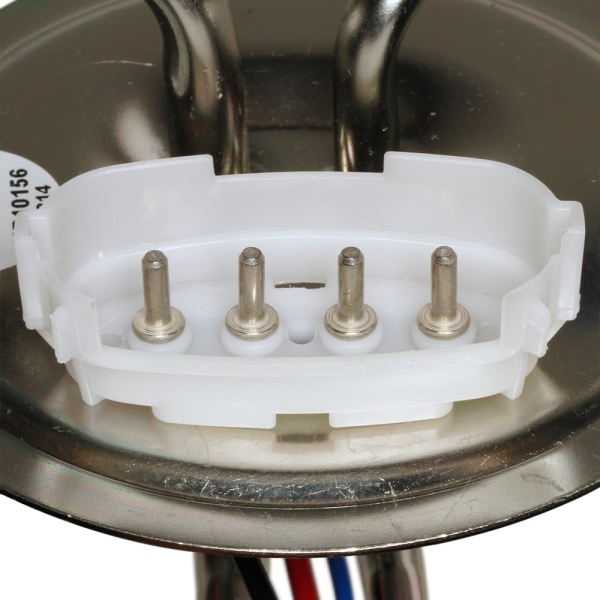

Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | Pin |
UPC | 689604226551 |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
1986-1990 Ford E-150 Econoline | All Trims | 8 Cyl 5.0L |
1987-1990 Ford E-150 Econoline | All Trims | 6 Cyl 4.9L |
1988-1990 Ford E-150 Econoline | All Trims | 8 Cyl 5.8L |
1986-1990 Ford E-150 Econoline Club Wagon | All Trims | 8 Cyl 5.0L |
1987-1990 Ford E-150 Econoline Club Wagon | All Trims | 6 Cyl 4.9L |
1988-1990 Ford E-150 Econoline Club Wagon | All Trims | 8 Cyl 5.8L |
1986-1990 Ford E-250 Econoline | All Trims | 8 Cyl 5.0L |
1987-1990 Ford E-250 Econoline | All Trims | 6 Cyl 4.9L |
1988-1990 Ford E-250 Econoline | All Trims | 8 Cyl 5.8L |
1986-1990 Ford E-250 Econoline Club Wagon | All Trims | 8 Cyl 7.5L |
