Notes: w/R4 Compressor; Reman w/Clutch; Compressor may differ in appearance from OE. Please refer to installation kit provided.;w/R4 Compressor; Reman w/Clutch; Exc l. Canada Emissions; 12 O'Clk Coil; Compressor may differ in appearance from OE. Please refer to installation kit provided.
Notes: w/R4 Compressor; New w/Clutch; Canada Emissions; 9 O'Clk Coil; Compressor may differ in appearance from OE. Please refer to installation kit provided.
Clutch Included: Yes
Clutch Maximum Diameter: 5.000
Coil Clock Position: 9
Coil Voltage: 12
Compatible Refrigerant Oil Type: PAG 150
Compressor Type: R4 Heavy
Distance From Clutch To Mounting Flange: 1.203125
Mounting Hardware: Not Included
Mounting Type: Case Mount
New or Reman: New
O-Ring A Number/Desc: [24359] / Short Sealing Washer Pilot
O-Ring A Quantity: 1
O-Ring B Number/Desc: [24360] / Long Sealing Washer Pilot
O-Ring B Quantity: 1
O-Ring C Number/Desc: [24356] / Red Sealing Washer
O-Ring C Quantity: 2
O-Ring D Number/Desc: [24357] / Green Sealing Washer
O-Ring D Quantity: 1
Printed Foot Note: Due to new enhancements, compressor may differ in appearance from OE Please refer to installation kit provided w/ each compressor.
Pulley Belt Type: V-Belt
Pulley Diameter MM: 127.000
Pulley Groove Quantity: 1
Pulley Lip Diameter: 5.000
Pulley Outside Diameter: 5.000
Pulley Ridge Diameter: 5.000
Refrigerant Type: R134a
Reman w/o Clutch: [57019]
Suc Prt Typ Note: Block
Suction Port Type: O-Ring / Sealing Washer
Switch Included: High Pressure
Terminal Type: Spade
UPC: 096361582286

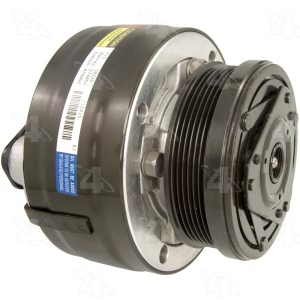

Part Description: 1987 Buick Regal A C Compressor With Clutch
Notes: w/R4 Compressor; New w/Clutch; Exc l. Canada Emissions; 12 O'Clk Coil; Compressor may differ in appearance from OE. Please refer to installation kit provided.;w/ R4 Compressor; New w/ Clutch; Compressor may differ in appearance from OE. Please refer to installation kit provided.
Clutch Included: Yes
Clutch Maximum Diameter: 5.000
Coil Clock Position: 12
Coil Voltage: 12
Compatible Refrigerant Oil Type: PAG 150
Compressor Type: R4 Heavy
Distance From Clutch To Mounting Flange: 1.203125
Mounting Hardware: Not Included
Mounting Type: Case Mount
New or Reman: New
O-Ring A Number/Desc: [24359] / Short Sealing Washer Pilot
O-Ring A Quantity: 1
O-Ring B Number/Desc: [24360] / Long Sealing Washer Pilot
O-Ring B Quantity: 1
O-Ring C Number/Desc: [24356] / Red Sealing Washer
O-Ring C Quantity: 2
O-Ring D Number/Desc: [24357] / Green Sealing Washer
O-Ring D Quantity: 1
Pulley Belt Type: V-Belt
Pulley Groove Quantity: 1
Pulley Lip Diameter: 5.000
Pulley Outside Diameter: 5.000
Pulley Ridge Diameter: 5.000
Refrigerant Type: R134a
Reman w/o Clutch: [57054] / [57019]
Suction Port Type: O-Ring / Sealing Washer
Switch Included: High Pressure
Terminal Type: Spade
UPC: 096361582316
Part Description: 1987 Buick Regal A C Compressor With Clutch
Notes: New-w/Clutch; w/R4 Compressor; 9 O'Clock Coil; Due To New Enhancements Compressor May Appear Different From The OE Unit; Please Refer To The Installation Kit Provided w/Each Compressor; Replacement Of Stretch Fit Belt Is Recommended
