Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 53003 |

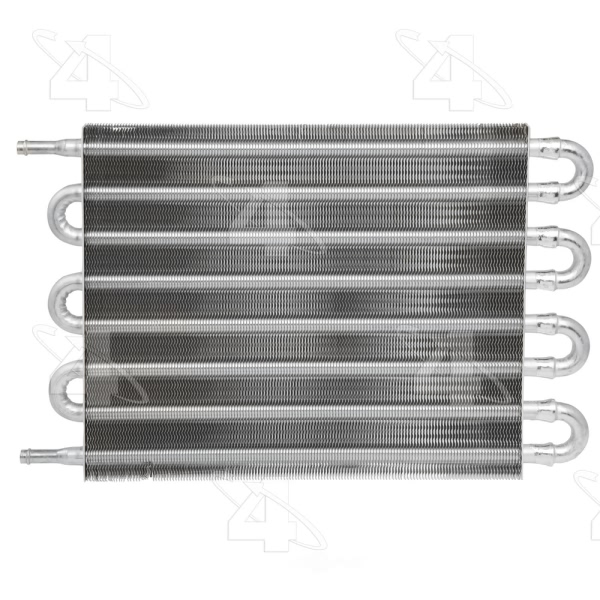

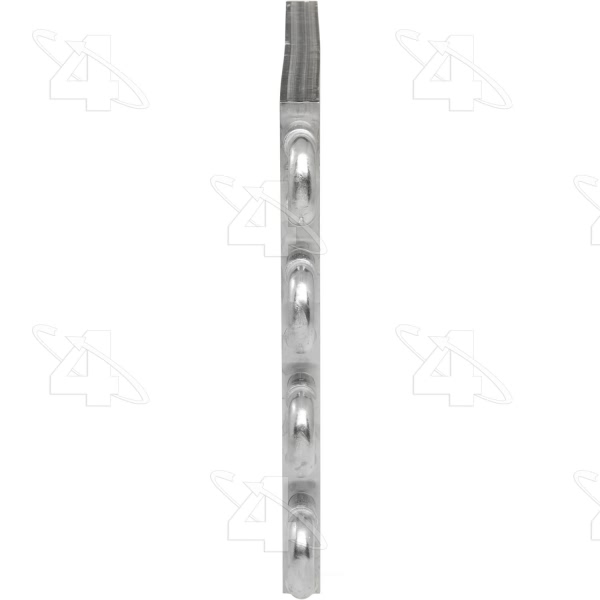

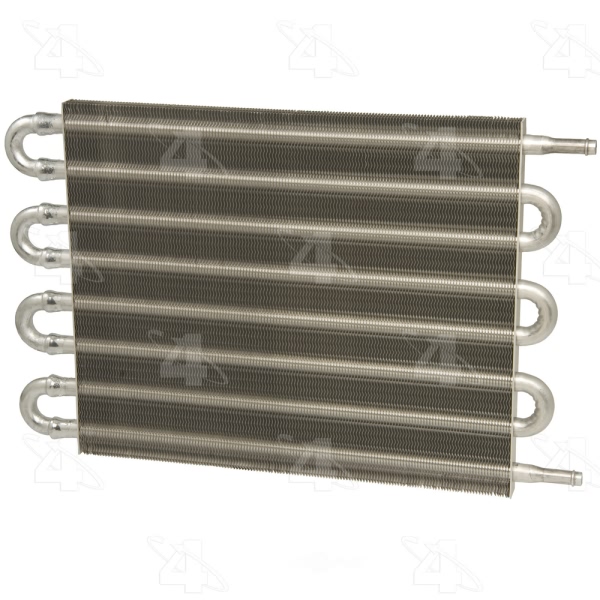

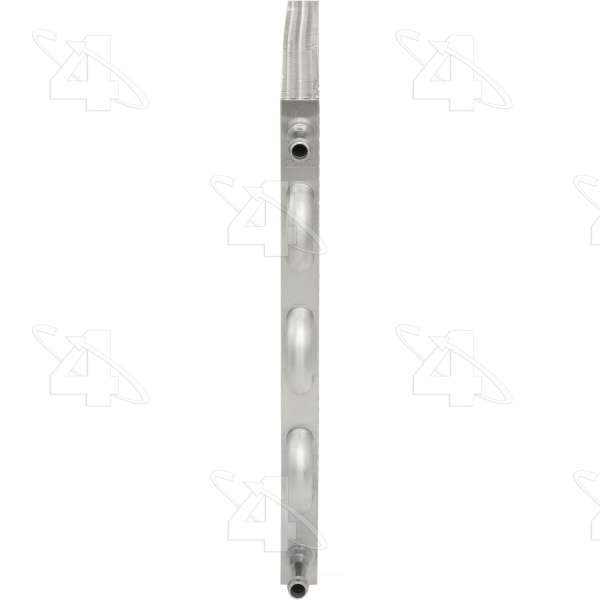

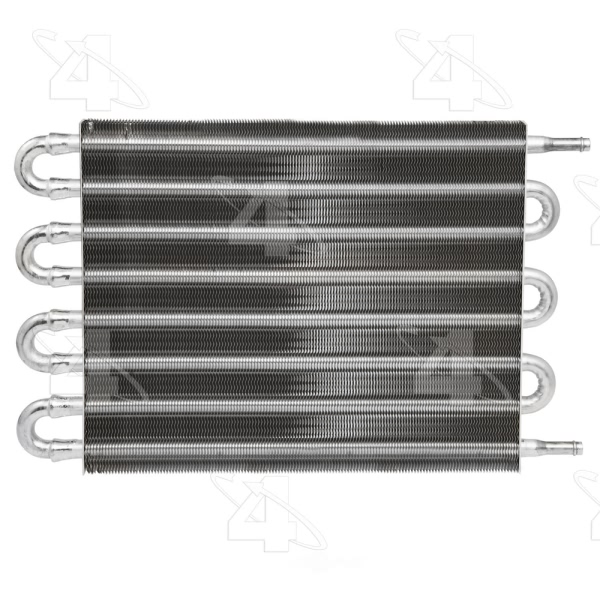

Part Description | Ultra Cool Automatic Transmission Oil Cooler |
Bracket | w/o Bracket |
Connector Fitting | 3/8 |
Connector Gender | Male |
Connector Type | Hose Barb |
Contains Spring | No |
Core Row Quantity | 8 |
Core Tube Width | 0.500 |
Electric Fan | No |
Finish | Silver |
Height IN | 10.000 |
Height MM | 254.000 |
Length | 15.875 |
Length MM | 403.225 |
Material | Aluminum |
Mounting Hardware Included | Included |
O.E. Replacement | No |
Outlet Diameter | 0.375 |
Overall Depth IN | 15.875 |
Overall Height IN | 16.5625 |
Overall Height MM | 420.6875 |
Overall Width IN | 11.15625 |
Overall Width MM | 283.6164 |
Performance Rated | Yes |
Printed Foot Note | Size - 10" x 15 7/8" |
Thickness | 0.750 |
UPC | 096361530034 |
Year Make Model | Trim | Engine |
---|---|---|
1968-1970 American Motors AMX | All Trims | All Engines |
1978-1979 American Motors AMX | All Trims | 8 Cyl 5.0L |
1958-1964 American Motors Ambassador | All Trims | All Engines |
1965-1966 American Motors Ambassador | All Trims | 8 Cyl 5.3L |
1966 American Motors Ambassador | All Trims | 8 Cyl 5.4L |
1966-1969 American Motors Ambassador | All Trims | 8 Cyl 4.7L |
1967-1969 American Motors Ambassador | All Trims | 8 Cyl 5.6L |
1968-1969 American Motors Ambassador | All Trims | 8 Cyl 4.8L |
1968-1970 American Motors Ambassador | All Trims | 8 Cyl 6.4L |
1969 American Motors Ambassador | All Trims | 8 Cyl 5.1L |
