Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 35566 |

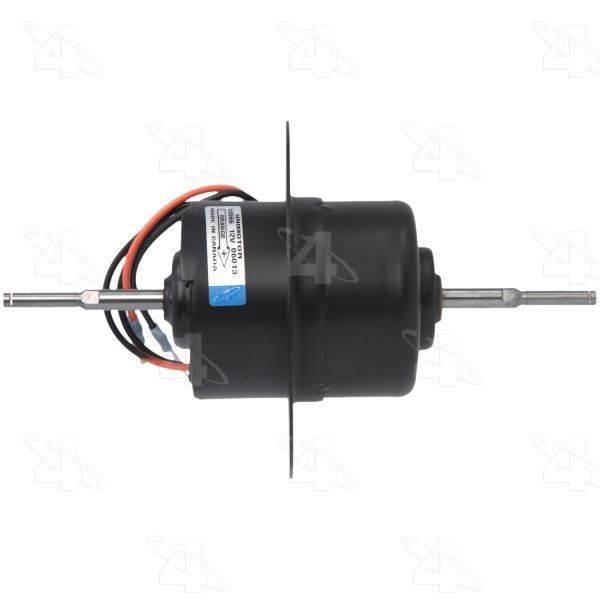

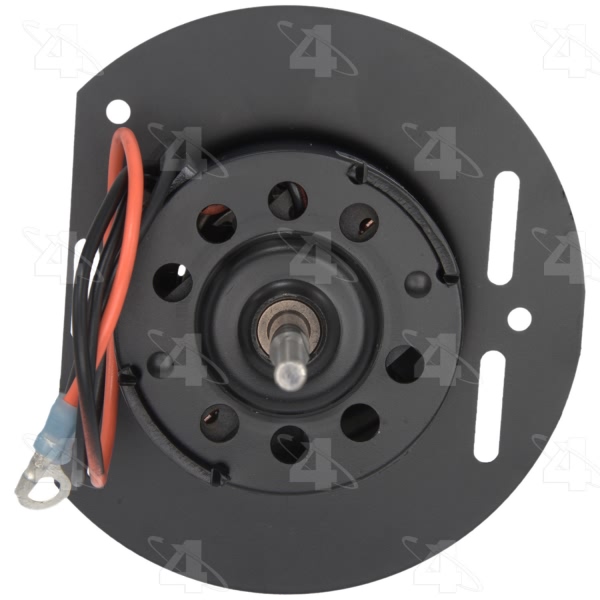

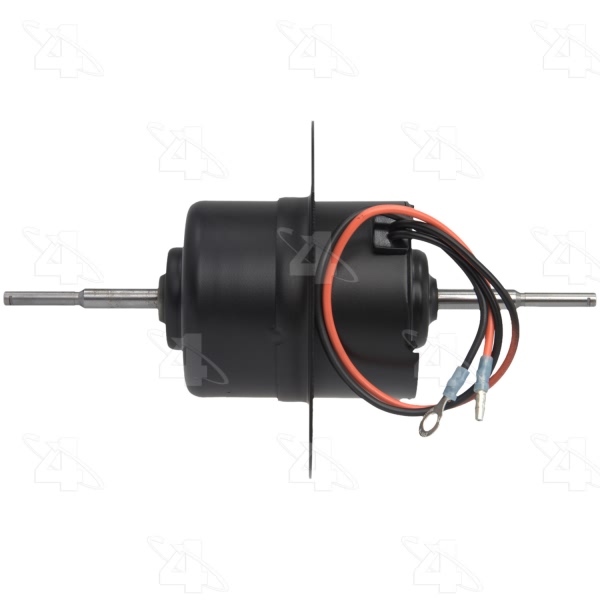

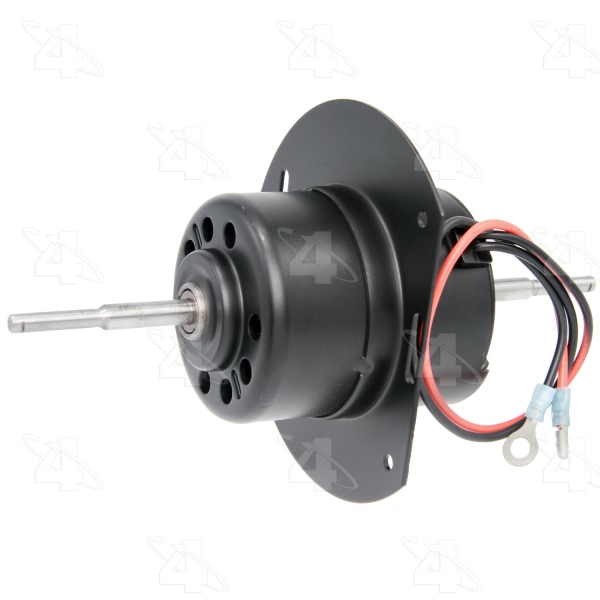

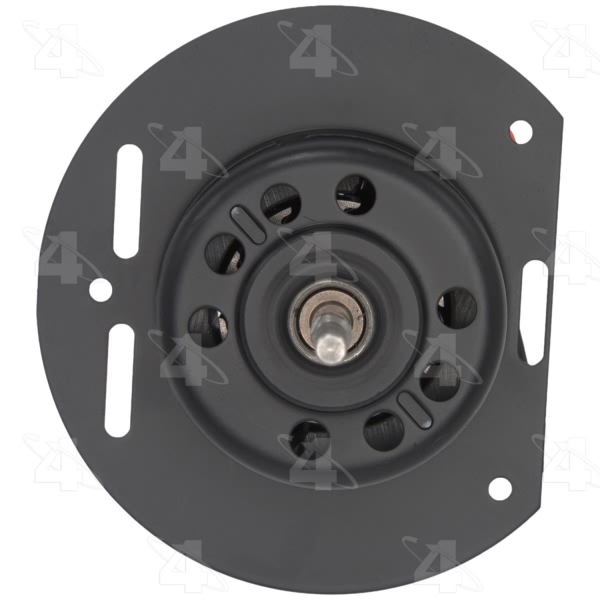

Part Description | Hvac Blower Motor Without Wheel |
Cage Wheel Included | w/o Wheel |
Connector Gender | Female |
Connector qty | 1 |
Flanged End | No |
Material | Metal |
Motor Diameter | 3.000 |
Motor Length | 4.000 |
Mount Type | OE Mount |
New or Reman | New |
Number of Terminals | 2 |
O.E. Replacement | Yes |
Printed Foot Note | When replacing a 3-Speed motor. Switch/Resistor is required |
Rotation | CW |
Shaft Diameter | 0.3125 |
Shaft Length | 2.1875 |
Shaft Shape | D-Shaped |
Shaft Type | D-Shaped |
Style | Flanged |

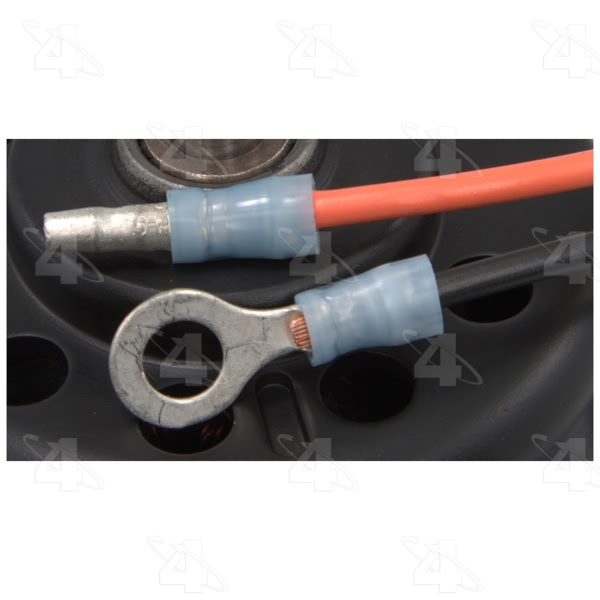

Terminal Type | 2 Lead Wires, 1 Spade, 1 Circle or 2 Lead Wires; 1 Spade; 1 Circle |
UPC | 096361355668 |
Vented | Vented |
Voltage | 12 |
Wheel Dia. IN | Yes |
Year Make Model | Trim | Engine |
---|---|---|
1974-1975 Volvo 164 | All Trims | All Engines |
1990-1993 Volvo 240 | All Trims | All Engines |
1975-1984 Volvo 242 | All Trims | All Engines |
1975-1989 Volvo 244 | All Trims | All Engines |
1975-1989 Volvo 245 | All Trims | All Engines |
1976 Volvo 262 | All Trims | All Engines |
1978-1981 Volvo 262 | All Trims | All Engines |
1976-1982 Volvo 264 | All Trims | All Engines |
1976-1981 Volvo 265 | All Trims | All Engines |
1984 Volvo DL | All Trims | All Engines |
