Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 76975 |

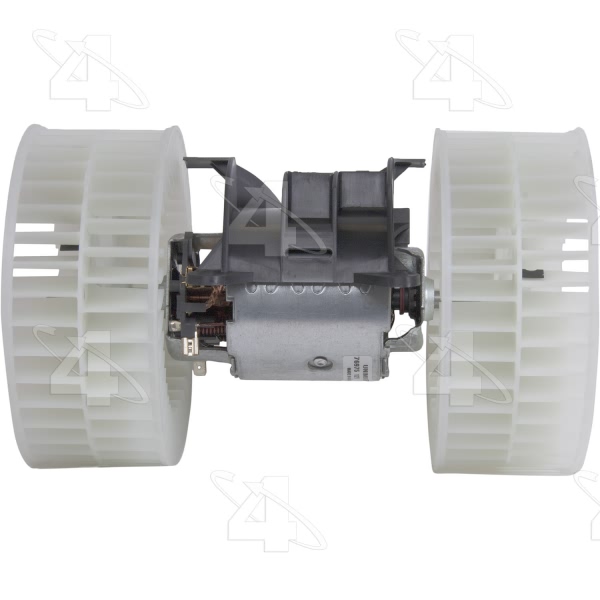

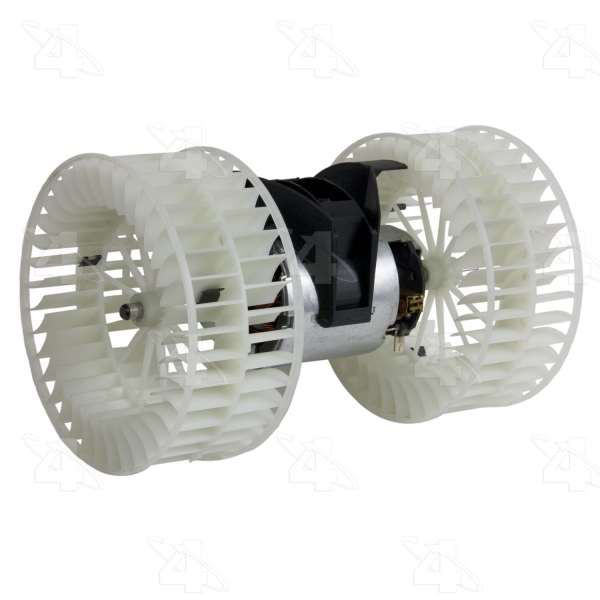

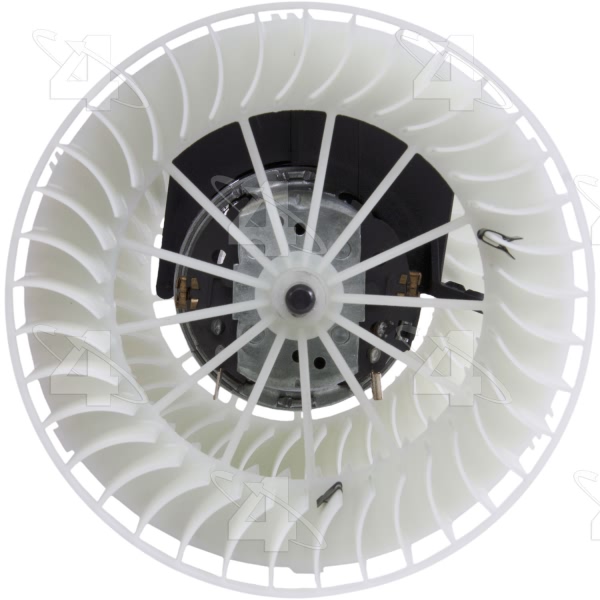

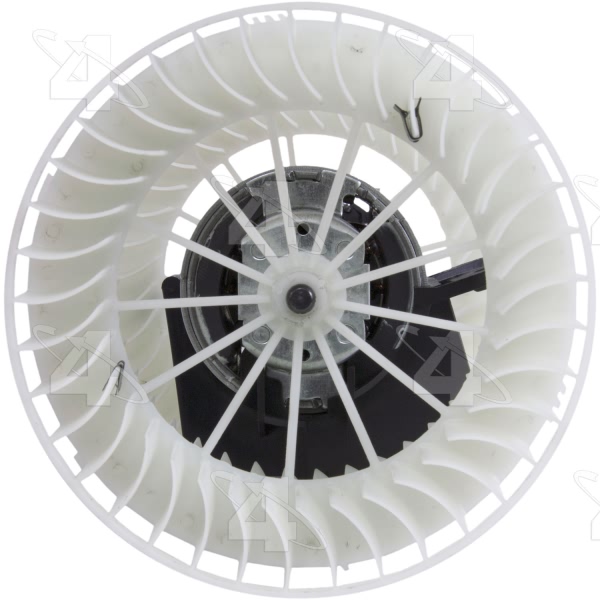

Part Description | Hvac Blower Motor With Wheel |
Cage Wheel Included | w/ Wheel |
Connector Gender | Male |
Connector qty | 1 |
Flanged End | No |
Material | Metal |
Motor Dia. MM | 76.000 |
Motor Diameter | 3.000 |
Motor Length | 3.500 |
Motor Length MM | 89.000 |
Mount Type | OE Mount |
New or Reman | New |
Number of Terminals | 2 |
O.E. Replacement | Yes |
Rotation | CCWLE |
Shaft Diameter | 0.3125 |
Shaft Length | 2.375 |
Shaft Length MM | 60.000 |
Style | Double Shaft |
Terminal Type | 2 Spade Terminals |
Tube | No |
UPC | 096361769755 |
Vented | Vented |
Voltage | 12 |
Wheel Dia. IN | 6.000 |
Wheel Height IN | 2.4375 |
Year Make Model | Trim | Engine |
---|---|---|
1987-1989 Mercedes-Benz 260E | All Trims | All Engines |
1988-1993 Mercedes-Benz 300CE | All Trims | All Engines |
1987 Mercedes-Benz 300D | All Trims | All Engines |
1990-1993 Mercedes-Benz 300D | All Trims | All Engines |
1986-1993 Mercedes-Benz 300E | All Trims | All Engines |
1992-1993 Mercedes-Benz 300SD | All Trims | All Engines |
1990-1993 Mercedes-Benz 300SE | All Trims | All Engines |
1990-1991 Mercedes-Benz 300SEL | All Trims | All Engines |
1990-1993 Mercedes-Benz 300SL | All Trims | All Engines |
1987 Mercedes-Benz 300TD | All Trims | All Engines |
