Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 76972 |

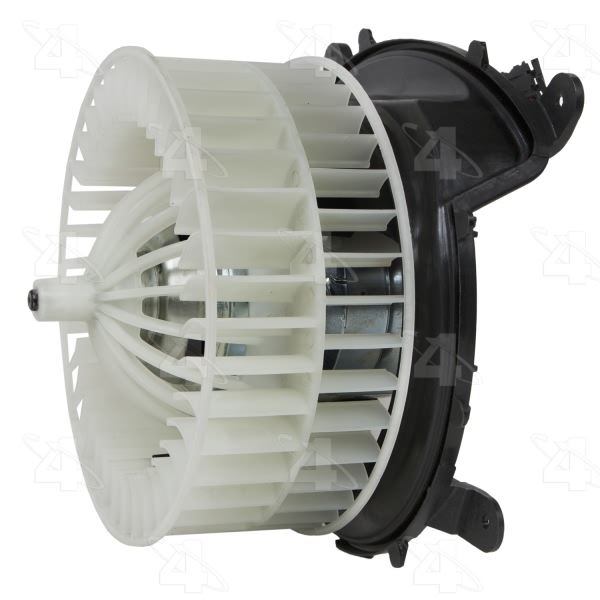

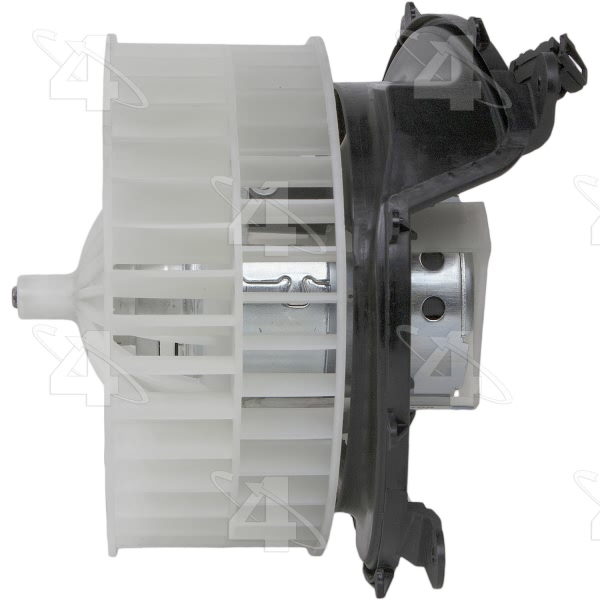

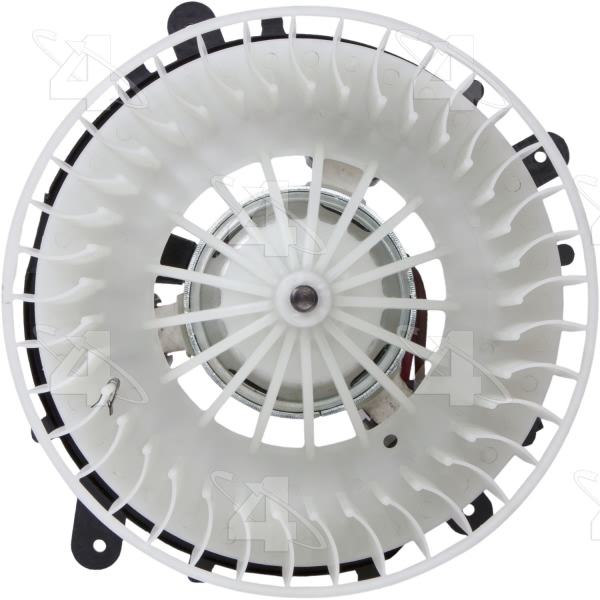

Part Description | Hvac Blower Motor With Wheel |
Cage Wheel Included | w/ Wheel |
Connector Gender | Male |
Connector qty | 1 |
Flanged End | Yes |
Material | Plastic |
Motor Dia. MM | 73.025 |
Motor Diameter | 2.875 |
Motor Length | 4.8125 |
Motor Length MM | 122.237 |
Mount Type | OE Mount |
New or Reman | New |
Number of Terminals | 2 |
O.E. Replacement | Yes |
Rotation | CCW |
Shaft Diameter | 0.3125 |
Shaft Length | 1.6875 |
Shaft Length MM | 42.863 |
Style | Flanged |

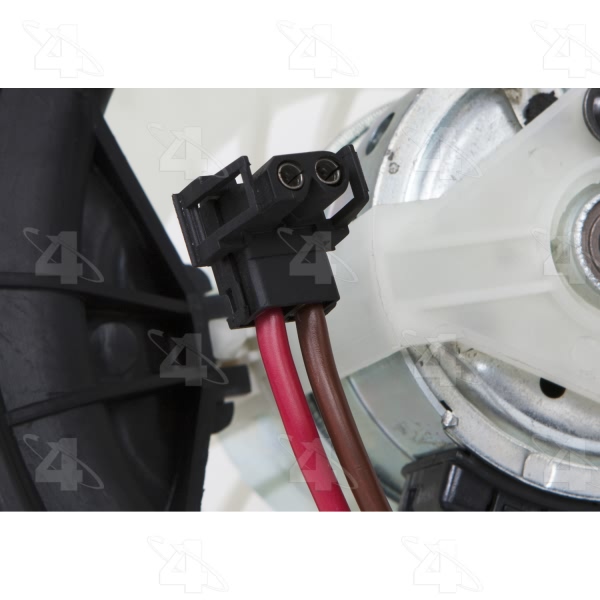

Terminal Type | 2 Lead Wires w/ Connector |
UPC | 096361769724 |
Vented | Vented |
Voltage | 12 |
Wheel Dia. IN | 6.875 |
Wheel Height IN | 2.750 |
Year Make Model | Trim | Engine |
---|---|---|
2000-2006 Mercedes-Benz CL500 | All Trims | All Engines |
2001-2006 Mercedes-Benz CL55 AMG | All Trims | All Engines |
2001-2006 Mercedes-Benz CL600 | All Trims | All Engines |
2005-2006 Mercedes-Benz CL65 AMG | All Trims | All Engines |
2006 Mercedes-Benz S350 | All Trims | All Engines |
2000-2006 Mercedes-Benz S430 | All Trims | All Engines |
2000-2006 Mercedes-Benz S500 | All Trims | All Engines |
2001-2006 Mercedes-Benz S55 AMG | All Trims | All Engines |
2000-2006 Mercedes-Benz S600 | All Trims | All Engines |
2005-2006 Mercedes-Benz S65 AMG | All Trims | All Engines |
