Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 76966 |

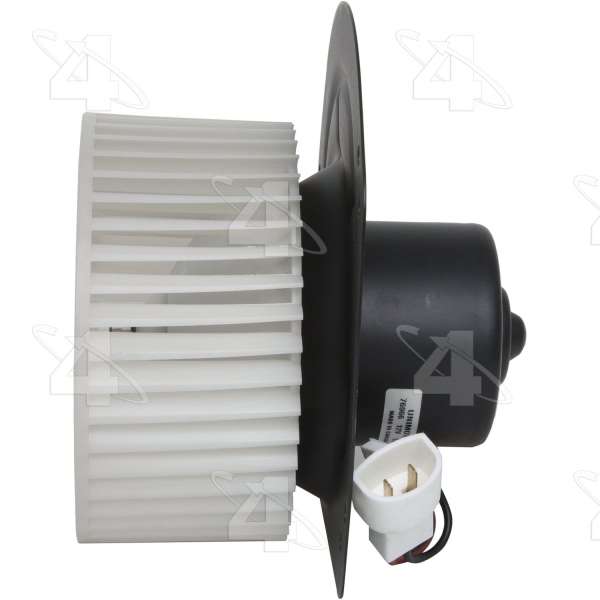

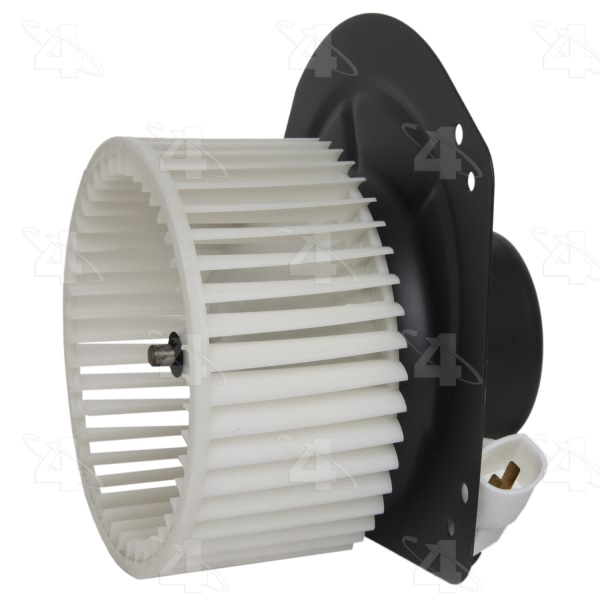

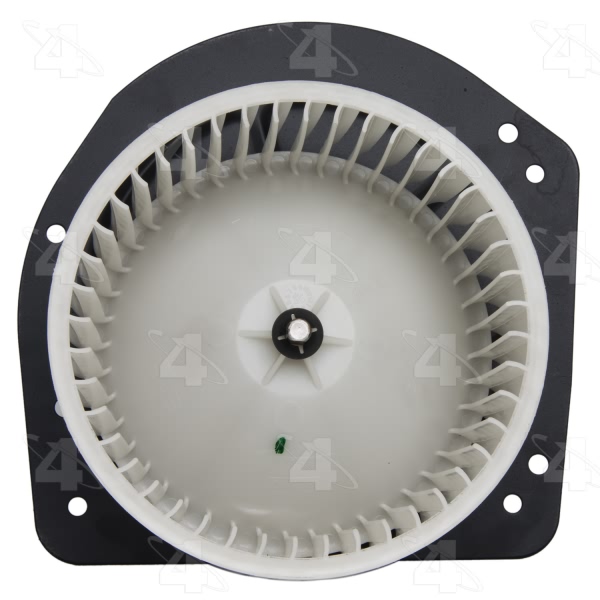

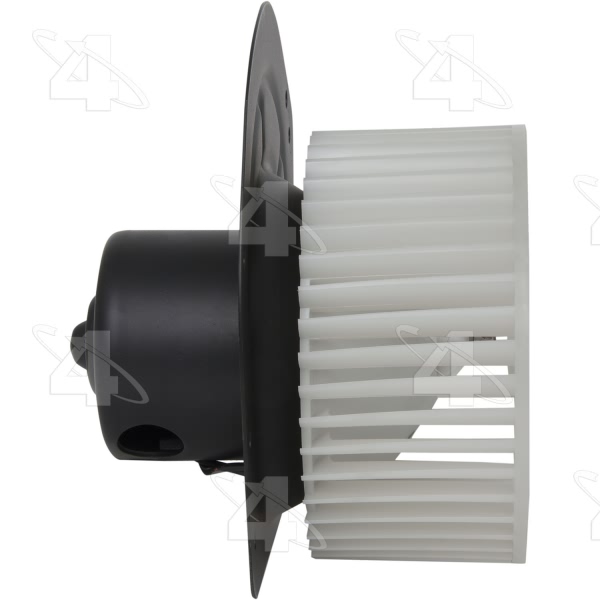

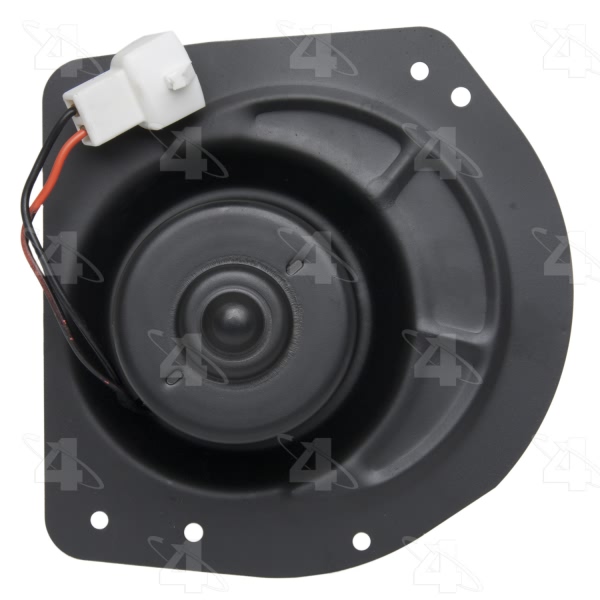

Part Description | Hvac Blower Motor With Wheel |
Cage Wheel Included | w/ Wheel |
Connector Gender | Female |
Connector qty | 1 |
Flanged End | Yes |
Material | Metal |
Motor Dia. MM | 82.550 |
Motor Diameter | 3.250 |
Motor Length | 4.000 |
Motor Length MM | 101.600 |
Mount Type | OE Mount |
New or Reman | New |
Number of Terminals | 2 |
O.E. Replacement | Yes |
Rotation | CW |
Shaft Diameter | 0.3125 |
Shaft Length | 1.500 |
Shaft Length MM | 38.100 |
Style | Flanged |

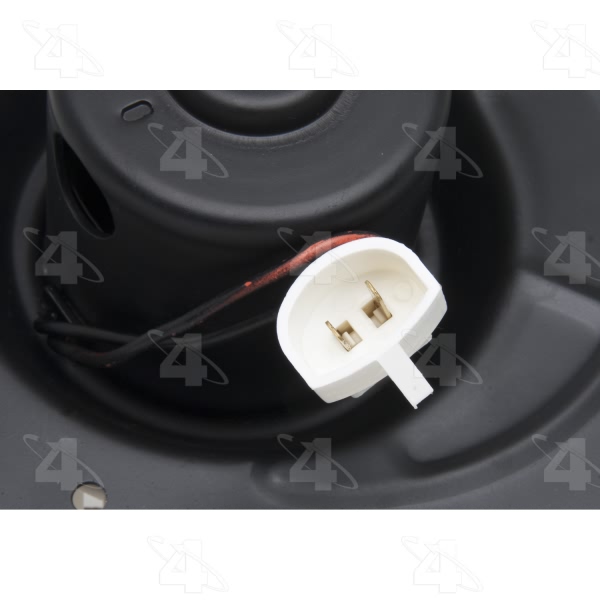

Terminal Type | 2 Lead Wires w/ Connector |
UPC | 096361769663 |
Vented | Vented |
Voltage | 12 |
Wheel Dia. IN | 6.000 |
Wheel Height IN | 3.000 |
Year Make Model | Trim | Engine |
---|---|---|
1980-1986 Ford Bronco | All Trims | All Engines |
1987-1991 Ford Country Squire | All Trims | All Engines |
1992-2004 Ford Crown Victoria | All Trims | All Engines |
1980-1983 Ford F-100 | All Trims | All Engines |
1980-1986 Ford F-150 | All Trims | All Engines |
1986 Ford F-200 | All Trims | All Engines |
1980-1986 Ford F-250 | All Trims | All Engines |
1980-1986 Ford F-350 | All Trims | All Engines |
1991-2004 Ford Grand Marquis | All Trims | All Engines |
1979 Ford LTD | Landau | All Engines |
