Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 76946 |

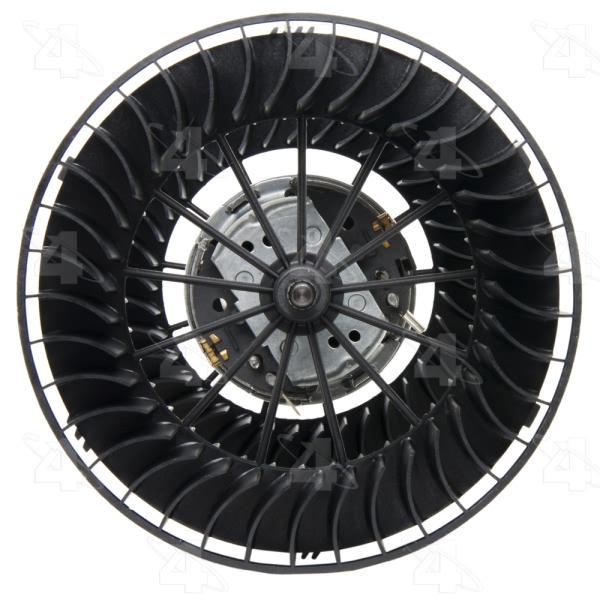

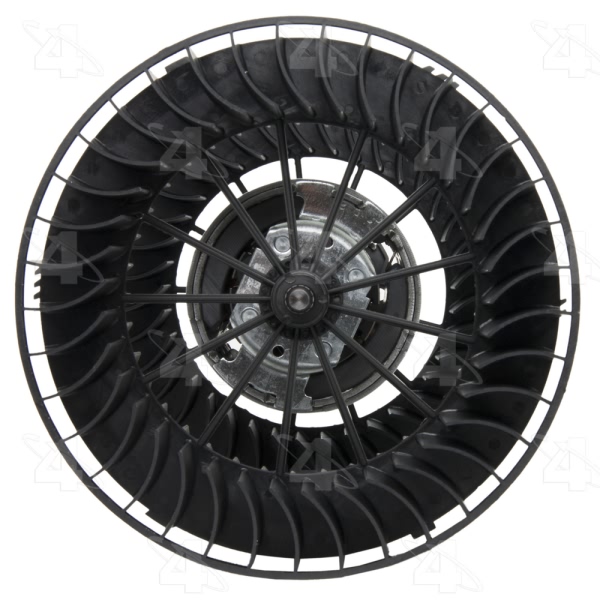

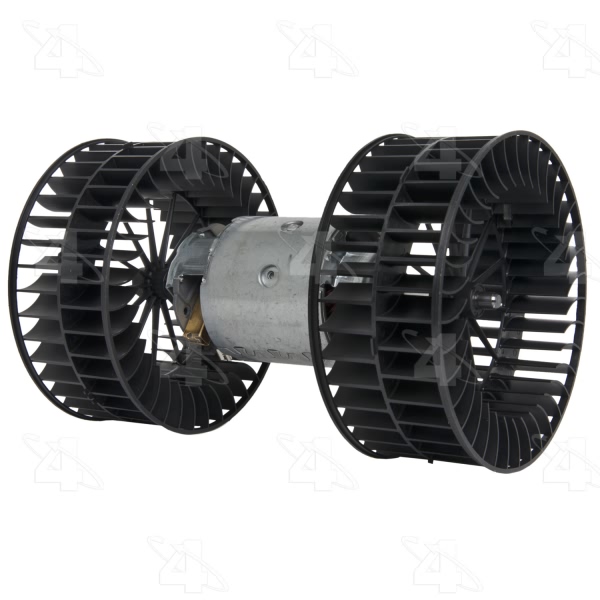

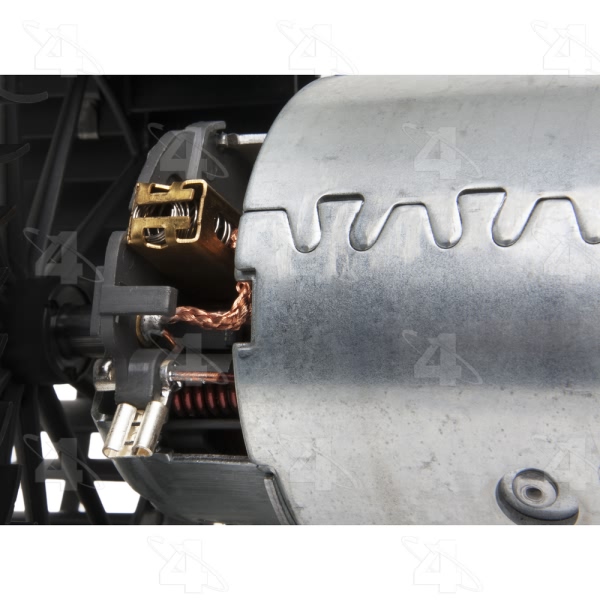

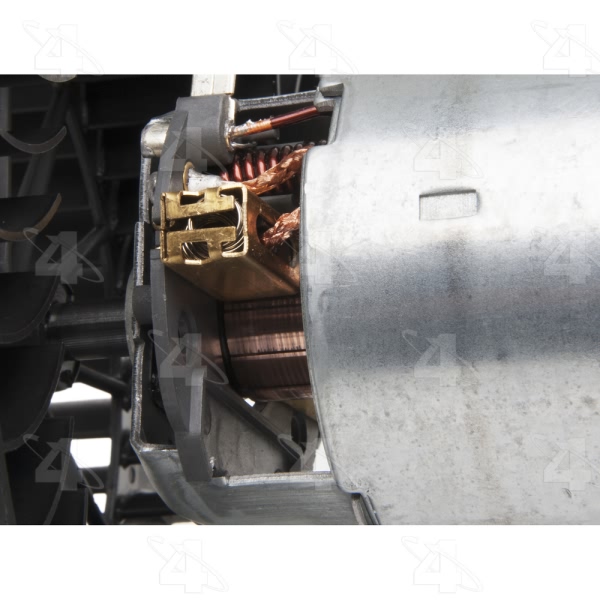

Part Description | Hvac Blower Motor With Wheel |
Cage Wheel Included | w/ Wheel |
Connector Gender | Male |
Connector qty | 1 |
Flanged End | No |
Material | Metal |
Motor Diameter | 2.875 |
Motor Length | 5.1875 |
Mount Type | OE Mount |
New or Reman | New |
Number of Terminals | 2 |
O.E. Replacement | Yes |
Rotation | CCWLE |
Shaft Diameter | 0.3125 |
Shaft Length | 2.125 |
Style | Double Shaft |
Terminal Type | 2 Spade Terminals |
UPC | 096361769465 |
Vented | Vented |
Voltage | 12 |
Wheel Dia. IN | 6.000 |
Wheel Height IN | 2.500 |
Year Make Model | Trim | Engine |
---|---|---|
1989-1995 BMW 525i | All Trims | All Engines |
1993 BMW 525iT | All Trims | All Engines |
1994-1995 BMW 530i | All Trims | All Engines |
1988-1993 BMW 535i | All Trims | All Engines |
1988 BMW 535is | All Trims | All Engines |
1994-1995 BMW 540i | All Trims | All Engines |
1985-1992 BMW 735i | All Trims | All Engines |
1988-1992 BMW 735iL | All Trims | All Engines |
1993-1994 BMW 740i | All Trims | All Engines |
1993-1994 BMW 740iL | All Trims | All Engines |
