Vehicle Specific
Check if it fits by entering your vehicle infoBrand | DuraGo |
Part Number | BD920176 |

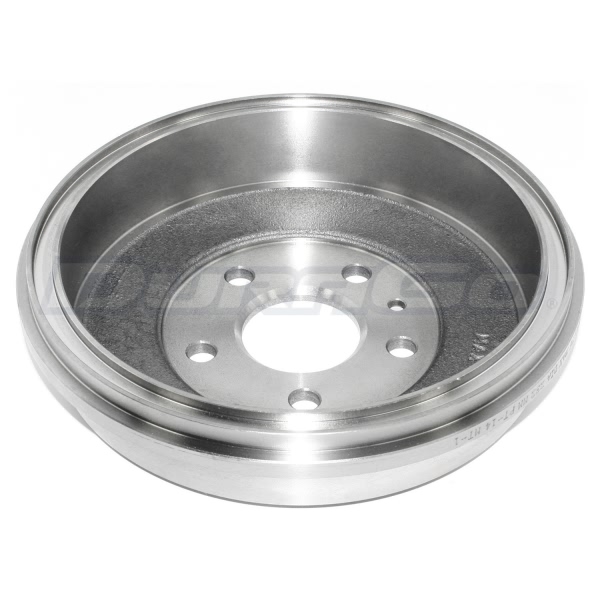

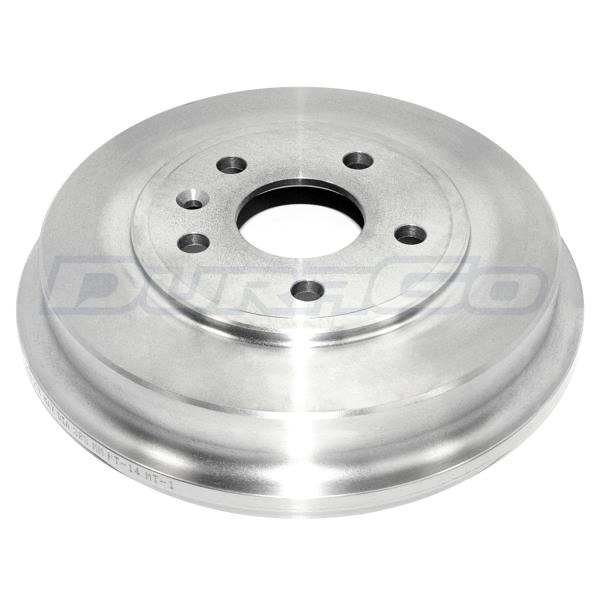

Part Description | Rear Brake Drum |
Abs Sensor Ring Includes | No |
Bolt Circle Diameter | 105mm (4.13") |
Bolt Hole Diameter | 14.2mm (0.56") |
Bolt Hole Quantity | 5 |
Brake Surface Width | 47.2mm (1.86") |
Center Hole Diameter | 60mm (2.36") |
Construction | Full Cast |
Height | 63.3mm (2.49") |
Maximum Diameter | 232mm (9.13") |
Nominal Diameter | 230mm (9.06") |
Outside Diameter | 274.2mm (10.80") |
Type | Plain Cooling Fins |
UPC | 756632250015 |
Year Make Model | Trim | Engine |
---|---|---|
2012-2020 Chevrolet Sonic | All Trims | All Engines |
2013-2020 Chevrolet Trax | All Trims | All Engines |
