Vehicle Specific
Check if it fits by entering your vehicle infoBrand | DuraGo |
Part Number | BD920118 |

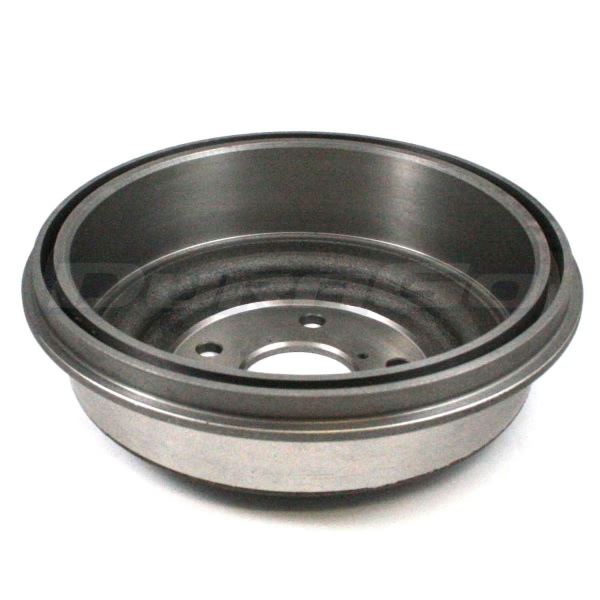

Part Description | Rear Brake Drum |
Abs Sensor Ring Includes | No |
Bolt Circle Diameter | 139.7mm (5.5") |
Bolt Hole Diameter | 17.2mm (0.68") |
Bolt Hole Quantity | 5 |
Brake Surface Width | 73.5mm (2.89") |
Center Hole Diameter | 78.4mm (3.09") |
Construction | Full Cast |
Drum Type | Floating |
Height | 111.8mm (4.40") |
Maximum Diameter | 297.5mm (11.71") |
Nominal Diameter | 295mm (11.61") |
Outside Diameter | 358.7mm (14.12") |
Type | Plain Cooling Fins |
UPC | 756632161250 |
Year Make Model | Trim | Engine |
---|---|---|
2005-2010 Dodge Dakota | All Trims | All Engines |
2006-2009 Mitsubishi Raider | All Trims | All Engines |
2011 Ram Dakota | All Trims | All Engines |
