Vehicle Specific
Check if it fits by entering your vehicle infoBrand | DuraGo |
Part Number | BD8997 |

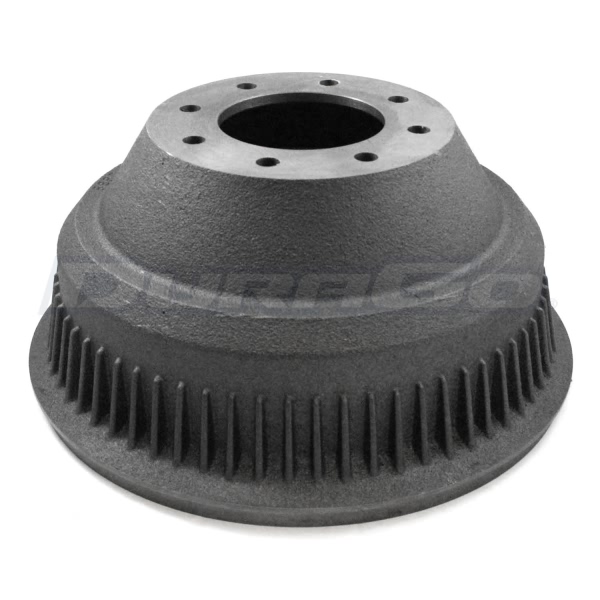

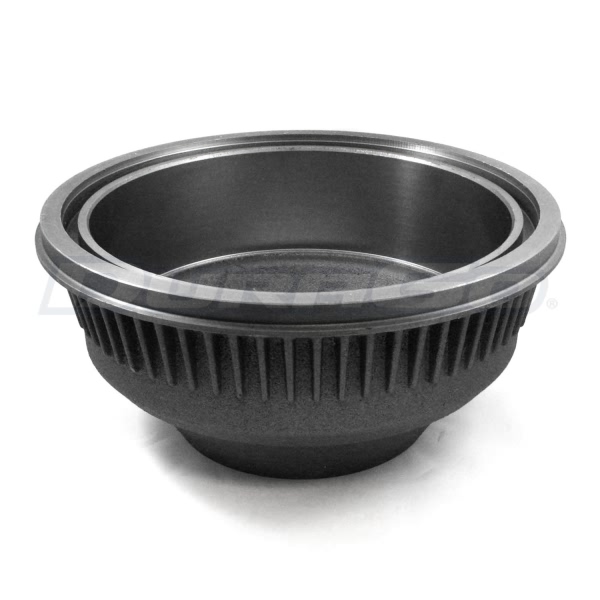

Part Description | Rear Brake Drum |
Abs Sensor Ring Includes | No |
Bolt Circle Diameter | 165.1mm (6.5") |
Bolt Hole Diameter | 15.5mm (0.61") |
Bolt Hole Quantity | 8 |
Brake Surface Width | 102mm (4.02") |
Center Hole Diameter | 116.7mm (4.59") |
Construction | Full Cast |
Drum Type | Floating |
Height | 193mm (7.60") |
Maximum Diameter | 332.49mm (13.09") |
Nominal Diameter | 330.2mm (13") |
Outside Diameter | 409mm (16.10") |
Type | Finned Cooling Fins |
UPC | 756632101140 |
Year Make Model | Trim | Engine |
---|---|---|
1990-2000 Chevrolet C3500 | All Trims | All Engines |
1996-2002 Chevrolet Express 3500 | All Trims | All Engines |
1990-1996 Chevrolet G30 | All Trims | All Engines |
1990-2000 Chevrolet K3500 | All Trims | All Engines |
1990-1999 Chevrolet P30 | All Trims | All Engines |
1990-2000 GMC C3500 | All Trims | All Engines |
1990-1996 GMC G3500 | All Trims | All Engines |
1990-2000 GMC K3500 | All Trims | All Engines |
1990-1999 GMC P3500 | All Trims | All Engines |
1996-2002 GMC Savana 3500 | All Trims | All Engines |
