Vehicle Specific
Check if it fits by entering your vehicle infoBrand | DuraGo |
Part Number | BD8996 |

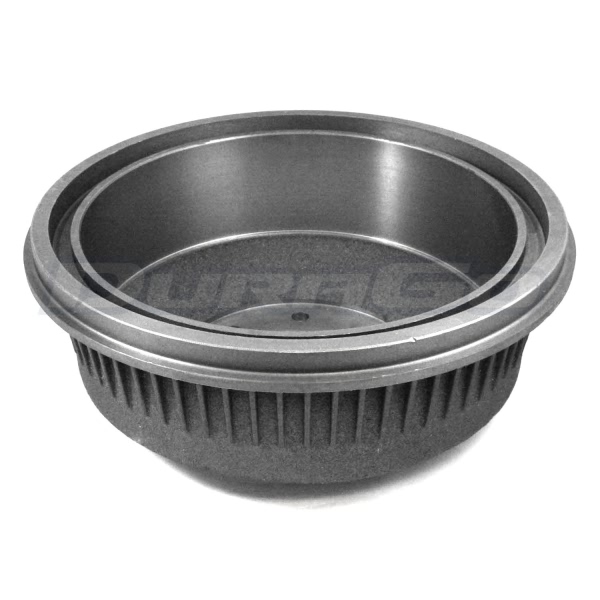

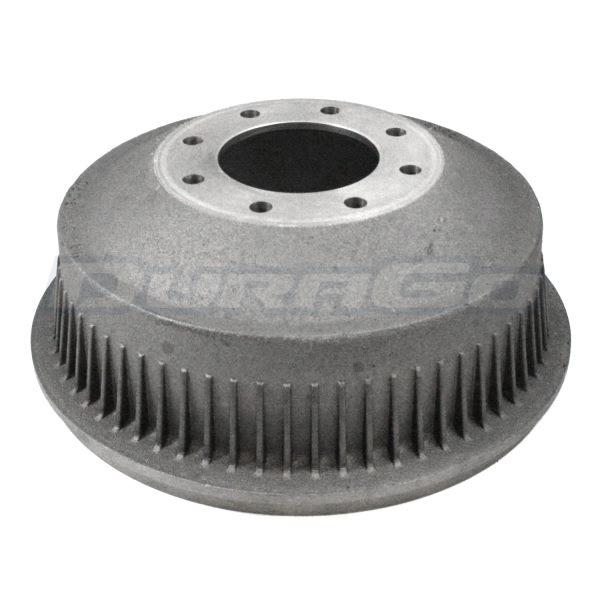

Part Description | Rear Brake Drum |
Abs Sensor Ring Includes | No |
Bolt Circle Diameter | 165.1mm (6.5") |
Bolt Hole Diameter | 15.5mm (0.61") |
Bolt Hole Quantity | 8 |
Brake Surface Width | 100mm (3.94") |
Center Hole Diameter | 116.7mm (4.59") |
Construction | Full Cast |
Drum Type | Floating |
Height | 160.6mm (6.32") |
Maximum Diameter | 332.49mm (13.09") |
Nominal Diameter | 330.2mm (13") |
Outside Diameter | 417.5mm (16.44") |
Type | Plain Cooling Fins |
UPC | 756632105773 |
Year Make Model | Trim | Engine |
---|---|---|
1994-1999 Chevrolet C1500 Suburban | All Trims | All Engines |
1997-2000 Chevrolet C2500 | All Trims | All Engines |
1992-1999 Chevrolet C2500 Suburban | All Trims | All Engines |
1975-1986 Chevrolet C30 | All Trims | All Engines |
1974 Chevrolet C30 Pickup | All Trims | All Engines |
1997-2000 Chevrolet C3500 | All Trims | All Engines |
1992-1999 Chevrolet K2500 Suburban | All Trims | All Engines |
1977-1986 Chevrolet K30 | All Trims | All Engines |
1997-2000 Chevrolet K3500 | All Trims | All Engines |
1975-1989 Chevrolet P30 | All Trims | All Engines |
