Vehicle Specific
Check if it fits by entering your vehicle infoBrand | DuraGo |
Part Number | BD8957 |

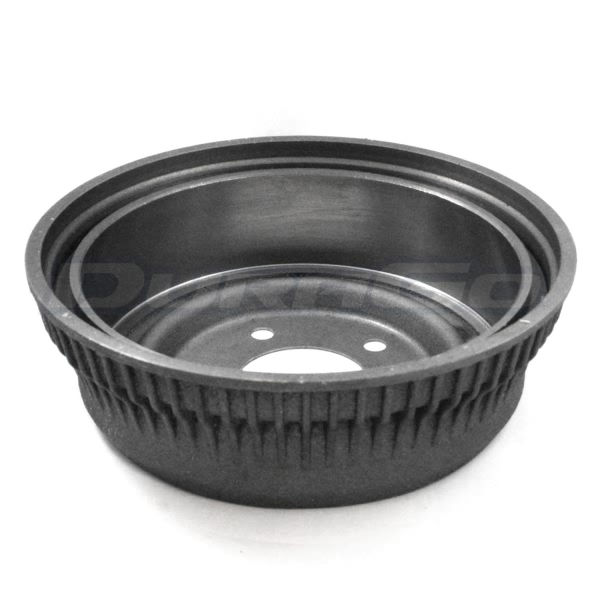

Part Description | Rear Brake Drum |
Abs Sensor Ring Includes | No |
Bolt Circle Diameter | 139.7mm (5.5") |
Bolt Hole Diameter | 16.5mm (0.65") |
Bolt Hole Quantity | 5 |
Brake Surface Width | 75.6mm (2.98") |
Center Hole Diameter | 90.5mm (3.56") |
Construction | Composite |
Drum Type | Floating |
Height | 114mm (4.49") |
Maximum Diameter | 281.7mm (11.09") |
Nominal Diameter | 279.4mm (11") |
Outside Diameter | 346mm (13.62") |
Type | Finned Cooling Fins |
UPC | 756632101027 |
Year Make Model | Trim | Engine |
---|---|---|
1985-1994 Dodge B150 | All Trims | All Engines |
1995-1997 Dodge B1500 | All Trims | All Engines |
1985-1994 Dodge B250 | All Trims | All Engines |
1995-1997 Dodge B2500 | All Trims | All Engines |
1986-1989 Dodge D100 | All Trims | All Engines |
1985-1993 Dodge D150 | All Trims | All Engines |
1988-1993 Dodge D250 | All Trims | All Engines |
1984-1993 Dodge Ramcharger | All Trims | All Engines |
1986-1989 Dodge W100 | All Trims | All Engines |
1984-1993 Dodge W150 | All Trims | All Engines |
