Check if it fits by entering your vehicle infoBrand | DuraGo |

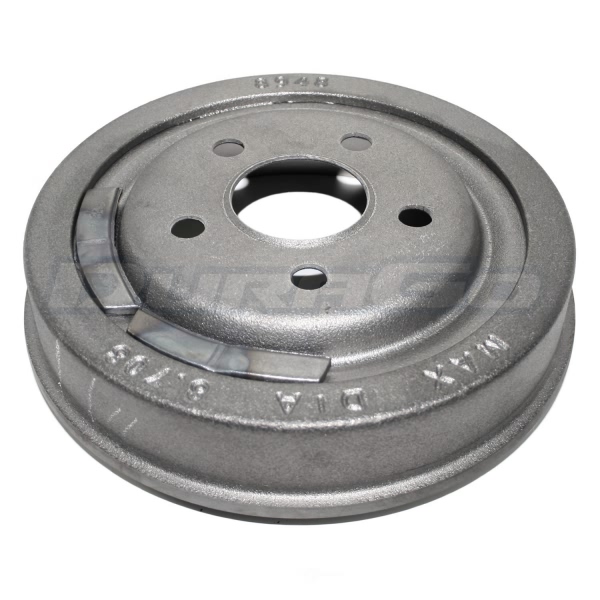

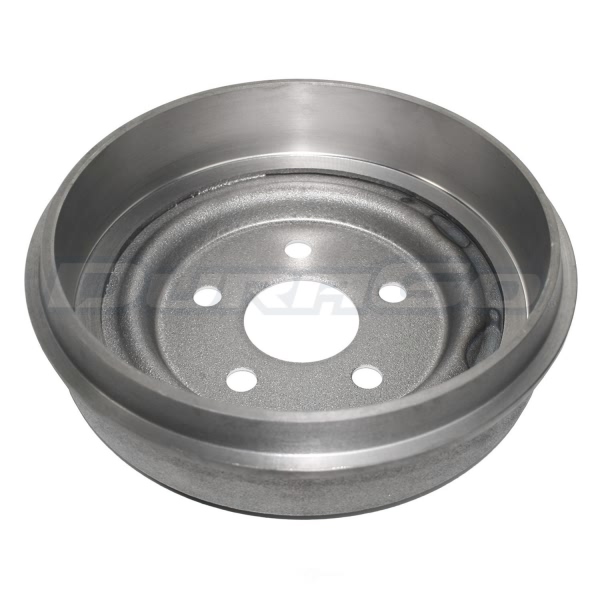

Part Number | BD8948 |
Part Description | Rear Brake Drum |
Abs Sensor Ring Includes | No |
Bolt Circle Diameter | 100mm (3.94") |
Bolt Hole Diameter | 14.5mm (0.57") |
Bolt Hole Quantity | 5 |
Brake Surface Width | 45.3mm (1.78") |
Center Hole Diameter | 57.6mm (2.27") |
Construction | Composite |
Drum Type | Floating |
Height | 67.9mm (2.67") |
Maximum Diameter | 221.3mm (8.71") |
Nominal Diameter | 220mm (8.66") |
Outside Diameter | 250.6mm (9.87") |
Type | Plain Cooling Fins |
UPC | 756632100945 |
Year Make Model | Trim | Engine |
---|---|---|
1984-1988 Chrysler Daytona | All Trims | All Engines |
1991 Chrysler Daytona | ES | All Engines |
1991-1993 Chrysler Daytona | All Trims | All Engines |
1991-1993 Chrysler Daytona | Base | All Engines |
1985 Chrysler Executive Limousine | All Trims | All Engines |
1984-1986 Chrysler Laser | All Trims | All Engines |
1984-1986 Chrysler LeBaron | Base | All Engines |
1984-1986 Chrysler LeBaron | Mark Cross | All Engines |
1988 Chrysler LeBaron | Base | All Engines |
1988 Chrysler LeBaron | Premium | All Engines |
