Vehicle Specific
Check if it fits by entering your vehicle infoBrand | DuraGo |
Part Number | BD8923 |

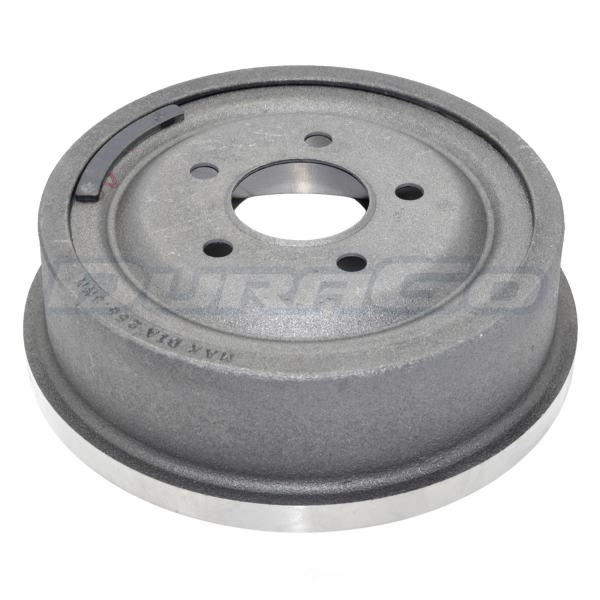

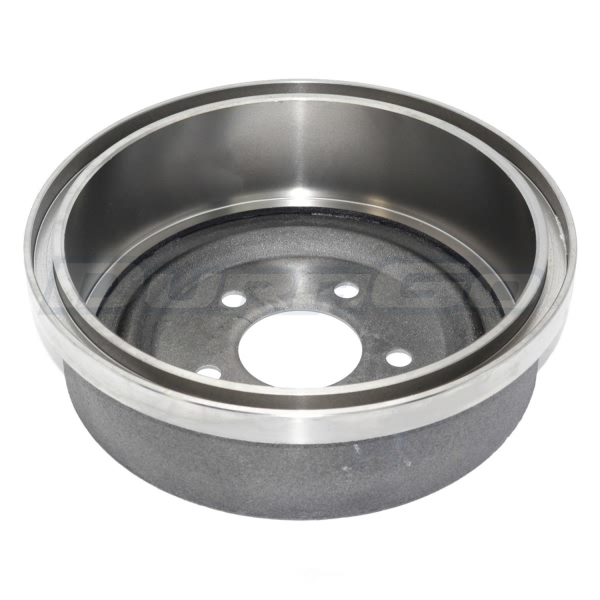

Part Description | Rear Brake Drum |
Abs Sensor Ring Includes | No |
Bolt Circle Diameter | 114.3mm (4.5") |
Bolt Hole Diameter | 14.5mm (0.57") |
Bolt Hole Quantity | 5 |
Brake Surface Width | 73.7mm (2.90") |
Center Hole Diameter | 70.8mm (2.79") |
Construction | Composite |
Drum Type | Floating |
Height | 88.6mm (3.49") |
Maximum Diameter | 256.3mm (10.09") |
Nominal Diameter | 254mm (10") |
Outside Diameter | 298mm (11.73") |
Type | Plain Cooling Fins |
UPC | 756632100808 |
Year Make Model | Trim | Engine |
---|---|---|
1991-1994 Ford Explorer | All Trims | All Engines |
1980-1983 Ford F-100 | All Trims | All Engines |
1980-1983 Ford F-150 | All Trims | All Engines |
1998-2009 Ford Ranger | All Trims | All Engines |
2001-2009 Mazda B2300 | All Trims | All Engines |
1998-2001 Mazda B2500 | All Trims | All Engines |
1998-2007 Mazda B3000 | All Trims | All Engines |
1998-2009 Mazda B4000 | All Trims | All Engines |
1991-1994 Mazda Navajo | All Trims | All Engines |
