Vehicle Specific
Check if it fits by entering your vehicle infoBrand | DuraGo |
Part Number | BD8892 |

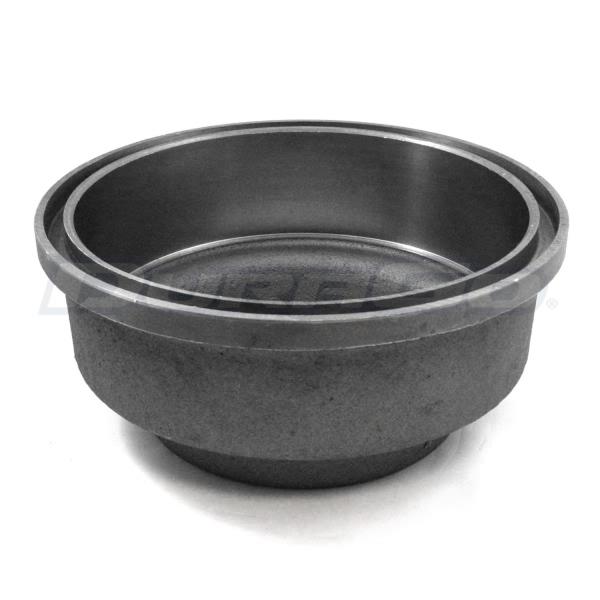

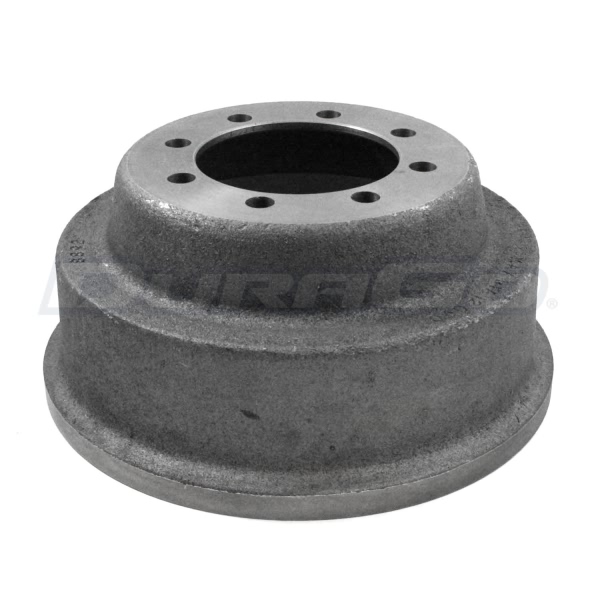

Part Description | Rear Brake Drum |
Abs Sensor Ring Includes | No |
Bolt Circle Diameter | 165.1mm (6.5") |
Bolt Hole Diameter | 17.7mm (0.70") |
Bolt Hole Quantity | 8 |
Brake Surface Width | 90mm (3.54") |
Center Hole Diameter | 132mm (5.20") |
Construction | Full Cast |
Drum Type | Floating |
Height | 159.7mm (6.29") |
Maximum Diameter | 307.09mm (12.09") |
Nominal Diameter | 304.8mm (12") |
Outside Diameter | 356.4mm (14.03") |
Type | Plain Cooling Fins |
UPC | 756632100730 |
Year Make Model | Trim | Engine |
---|---|---|
1975-1977 Dodge B300 | All Trims | All Engines |
1971-1974 Dodge B300 Van | All Trims | All Engines |
1982-1987 Dodge B350 | All Trims | All Engines |
1978 Dodge CB300 | All Trims | All Engines |
1972-1973 Dodge D200 Pickup | All Trims | All Engines |
1982-1987 Dodge D250 | All Trims | All Engines |
1990-1993 Dodge D250 | All Trims | All Engines |
1975-1977 Dodge D300 | All Trims | All Engines |
1980 Dodge D300 | All Trims | All Engines |
1972-1974 Dodge D300 Pickup | All Trims | All Engines |
