Vehicle Specific
Check if it fits by entering your vehicle infoBrand | DuraGo |
Part Number | BD8877 |

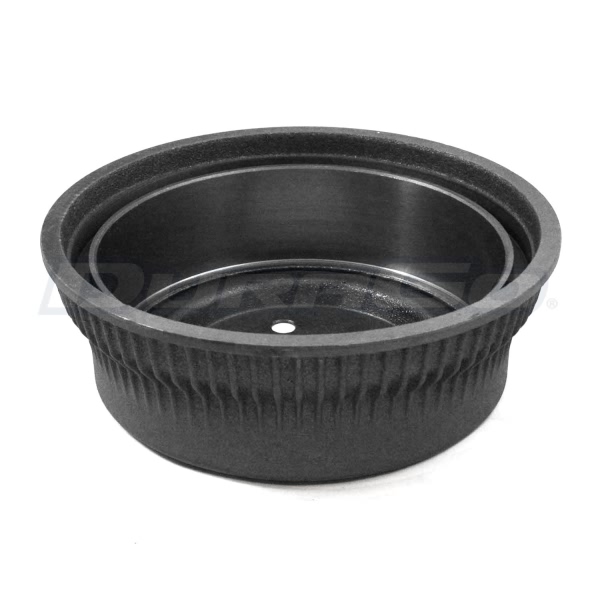

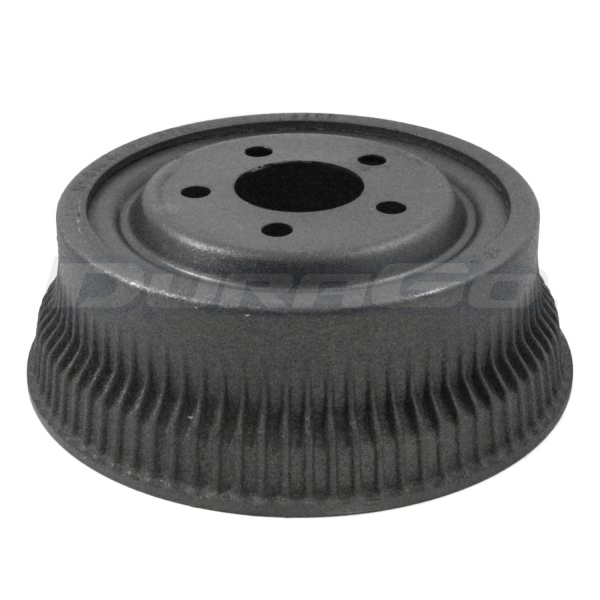

Part Description | Rear Brake Drum |
Abs Sensor Ring Includes | No |
Bolt Circle Diameter | 114.3mm (4.5") |
Bolt Hole Diameter | 16.6mm (0.65") |
Bolt Hole Quantity | 5 |
Brake Surface Width | 74mm (2.91") |
Center Hole Diameter | 72mm (2.83") |
Construction | Composite |
Drum Type | Floating |
Height | 111.4mm (4.39") |
Maximum Diameter | 256.3mm (10.09") |
Nominal Diameter | 254.0mm (10") |
Outside Diameter | 319.6mm (12.58") |
Type | Finned Cooling Fins |
UPC | 756632100686 |
Year Make Model | Trim | Engine |
---|---|---|
1977-1983 Chrysler Cordoba | All Trims | All Engines |
1983-1989 Chrysler Fifth Avenue | All Trims | All Engines |
1982-1983 Chrysler Imperial | All Trims | All Engines |
1977-1981 Chrysler LeBaron | All Trims | All Engines |
1979-1982 Chrysler New Yorker | All Trims | All Engines |
1979-1981 Chrysler Newport | All Trims | All Engines |
1977-1981 Chrysler Town & Country | All Trims | All Engines |
1976-1980 Dodge Aspen | All Trims | All Engines |
1980 Dodge B100 | All Trims | All Engines |
1971-1973 Dodge B100 Van | All Trims | All Engines |
