Vehicle Specific
Check if it fits by entering your vehicle infoBrand | DuraGo |
Part Number | BD8860 |

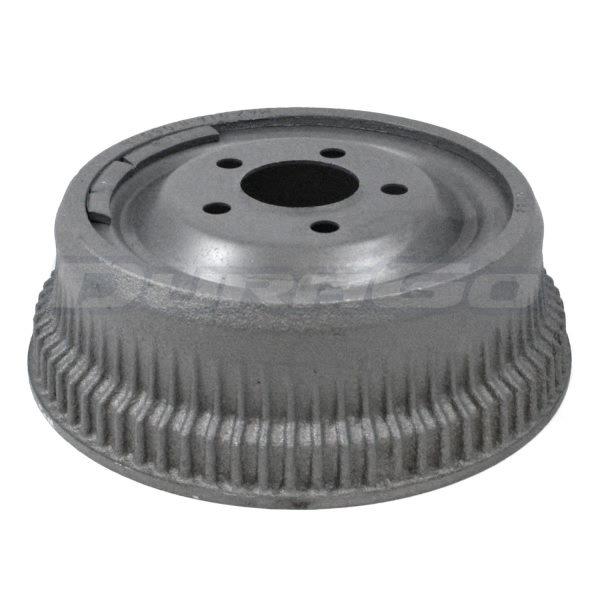

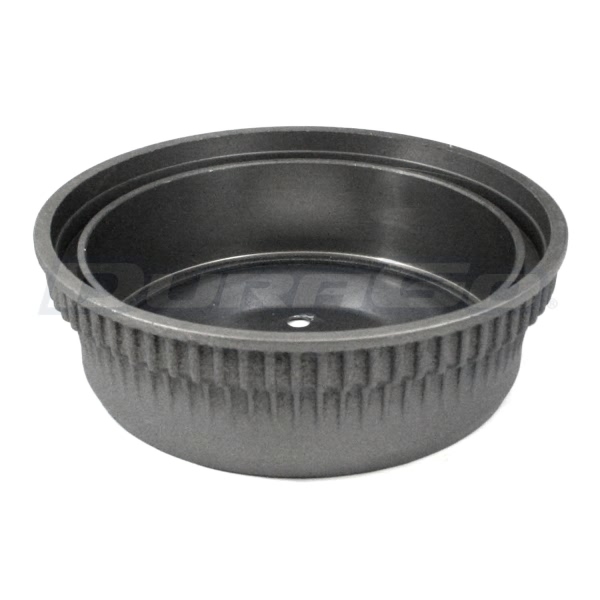

Part Description | Rear Brake Drum |
Abs Sensor Ring Includes | No |
Bolt Circle Diameter | 114.3mm (4.5") |
Bolt Hole Diameter | 16.4mm (0.65") |
Bolt Hole Quantity | 5 |
Brake Surface Width | 74.4mm (2.93") |
Center Hole Diameter | 72mm (2.83") |
Construction | Composite |
Drum Type | Floating |
Height | 112.8mm (4.44") |
Maximum Diameter | 281.69mm (11.09") |
Nominal Diameter | 279.4mm (11") |
Outside Diameter | 344.4mm (13.56") |
Type | Finned Cooling Fins |
UPC | 756632100624 |
Year Make Model | Trim | Engine |
---|---|---|
1965-1971 Chrysler 300 | All Trims | All Engines |
1975-1983 Chrysler Cordoba | All Trims | All Engines |
1983-1989 Chrysler Fifth Avenue | All Trims | All Engines |
1981-1983 Chrysler Imperial | All Trims | All Engines |
1980-1981 Chrysler LeBaron | All Trims | All Engines |
1969-1982 Chrysler New Yorker | All Trims | All Engines |
1969-1981 Chrysler Newport | All Trims | All Engines |
1972-1978 Chrysler Town & Country | All Trims | All Engines |
1992-1995 Chrysler Town & Country | All Trims | All Engines |
1976-1980 Dodge Aspen | All Trims | All Engines |
