Vehicle Specific
Check if it fits by entering your vehicle infoBrand | DuraGo |
Part Number | BD8851 |

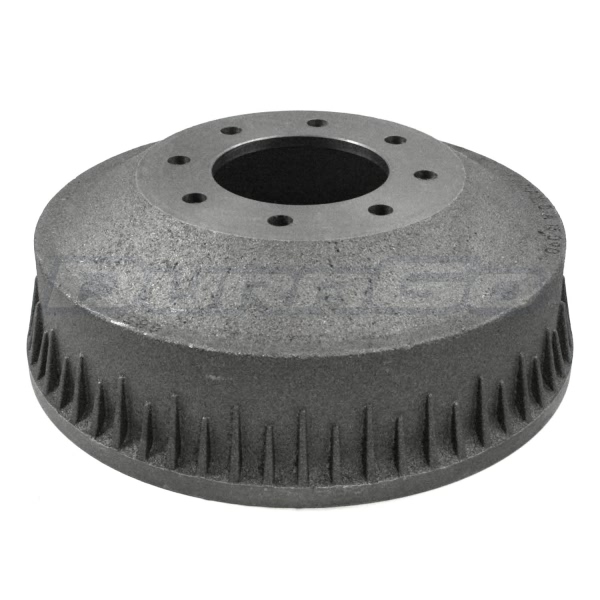

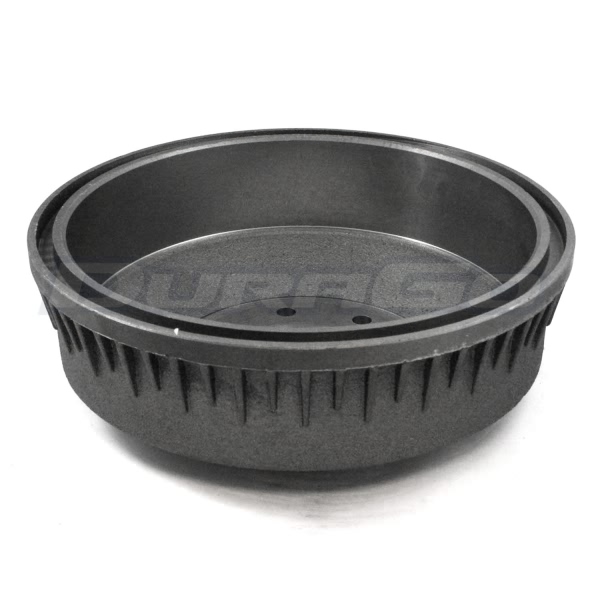

Part Description | Rear Brake Drum |
Abs Sensor Ring Includes | No |
Bolt Circle Diameter | 165.1mm (6.5") |
Bolt Hole Diameter | 15.6mm (0.61") |
Bolt Hole Quantity | 8 |
Brake Surface Width | 91.3mm (3.59") |
Center Hole Diameter | 116.9mm (4.60") |
Construction | Full Cast |
Drum Type | Behind the Hub |
Height | 142mm (5.59") |
Maximum Diameter | 332.49mm (13.09") |
Nominal Diameter | 329mm (12.95") |
Outside Diameter | 389mm (15.31") |
Type | Finned Cooling Fins |
UPC | 756632100617 |
Year Make Model | Trim | Engine |
---|---|---|
1975-1986 Chevrolet C20 | All Trims | All Engines |
1973-1974 Chevrolet C20 Pickup | All Trims | All Engines |
1973-1986 Chevrolet C20 Suburban | All Trims | All Engines |
1992-2000 Chevrolet C2500 | All Trims | All Engines |
1992-1996 Chevrolet C2500 Suburban | All Trims | All Engines |
1975-1980 Chevrolet C30 | All Trims | All Engines |
1974 Chevrolet C30 Pickup | All Trims | All Engines |
1990-1996 Chevrolet C3500 | All Trims | All Engines |
1975 Chevrolet G30 | All Trims | All Engines |
1981-1982 Chevrolet G30 | All Trims | All Engines |
