Vehicle Specific
Check if it fits by entering your vehicle infoBrand | DuraGo |
Part Number | BD8850 |

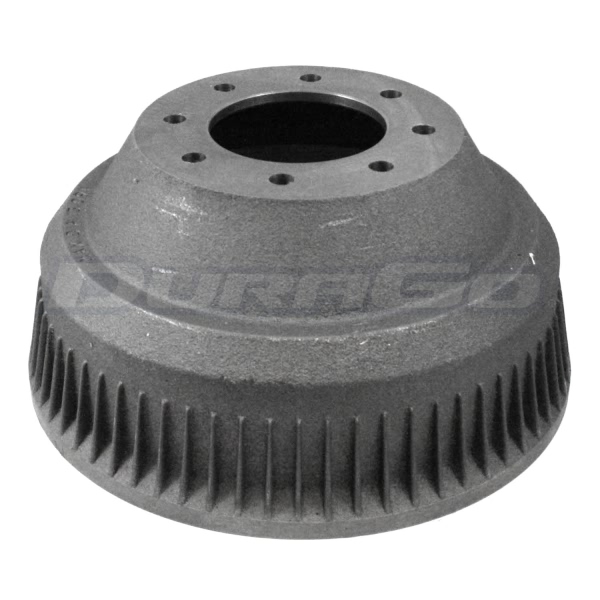

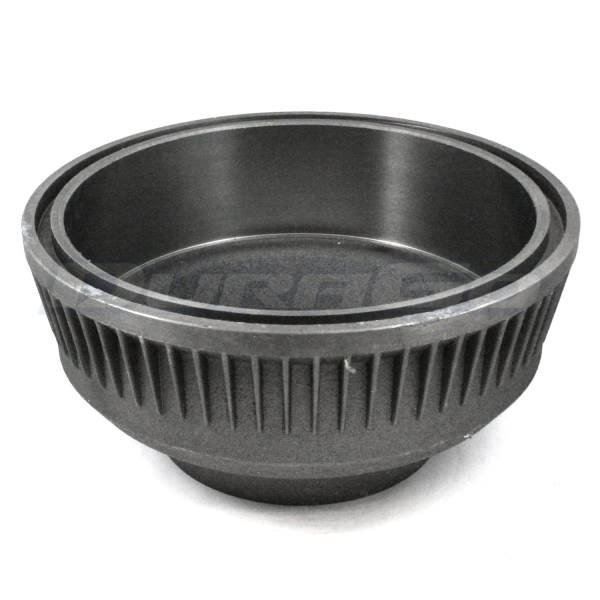

Part Description | Rear Brake Drum |
Abs Sensor Ring Includes | No |
Bolt Circle Diameter | 165.1mm (6.5") |
Bolt Hole Diameter | 15.5mm (0.61") |
Bolt Hole Quantity | 8 |
Brake Surface Width | 102.1mm (4.02") |
Center Hole Diameter | 116.9mm (4.60") |
Construction | Full Cast |
Drum Type | Floating |
Height | 185.8mm (7.31") |
Maximum Diameter | 332.49mm (13.09") |
Nominal Diameter | 330.2mm (13") |
Outside Diameter | 389mm (15.31") |
Type | Finned Cooling Fins |
UPC | 756632110647 |
Year Make Model | Trim | Engine |
---|---|---|
1975-1986 Chevrolet C30 | All Trims | All Engines |
1974 Chevrolet C30 Pickup | All Trims | All Engines |
1988-1989 Chevrolet C3500 | All Trims | All Engines |
1975-1991 Chevrolet G30 | All Trims | All Engines |
1974 Chevrolet G30 Van | All Trims | All Engines |
1977-1986 Chevrolet K30 | All Trims | All Engines |
1988-1989 Chevrolet K3500 | All Trims | All Engines |
1975-1989 Chevrolet P30 | All Trims | All Engines |
1974 Chevrolet P30 Van | All Trims | All Engines |
1987-1988 Chevrolet R30 | All Trims | All Engines |
