Vehicle Specific
Check if it fits by entering your vehicle infoBrand | DuraGo |
Part Number | BD8847 |

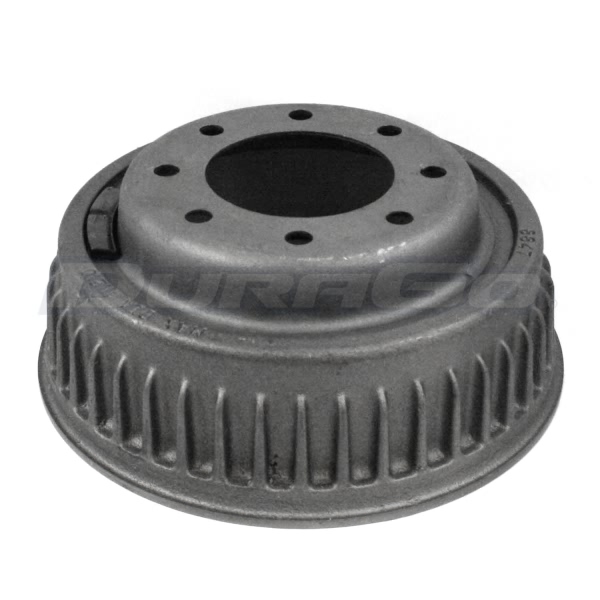

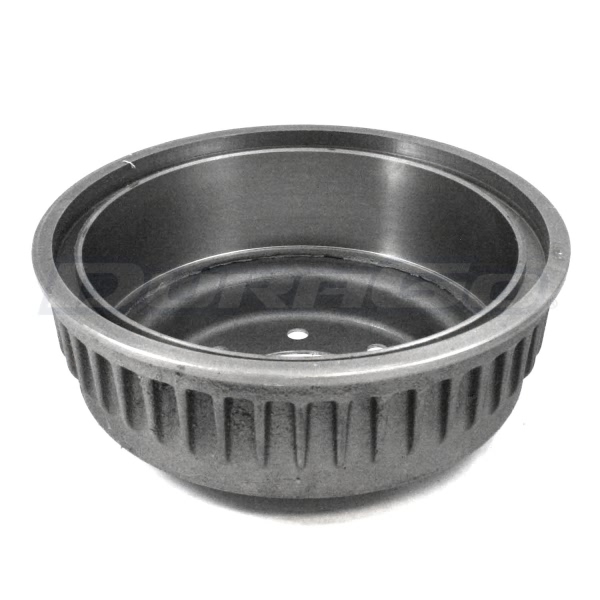

Part Description | Rear Brake Drum |
Abs Sensor Ring Includes | No |
Bolt Circle Diameter | 165.1mm (6.5") |
Bolt Hole Diameter | 16mm (0.63") |
Bolt Hole Quantity | 8 |
Brake Surface Width | 81.8mm (3.22") |
Center Hole Diameter | 116.9mm (4.60") |
Construction | Composite |
Drum Type | Floating |
Height | 135.5mm (5.33") |
Maximum Diameter | 284.73mm (11.21") |
Nominal Diameter | 283.3mm (11.15") |
Outside Diameter | 348mm (13.70") |
Type | Finned Cooling Fins |
UPC | 756632105575 |
Year Make Model | Trim | Engine |
---|---|---|
1975-1980 Chevrolet C20 | All Trims | All Engines |
1973-1974 Chevrolet C20 Pickup | All Trims | All Engines |
1973-1980 Chevrolet C20 Suburban | All Trims | All Engines |
1976-1980 Chevrolet G30 | All Trims | All Engines |
1975-1980 Chevrolet K20 | All Trims | All Engines |
1972-1974 Chevrolet K20 Pickup | All Trims | All Engines |
1972-1980 Chevrolet K20 Suburban | All Trims | All Engines |
1975-1980 Chevrolet P20 | All Trims | All Engines |
1974 Chevrolet P20 Van | All Trims | All Engines |
1975-1978 GMC C25 | All Trims | All Engines |
