Vehicle Specific
Check if it fits by entering your vehicle infoBrand | DuraGo |
Part Number | BD8846 |

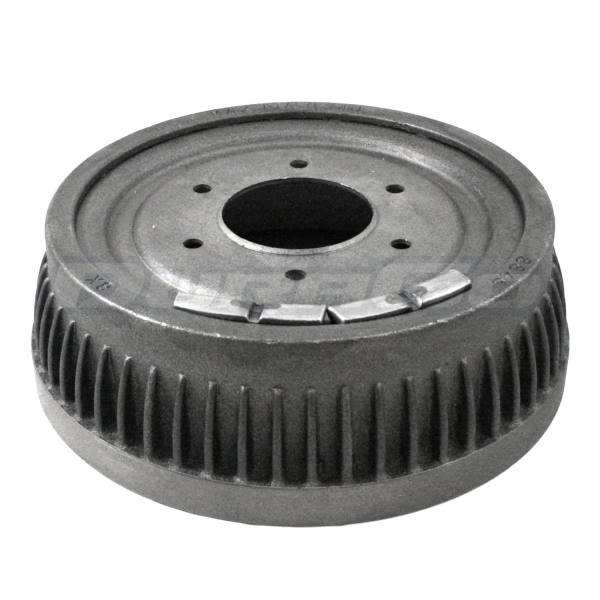

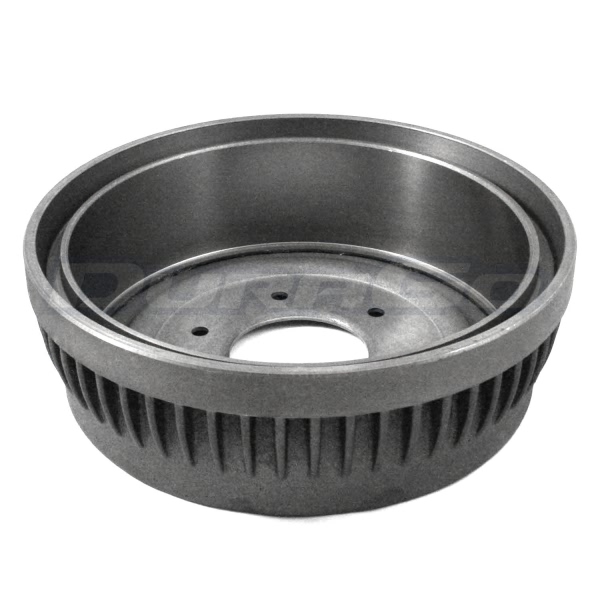

Part Description | Rear Brake Drum |
Abs Sensor Ring Includes | No |
Bolt Circle Diameter | 139.7mm (5.5") |
Bolt Hole Diameter | 11.5mm (0.45") |
Bolt Hole Quantity | 6 |
Brake Surface Width | 82mm (3.23") |
Center Hole Diameter | 90.5mm (3.56") |
Construction | Composite |
Drum Type | Floating |
Height | 109.8mm (4.32") |
Maximum Diameter | 285.5mm (11.24") |
Nominal Diameter | 283.3mm (11.15") |
Outside Diameter | 339mm (13.35") |
Type | Finned Cooling Fins |
UPC | 756632100600 |
Year Make Model | Trim | Engine |
---|---|---|
1975-1986 Chevrolet K10 | All Trims | All Engines |
1974 Chevrolet K10 Pickup | All Trims | All Engines |
1974-1986 Chevrolet K10 Suburban | All Trims | All Engines |
1976-1984 Chevrolet K5 Blazer | All Trims | All Engines |
1987 Chevrolet V10 | All Trims | All Engines |
1987-1988 Chevrolet V10 Suburban | All Trims | All Engines |
1989 Chevrolet V1500 Suburban | All Trims | All Engines |
1975-1978 GMC K15 | All Trims | All Engines |
1975-1978 GMC K15 Suburban | All Trims | All Engines |
1974 GMC K15/K1500 Pickup | All Trims | All Engines |
