Vehicle Specific
Check if it fits by entering your vehicle infoBrand | DuraGo |
Part Number | BD8838 |

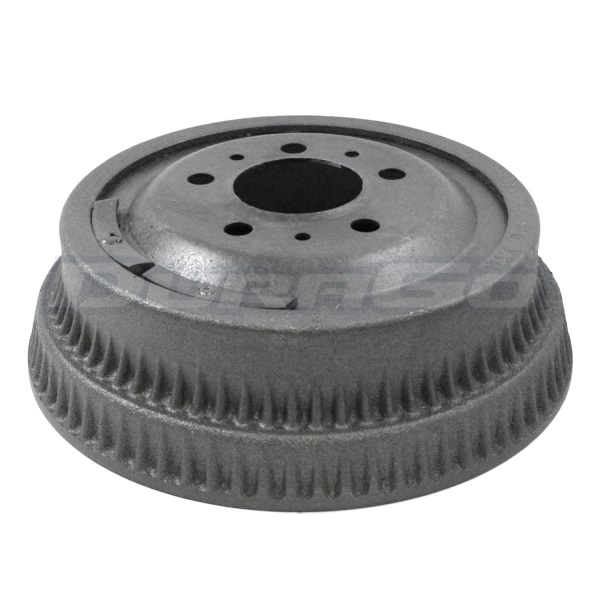

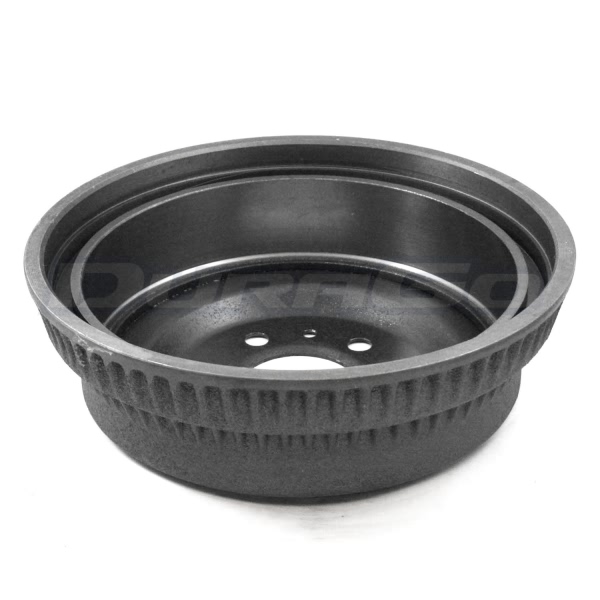

Part Description | Rear Brake Drum |
Abs Sensor Ring Includes | No |
Bolt Circle Diameter | 114.3mm (4.5") |
Bolt Hole Diameter | 15.5mm (0.61") |
Bolt Hole Quantity | 5 |
Brake Surface Width | 56.3mm (2.22") |
Center Hole Diameter | 72.3mm (2.85") |
Construction | Composite |
Drum Type | Floating |
Height | 104.2mm (4.10") |
Maximum Diameter | 255.5mm (10.06") |
Nominal Diameter | 254mm (10") |
Outside Diameter | 319.2mm (12.57") |
Type | Finned Cooling Fins |
UPC | 756632100587 |
Year Make Model | Trim | Engine |
---|---|---|
1978-1980 American Motors AMX | All Trims | All Engines |
1971-1974 American Motors Ambassador | All Trims | All Engines |
1978-1979 American Motors Concord | All Trims | All Engines |
1977-1978 American Motors Gremlin | All Trims | All Engines |
1973-1977 American Motors Hornet | All Trims | All Engines |
1971-1973 American Motors Matador | All Trims | All Engines |
1975-1976 American Motors Matador | All Trims | All Engines |
1976-1980 American Motors Pacer | All Trims | All Engines |
1979 American Motors Spirit | All Trims | All Engines |
1984-1989 Jeep Cherokee | All Trims | All Engines |
