Vehicle Specific
Check if it fits by entering your vehicle infoBrand | DuraGo |
Part Number | BD8819 |

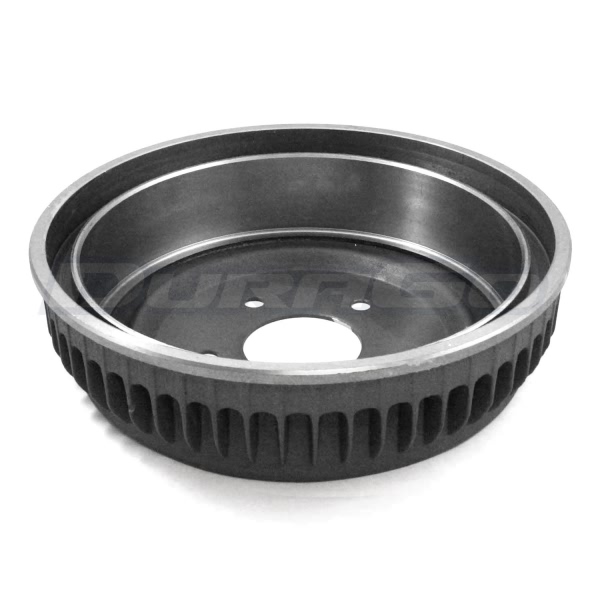

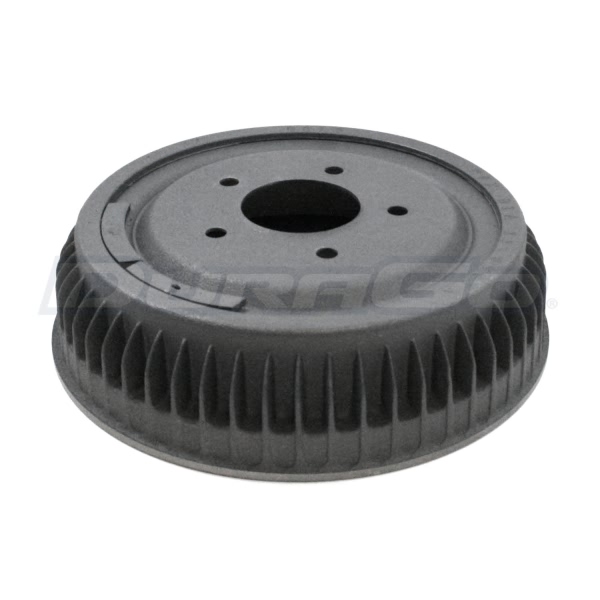

Part Description | Rear Brake Drum |
Abs Sensor Ring Includes | No |
Bolt Circle Diameter | 127mm (5") |
Bolt Hole Diameter | 13.5mm (0.53") |
Bolt Hole Quantity | 5 |
Brake Surface Width | 62.7mm (2.47") |
Center Hole Diameter | 78.7mm (3.10") |
Construction | Composite |
Drum Type | Floating |
Height | 92.3mm (3.63") |
Maximum Diameter | 281.69mm (11.09") |
Nominal Diameter | 279.4mm (11") |
Outside Diameter | 339.5mm (13.37") |
Type | Finned Cooling Fins |
UPC | 756632100556 |
Year Make Model | Trim | Engine |
---|---|---|
1971-1974 Chevrolet Blazer | All Trims | All Engines |
1975-1986 Chevrolet C10 | All Trims | All Engines |
1971-1974 Chevrolet C10 Pickup | All Trims | All Engines |
1971-1975 Chevrolet C10 Suburban | All Trims | All Engines |
1975-1989 Chevrolet G10 | All Trims | All Engines |
1967-1973 Chevrolet G20 Van | All Trims | All Engines |
1975-1984 Chevrolet K5 Blazer | All Trims | All Engines |
1971-1974 Chevrolet P10 Van | All Trims | All Engines |
1987 Chevrolet R10 | All Trims | All Engines |
1975-1978 GMC C15 | All Trims | All Engines |
