Vehicle Specific
Check if it fits by entering your vehicle infoBrand | DuraGo |
Part Number | BD8798 |

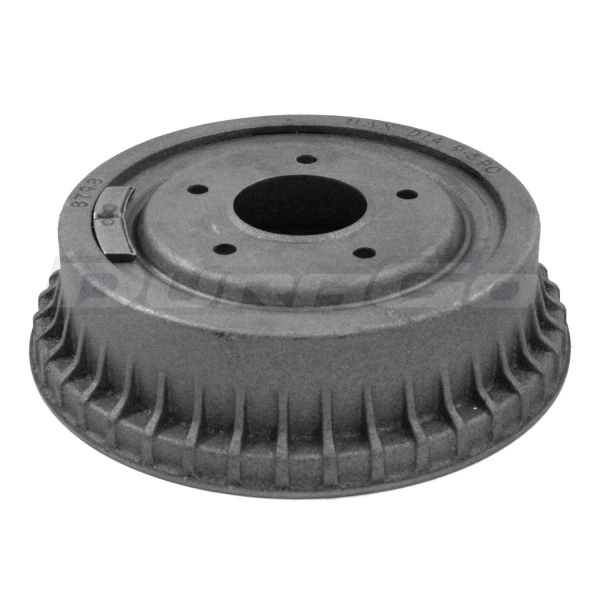

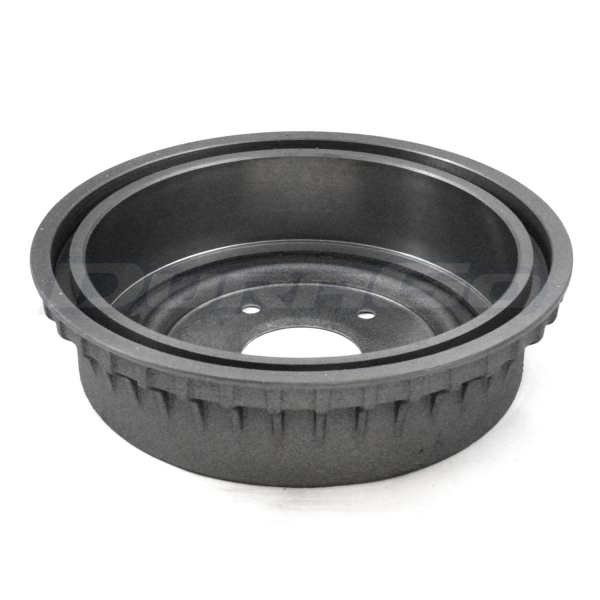

Part Description | Rear Brake Drum |
Abs Sensor Ring Includes | No |
Bolt Circle Diameter | 120.65mm (4.75") |
Bolt Hole Diameter | 11.6mm (0.46") |
Bolt Hole Quantity | 5 |
Brake Surface Width | 61.3mm (2.41") |
Center Hole Diameter | 71.6mm (2.82") |
Construction | Composite |
Drum Type | Floating |
Height | 79mm (3.11") |
Maximum Diameter | 243.59mm (9.59") |
Nominal Diameter | 241.3mm (9.5") |
Outside Diameter | 301.7mm (11.88") |
Type | Finned Cooling Fins |
UPC | 756632105551 |
Year Make Model | Trim | Engine |
---|---|---|
1973-1974 Buick Apollo | All Trims | All Engines |
1975 Buick Skylark | All Trims | All Engines |
1967-1974 Chevrolet Camaro | All Trims | All Engines |
1964 Chevrolet Chevelle | All Trims | All Engines |
1965-1967 Chevrolet Chevelle | Base | All Engines |
1965-1967 Chevrolet Chevelle | Deluxe | All Engines |
1967 Chevrolet Chevelle | Concours | All Engines |
1967-1969 Chevrolet Chevelle | All Trims | All Engines |
1970-1972 Chevrolet Chevelle | Base | All Engines |
1970-1972 Chevrolet Chevelle | Concours | All Engines |
