Vehicle Specific
Check if it fits by entering your vehicle infoBrand | DuraGo |
Part Number | BD8736 |

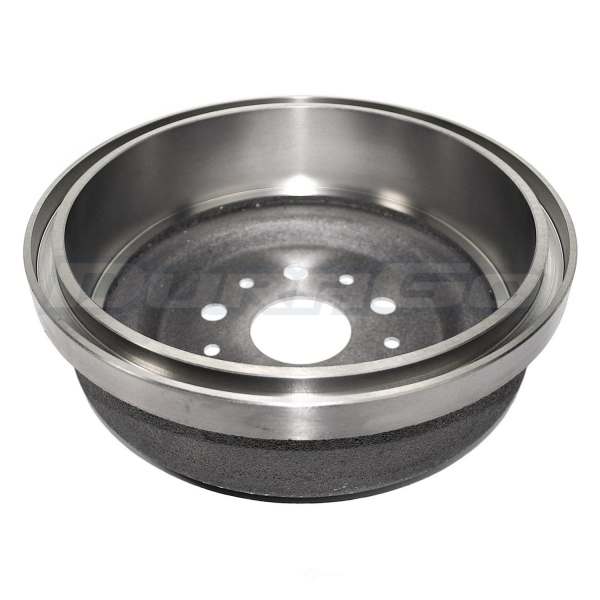

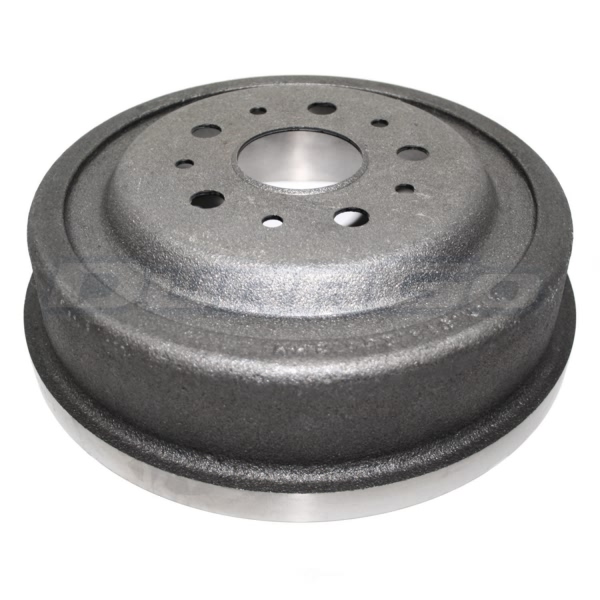

Part Description | Rear Brake Drum |
Abs Sensor Ring Includes | No |
Bolt Circle Diameter | 114.3mm (4.5") |
Bolt Hole Diameter | 15.5mm (0.61") |
Bolt Hole Quantity | 5 |
Brake Surface Width | 60.6mm (2.39") |
Center Hole Diameter | 61.8mm (2.43") |
Construction | Composite |
Drum Type | Floating |
Height | 89.8mm (3.54") |
Maximum Diameter | 256.29mm (10.09") |
Nominal Diameter | 254mm (10") |
Outside Diameter | 296.3mm (11.67") |
Type | Plain Cooling Fins |
UPC | 756632109955 |
Year Make Model | Trim | Engine |
---|---|---|
1969-1970 Ford Country Squire | All Trims | All Engines |
1963-1970 Ford Fairlane | All Trims | All Engines |
1967-1970 Ford Falcon | All Trims | All Engines |
1967-1973 Ford Mustang | All Trims | All Engines |
1966 Ford Ranchero | Base | All Engines |
1967-1971 Ford Ranchero | All Trims | All Engines |
1969-1971 Ford Torino | All Trims | All Engines |
1966-1967 Mercury Caliente | All Trims | All Engines |
1967 Mercury Caliente | All Trims | 8 Cyl 6.4L |
1966-1967 Mercury Comet | All Trims | All Engines |
